Free template · PDF
Free mini-split installation commissioning checklist
Free mini-split installation and commissioning checklist (PDF-ready). Covers refrigerant flare pressure test evacuation charge and performance.
Loading PDF page...
Read the form fields
30 checks · 6 sections · Sign-off
30 checks
The fields in the printable form, in a view that fits your screen.
- Site / project
- Asset ID / unit
- Installer (ARCTick #)
- Commissioning date
- Electrical licence #
Equipment & line set
Mounting & clearances
Pressure test & evacuation
Electrical supply
Condensate & airflow
Handover & defects
Declaration & Sign-Off
I confirm that all items have been inspected/completed as indicated above. Any defects or concerns have been noted and reported.
Completed By
Printed name · Signature · Date
Reviewed / Approved By
Printed name · Signature · Date

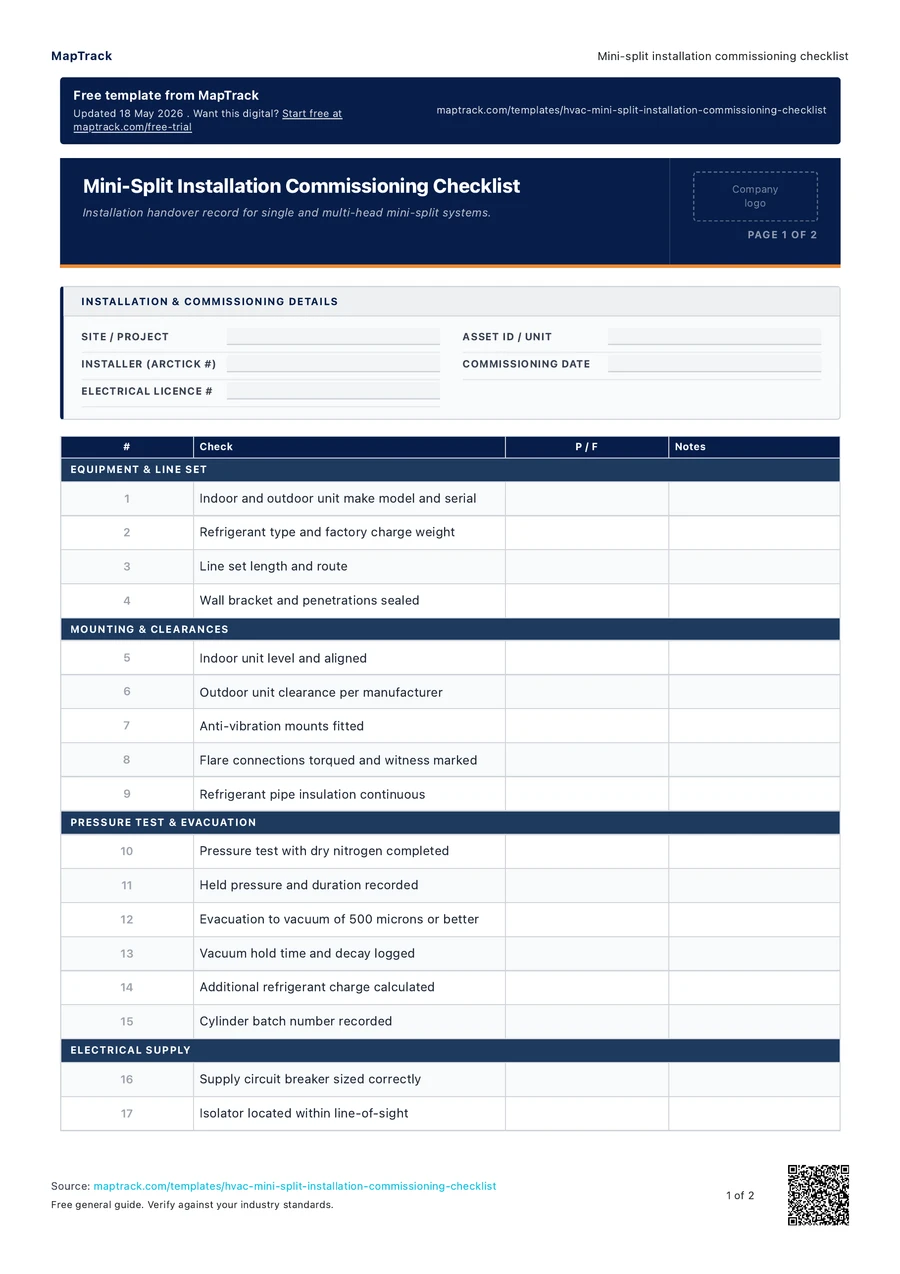

The MapTrack mini-split installation commissioning checklist contains 30 checks across 6 sections.
Co-Founder & Commercial Director
Make this form your own
Add your fields and logo. Give your team a form they can use on site.
Free 30-day trial. No credit card. Work email needed.
Upload & use this form now for free
“MapTrack beat them all in every aspect.”
Vincent Stone · HSEQ Advisor, Concept TanksAfter signup: upload this PDF, check the form MapTrack drafts, then save and publish it for your team.
General guidance only. Check the form against your equipment manual, site procedures and local requirements before using it.
Key takeaways
- The MapTrack mini-split installation commissioning checklist contains 30 checks across 6 sections. Sections covered: Equipment & line set, Mounting & clearances, Pressure test & evacuation, Electrical supply, Condensate & airflow, Handover & defects.
- Project and asset details: site unit location indoor and outdoor unit make model serial numbers and refrigerant type and factory charge
- Mechanical installation: indoor unit level outdoor unit clearance and orientation anti-vibration mounts wall bracket and conduit penetrations
- Refrigerant pipe and flare: line set length insulation continuity flare nut torque and witness markings and any extension brazing performed
What is a mini-split installation commissioning checklist?
A mini-split installation commissioning checklist is a structured handover form used by HVAC installers to verify that a single or multi-head mini-split air conditioning system has been installed and commissioned to manufacturer specification before handover to the building owner. The checklist documents the mechanical installation (indoor and outdoor unit mounting refrigerant line set flare connections drain) the refrigerant procedures (pressure test evacuation to deep vacuum additional charge if any) the electrical termination and the post-energise performance verification across heating and cooling modes. Each step is signed and dated so the installer can demonstrate the manufacturer warranty conditions were satisfied at handover.
In Australia mini-split installation falls under AS/NZS 5149 (refrigerating systems and heat pumps safety and environmental requirements) and AS/NZS 3823 (performance of electrical appliances and air conditioners). Any refrigerant work requires an ARCTick licence under the Ozone Protection and Synthetic Greenhouse Gas Management Act 1989 and the electrical termination must be carried out by a licensed electrical worker under state legislation. ASHRAE 90.1 also informs commissioning energy performance criteria for projects targeting NABERS or Green Star ratings. A complete commissioning record is increasingly required by manufacturers as a warranty precondition and is the evidence that the installer relies on if a defect dispute arises during the warranty period. MapTrack helps installers retain commissioning records digitally against each unit asset so the handover documentation survives staff and contractor turnover.
Learn more about maintenance and work orders in MapTrack.
Choose the format that fits your team
Download the PDF
Use the original printable form for a paper workflow. Check it against your equipment and site procedure before the job.
Keep completed copies in your own record system and arrange any follow-up through your normal process.
Download free PDFCustomise a form in MapTrack
Start a free trial, upload this PDF and MapTrack drafts the form. Adjust it to your workflow, then save and publish it for your team to use.
Sample answers on this page and completed PDF records aren't imported automatically.
Upload & use this form now for freeFree 30-day trial. No credit card. Work email needed.
Benefits of using this mini-split installation commissioning checklist
- Warranty validation: most manufacturers require a signed commissioning record with pressure test evacuation and refrigerant readings before they honour compressor warranty claims during the first five years
- Refrigerant compliance: documents the ARCTick licence number system pressure test result micron-level evacuation reading and any additional charge so installation meets AS/NZS 5149 obligations
- Defect prevention: systematic verification of flare connections line set insulation drainage fall and electrical termination catches the install errors that cause the majority of first-year mini-split callouts
- Energy performance: confirms supply air temperature and capacity delivery in both heating and cooling modes match manufacturer specification before the building owner accepts handover
- Tenant protection: post-energise sound level checks and condensate flow verification reduce the comfort and water-damage complaints that consume installer time during the defects liability period
- Handover documentation: a complete signed checklist with photographs and readings is the audit-ready evidence relied upon during warranty claims insurance reviews and end-of-defects-period inspections
What to include in a mini-split installation commissioning checklist
- Project and asset details: site unit location indoor and outdoor unit make model serial numbers and refrigerant type and factory charge
- Mechanical installation: indoor unit level outdoor unit clearance and orientation anti-vibration mounts wall bracket and conduit penetrations
- Refrigerant pipe and flare: line set length insulation continuity flare nut torque and witness markings and any extension brazing performed
- Pressure test: dry nitrogen pressure test to AS/NZS 5149 with held pressure duration and ambient temperature recorded
- Evacuation: vacuum gauge reading in microns hold time and any decay observed before refrigerant release
- Refrigerant charge: factory charge plus any additional charge calculated against line length with kilograms added and cylinder batch number
- Electrical termination: supply circuit breaker isolator location cable size earth bond test polarity check and indoor outdoor inter-connect
- Drainage and condensate: condensate line fall primary and secondary drain (if specified) drain test by pouring water through the indoor unit
- Performance verification: supply air temperature in cooling and heating modes capacity check against nameplate and any IR scan of compressor and electrical connections
- Handover and sign-off: remote controller demonstration end-user warranty documentation installer ARCTick and electrical licence numbers and client acknowledgement
How to use this mini-split installation commissioning checklist
Complete mechanical installation and pre-energise checks
confirm the indoor unit is level the outdoor unit has the manufacturer-required clearance line set bracketing is correct and all flare connections have been torqued to the manufacturer specification and witness marked
Conduct the refrigerant pressure test
pressurise the line set with dry nitrogen to the manufacturer specification (typically the high-side design pressure) hold for the required duration and record the held pressure and any temperature-corrected pressure decay
Evacuate the system to deep vacuum
connect a calibrated micron gauge and vacuum pump evacuate to at least 500 microns isolate the pump and verify the vacuum holds for the required period without a rise that indicates a leak or trapped moisture
Release the factory charge and add any additional refrigerant
open the service valves to release the pre-charged refrigerant into the line set then calculate and add any additional charge required for line length above the manufacturer-supplied amount recording the kilograms added and cylinder batch number
Energise and verify electrical installation
switch on the supply circuit confirm correct supply voltage polarity and earth bond test the indoor outdoor inter-connect cable and verify the circuit breaker and isolator operate correctly under load
Run the system in cooling and heating
operate the unit in cooling mode and measure supply air temperature then switch to heating and repeat the measurement recording delta-T and capacity against the manufacturer specification across the full thermostat range
Demonstrate to the client and complete handover
pour water through the indoor unit to verify drainage demonstrate the remote controller functions hand over the warranty documentation and obtain the client signature on the commissioning checklist with the installer ARCTick and electrical licence numbers recorded
How often should you complete this checklist?
Mini-split commissioning is performed once at installation with the signed checklist retained for the life of the asset as warranty evidence. A re-commissioning is typically required after any major refrigerant work (recovery recharge or compressor replacement) relocation of the indoor or outdoor unit or any electrical alteration that affects the supply circuit or controller wiring.
In Australia AS/NZS 5149 requires refrigerant systems to be pressure tested and evacuated before charging and AS/NZS 3823 sets performance criteria that commissioning verifies. Manufacturer warranty conditions often require recommissioning if the unit is subsequently moved or significantly serviced. MapTrack retains the commissioning record digitally against each asset for the life of the system so warranty claims and defect investigations have full evidence.
Make this form your own
From your template to your team.
Upload this PDF and MapTrack drafts the form. Adjust it for your equipment and site, then save and publish the digital form for your team.
- 01
Start your free trial
Use your work email to create your MapTrack account.
- 02
Customise, save and publish
Adjust the template fields and branding for your site.
- 03
Complete it on the job
Record checks, add photos and export a branded PDF.
Keep working offline
Load the form before you lose reception. Complete it offline and sync when you're back online.
Scan the asset. Open its form.
Use an asset's QR code to find and complete the forms that belong to it.
Show what you found
Capture photos and attach files so the next person has the details they need.
Take a branded PDF with you
Download completed forms as PDF reports with your company logo.
Completed paper records aren't imported automatically.
Frequently asked questions
Practical answers about the form, record keeping and using MapTrack.
AS/NZS 5149 requires that refrigerating systems and heat pumps be designed installed and tested to control refrigerant leakage and ensure safe operation. For a mini-split this means flare connections must be torqued to the manufacturer specification the refrigerant pipe and line set must be pressure tested with dry nitrogen the system must be evacuated to a deep vacuum before refrigerant release and any refrigerant work must be carried out by an ARCTick licensed technician under the Ozone Protection and Synthetic Greenhouse Gas Management Act 1989. Commissioning documentation provides the evidence that these requirements were met.
Link to this answerMost mini-split manufacturers specify a vacuum of at least 500 microns measured with a calibrated micron gauge held for a defined period without significant rise. A vacuum that rises rapidly after the pump is isolated indicates either a leak in the line set or moisture remaining in the system. Both conditions require investigation and remedy before the refrigerant is released. Record the achieved vacuum the hold time and any rise observed on the commissioning checklist as warranty evidence.
Link to this answerManufacturers publish a base line length included in the factory charge (typically 5 to 7.5 metres) and a kilograms-per-metre additional charge rate for line lengths above that. Measure the total installed line length subtract the base length multiply the remainder by the manufacturer rate and add that quantity of refrigerant after the system is energised. Record the calculation the kilograms added and the cylinder batch number in the commissioning checklist so the running system charge is documented for future leak checks.
Link to this answerCommissioning requires an ARCTick refrigerant handling licence for any refrigerant work (pressure test evacuation charging leak detection) under the Ozone Protection and Synthetic Greenhouse Gas Management Act 1989. Electrical termination requires a state-issued electrical licence. In practice a single installer often holds both licences for residential and small commercial work. For larger commercial multi-head systems the commissioning agent may be a dedicated mechanical services contractor working alongside a licensed electrical worker. All qualifications must be recorded on the commissioning checklist.
Link to this answerYes for any significant work. Relocation of the indoor or outdoor unit requires a new pressure test evacuation and recharge because the line set has been disturbed. Compressor replacement or any work that opens the refrigerant circuit requires the same. Routine annual servicing that does not open the refrigerant circuit does not trigger a full recommissioning but the readings should be benchmarked against the original commissioning record. Manufacturers often condition warranty continuation on documented recommissioning after relocation or major refrigerant work.
Link to this answerApplicable regulatory standards
This form is a starting point. Check the current requirements that apply to your equipment, work and location. The form alone does not establish compliance.
- AS/NZS 5149
- AS/NZS 3823
- ASHRAE 90.1
- Ozone Protection and Synthetic Greenhouse Gas Management Act 1989
- WHS Act 2011
MapTrack publishes this template. The linked authorities publish their own guidance; they haven't endorsed this form.
The numbers behind this mini-split installation commissioning checklist
Every figure below is sourced and dated, so you can quote it in a toolbox talk, a budget case or a board paper without having to chase the original report.
Cite this template
Writing about this topic? You’re welcome to quote this checklist. Here’s the wording to use so your readers can find the original.
The MapTrack mini-split installation commissioning checklist contains 30 checks across 6 sections.
- Short attribution
- MapTrack Mini-split installation commissioning checklist, https://www.maptrack.com/templates/hvac-mini-split-installation-commissioning-checklist
- Reference list
- MapTrack. (2026). Mini-split installation commissioning checklist [Checklist template]. Retrieved from https://www.maptrack.com/templates/hvac-mini-split-installation-commissioning-checklist
Free to reuse with credit under a Creative Commons Attribution 4.0 licence. If you’d rather link straight to it, the page is https://www.maptrack.com/templates/hvac-mini-split-installation-commissioning-checklist.
Embed this free template on your website
Run an industry blog, trade association site, or training resource? Drop a preview of this free mini-split installation commissioning checklist straight into your page. The snippet is self-contained, needs no scripts, and links readers back to the full free template.
<div style="max-width:480px;font-family:system-ui,-apple-system,'Segoe UI',Roboto,sans-serif;border:1px solid #E5E7EB;border-radius:12px;padding:20px;background:#ffffff;">
<p style="font-size:12px;font-weight:700;letter-spacing:0.05em;text-transform:uppercase;color:#071D49;margin:0;">Free template</p>
<p style="font-size:18px;font-weight:700;color:#071D49;margin:6px 0 0;">Mini-split installation commissioning checklist</p>
<ul style="margin:12px 0 0;padding-left:18px;color:#374151;font-size:14px;line-height:1.6;">
<li style="margin:4px 0;">Project and asset details: site unit location indoor and outdoor unit make model serial numbers and refrigerant type and factory charge</li>
<li style="margin:4px 0;">Mechanical installation: indoor unit level outdoor unit clearance and orientation anti-vibration mounts wall bracket and conduit penetrations</li>
<li style="margin:4px 0;">Refrigerant pipe and flare: line set length insulation continuity flare nut torque and witness markings and any extension brazing performed</li>
<li style="margin:4px 0;">Pressure test: dry nitrogen pressure test to AS/NZS 5149 with held pressure duration and ambient temperature recorded</li>
<li style="margin:4px 0;">Evacuation: vacuum gauge reading in microns hold time and any decay observed before refrigerant release</li>
<li style="margin:4px 0;">Refrigerant charge: factory charge plus any additional charge calculated against line length with kilograms added and cylinder batch number</li>
</ul>
<p style="font-size:13px;color:#6B7280;margin:14px 0 0;padding-top:12px;border-top:1px solid #E5E7EB;">Free <a href="https://www.maptrack.com/templates/hvac-mini-split-installation-commissioning-checklist" style="color:#071D49;font-weight:600;text-decoration:none;">Mini-split installation commissioning checklist</a> by MapTrack</p>
</div>Free to reuse, including commercially. This template is published under a Creative Commons Attribution 4.0 licence. Copy it, adapt it, put it on your own site or in your own docs. All we ask is that you credit MapTrack with a link back to this page. The snippet above already includes that credit, so if you use it as-is you’re covered.
About the author
Co-Founder & Commercial Director
Jarrod has spent over a decade in technology consulting and asset management, including roles at Accenture (mining and heavy industry) and CGI as an Asset Management Consultant. He co-founded MapTrack and built and scaled its original platform, then rebuilt it with Lachlan and Alex from thousands of customer conversations and 300+ user research sessions with field teams. His consulting background gives him deep insight into the operational and compliance challenges facing asset-intensive Australian businesses.
View LinkedIn profile →Ready for your next job?
Keep the PDF handy, or upload it to MapTrack and turn it into a digital form for your team.
