What is the difference between a fan coil unit and an air handling unit?

A fan coil unit is a smaller terminal device that conditions a single room apartment or zone using a finned coil supplied with chilled water or hot water from a central plant plus a small fan and filter. An air handling unit is a larger central device that conditions whole-floor or whole-building airstreams and typically includes mixing dampers multiple filter banks larger coils and a substantial supply fan. FCU servicing focuses on the condensate system control valves and individual zone comfort. AHU servicing focuses on bulk airflow filtration and ventilation rate delivery.

What Australian standards apply to fan coil unit maintenance?

AS/NZS 1668.2 covers mechanical ventilation for acceptable indoor air quality including FCU maintenance considerations. AS/NZS 3666 sets requirements for air-handling and water systems including the secondary chilled water loop and Legionella risk management. The Work Health and Safety Act 2011 requires the PCBU to maintain plant so it remains safe for workers and occupants. AS 1851 covers any fire-rated components such as fire dampers in the FCU return air path.

How often should FCU drain pans be flushed?

Drain pans should be flushed and biocide treated at every routine service typically every six months. In humid climates on the ground floor of high-rise buildings or where ceiling water damage has occurred previously a quarterly drain flush may be warranted. Stagnant condensate water in FCU drain pans is one of the most common sources of microbial growth and tenant odour complaints and a blocked drain quickly causes ceiling damage that triggers insurance claims. Record the flush and biocide treatment on the service checklist as evidence.

Do FCU technicians need a refrigerant licence?

Not for standard chilled water and hot water FCU servicing. Most commercial FCUs use a secondary water loop fed from a central chiller and the technician does not handle refrigerant directly. If the FCU is a direct expansion (DX) unit with its own refrigerant circuit then any refrigerant work requires an ARCTick licence under the Ozone Protection and Synthetic Greenhouse Gas Management Act 1989. Electrical isolation and rewiring at the FCU requires a state-issued electrical licence regardless of the water or refrigerant configuration.

Can a FCU service be split between facilities and HVAC contractor staff?

Yes. Routine filter changes drain pan flushing and visible inspection can be performed by trained in-house facilities staff under supervision with the chilled water valve testing motor amps BMS integration and any control valve replacement carried out by the HVAC contractor. Splitting the work reduces contractor cost without compromising the service standard provided both parties record their activity on the same digital checklist so the asset history is complete. MapTrack supports multi-party service contributions against a single asset record.

Free fan coil unit service checklist

Jump to download form ↓

Enter your email below to download this fan coil unit service checklist as a ready-to-use PDF.

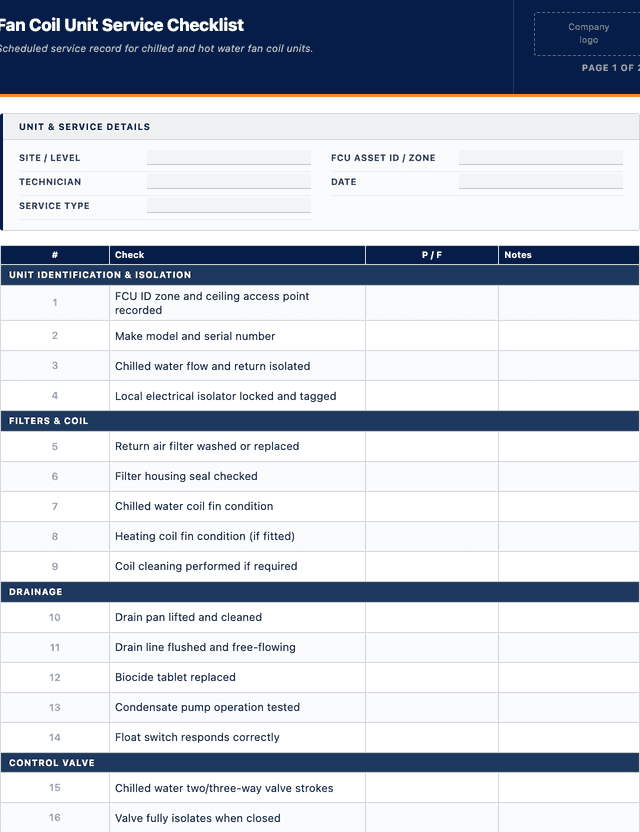

Free fan coil unit service checklist (PDF-ready). Covers chilled water valves coil condensate motor and controls for FCU maintenance in HVAC.
