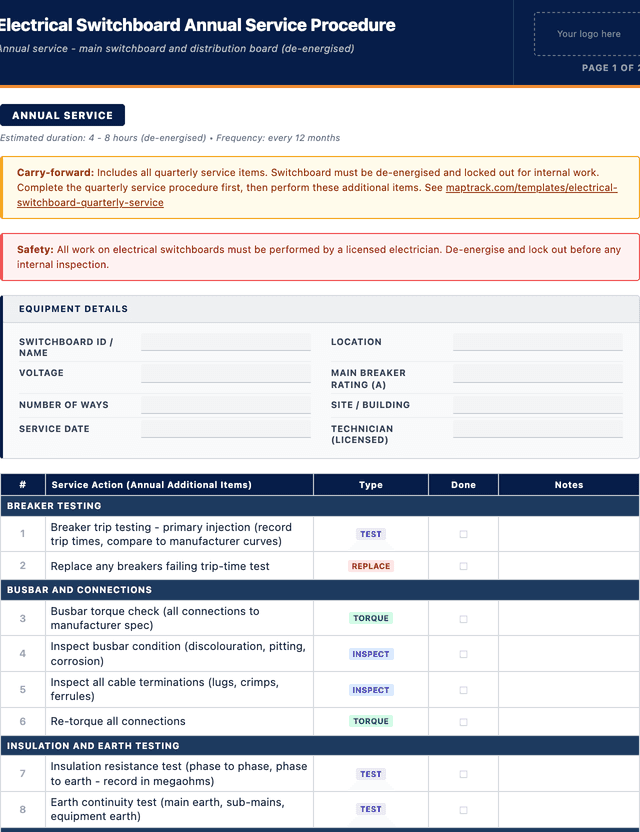

See the first part of the electrical switchboard annual service procedure below. Download the full version above.
What is a electrical switchboard annual service procedure?
An annual switchboard service is a comprehensive preventive maintenance procedure that includes all quarterly service tasks plus detailed testing that requires the switchboard to be de-energised and locked out. The annual service adds breaker trip testing with primary injection to verify each breaker trips within manufacturer specifications, busbar torque checks to manufacturer values, insulation resistance testing between phases and to earth, earth continuity testing across the installation, arc flash assessment review, internal cleaning, detailed inspection of busbars, cable terminations and surge protection devices, and a full compliance audit against AS/NZS 3000 (Wiring Rules). All work must be performed by a licensed electrician and the switchboard must be de-energised and isolated before internal work begins.
Switchboard failures are a leading cause of electrical fires in commercial and industrial buildings. Loose connections, degraded insulation and untested breakers can remain undetected for years under normal operating conditions, only to fail catastrophically during a fault event when protection is most needed. In Australia, the WHS Regulations 2011 require that electrical plant be maintained in a safe condition, and AS/NZS 3000 sets the technical standards that switchboard installations must meet throughout their service life. Many state and territory electrical safety regulations and insurance policies mandate annual switchboard testing by a licensed electrician as a condition of compliance and cover. The annual service generates the quantitative test data, including breaker trip times, insulation resistance readings and busbar torque records, that demonstrates the switchboard's fitness for continued service and provides the documentation trail reviewed by regulators, insurers and fire safety auditors.
Learn more about maintenance and work orders in MapTrack.
Benefits of using this electrical switchboard annual service procedure
- Verified protection: breaker trip testing confirms that circuit breakers will actually protect downstream equipment during a fault.
- Insulation integrity: insulation resistance testing detects deteriorating insulation before it causes faults, fires or equipment damage.
- Connection reliability: torque checks prevent loose connections that cause hotspots, arcing and fire.
- Earth safety: earth continuity testing verifies that fault currents have a safe path to earth, protecting personnel.
- Regulatory compliance: a documented annual service with AS/NZS 3000 compliance audit satisfies regulatory and insurance requirements.
- Trend analysis: comparing annual test results to previous years identifies deteriorating components before they fail.
Benefits of digitising forms in MapTrack
When you digitise electrical switchboard service procedures in MapTrack, you get:
- Field users can easily scan a QR code to complete a form on mobile. Unlimited users.
- Automatically get alerts when faults are identified.
- Link every form digitally as a PDF to the relevant asset, location or person.
- Receive a digital PDF copy with every submission to your email.
- Ability to share forms digitally.
- Build conditional logic (show or hide questions based on answers).
- Take pictures or attach photos. Not possible with a paper-based form.
- Electronic signatures.
- Edit forms later without reprinting.
- Restrict permissions (who can view, complete or approve).
- Build forms with AI (describe what you need and MapTrack suggests the form).
- Trigger work orders automatically when a fault is logged during an inspection.
- Track service intervals by hours, kilometres or calendar date in one place.
- Attach supplier invoices and parts receipts to each maintenance record.
Book a demo to see how MapTrack handles electrical switchboard service procedures.
Try MapTrack free for 30 days
Full access to every feature. No credit card required. Per-asset pricing so you scale as your fleet grows.
- No credit card required
- 30 days free trial
- Cancel anytime
What to include in a electrical switchboard annual service procedure
This electrical switchboard annual service procedure covers 7 key areas:
- Breaker testing: primary injection trip testing with recorded trip times; replace any breakers failing test.
- Busbar and connections: busbar torque check, busbar condition inspection, cable termination inspection, re-torque all connections.
- Insulation and earth testing: insulation resistance test (phase-phase, phase-earth in megaohms), earth continuity test.
- Arc flash and safety: arc flash assessment review, verify labels and PPE requirements.
- Cleaning and internals: clean switchboard internals with compressed air and vacuum (de-energised).
- Surge protection: inspect and replace surge protection devices if end-of-life.
- Compliance and documentation: AS/NZS 3000 compliance audit, update maintenance log, re-energise and verify all circuits.
How to use this electrical switchboard annual service procedure
- Complete the quarterly service procedure first (thermal imaging, RCD testing, visual inspections) while the switchboard is energised.: Use the quarterly service checklist to ensure all energised-state checks are completed and documented before proceeding to the de-energised annual tasks.
- Plan and schedule the shutdown. Notify all affected parties and confirm isolation procedures.: Issue a planned outage notice to all affected tenants, departments or operations at least 48 hours in advance. Confirm the isolation and re-energisation sequence with the building manager and any critical load operators.
- De-energise the switchboard and apply lockout/tagout. Verify isolation with a voltage tester.: Follow your site LOTO procedure. Use a proving unit to confirm the voltage tester is working, then test all phases to earth and phase to phase to verify the switchboard is dead. Apply personal locks and danger tags.
- Perform breaker trip testing with primary injection. Record trip times and compare to manufacturer curves. Flag any breakers outside specification for replacement.: Use a calibrated primary injection test set. Inject current at 100%, 200% and 500% of the breaker rating and record the trip time at each level. Compare results to the manufacturer protection curve. Replace any breaker that fails to trip within the specified time range.
- Torque-check all busbar connections to manufacturer specification. Inspect busbars for discolouration, pitting or corrosion.: Use a calibrated insulated torque wrench. Typical torque values range from 20 to 60 Nm depending on bolt size and busbar material. Look for rainbow discolouration or black marks around connections, which indicate historical overheating.
- Perform insulation resistance testing (phase to phase, phase to earth). Record results in megaohms. Perform earth continuity test.: Apply 500V or 1,000V DC with a calibrated megger. Record readings for each phase combination and each phase to earth. Minimum acceptable reading is typically 1 megaohm. Perform earth continuity testing with a low-resistance ohmmeter to verify the protective earth path.
- Review arc flash assessment labels and PPE requirements. Clean switchboard internals. Inspect cable terminations and surge protection devices.: Verify arc flash labels are current and legible. Clean all internal surfaces with compressed air and an insulated vacuum, taking care not to disturb wiring. Check surge protection device status indicators and replace any devices showing end-of-life.
- Complete AS/NZS 3000 compliance audit. Update the switchboard maintenance log.: Work through the AS/NZS 3000 compliance checklist covering conductor sizing, protection coordination, labelling, clearances and documentation. Record the audit outcome and any non-conformances requiring rectification.
- Re-energise the switchboard and verify all circuits. Record any defects or recommendations. Set next service due dates and sign off with licence number.: Follow the planned re-energisation sequence. Verify each circuit is live and loads are operating correctly. Record all test results, defects found and corrective actions in the maintenance log. Sign off with the licensed electrician licence number and date.
In MapTrack, you can schedule and track maintenance digitally. Each submission is stored as a timestamped PDF against the asset record.
Get the free template
Enter your email above to download the full electrical switchboard annual service procedure as a PDF.
Back to download formHow often should you complete this service procedure?
An annual switchboard service should be performed once every 12 months, coinciding with or following the fourth quarterly service. The annual service requires the switchboard to be de-energised and locked out, so it should be scheduled during a planned outage to minimise disruption. Critical switchboards in hospitals, data centres and essential services facilities may require more frequent testing or six-monthly breaker trip verification. Between annual services, quarterly inspections provide energised-state monitoring through thermal imaging and RCD testing. Switchboards in corrosive or high-humidity environments such as coastal buildings, swimming pool plant rooms or food processing facilities may benefit from a nine-monthly cycle to catch accelerated corrosion, insulation degradation or contact pitting before they reach failure point. In MapTrack, set up annual maintenance schedules with automatic reminders and track compliance status across all switchboards in your portfolio, ensuring no board is missed.
