Asset Criticality Matrix

0 of 5 rows started
#Asset IDDescriptionLocationFunction (single sentence)SEPQCLCritRecommended strategyOwnerReview date
e.g.EXC-102Excavator - 8 tonneDepot A---------S. Carter12/03/2024
1
2
3
4
5

The PDF includes all 12 numbered rows, ready to print or fill on screen.

How to use: download the PDF, print or complete digitally on any device.

  • PDF format, ready to print or fill on screen
  • Use as-is or customise to suit your operation
  • Go digital in MapTrack for photos, reminders and audit trails

Don't just download it - use it live. Start a free workspace, upload this asset criticality matrix template and MapTrack drafts it as a form your crew can run from a phone.

Jarrod Milford

Jarrod Milford

Co-Founder & Commercial Director

Updated 26 October 2026

Short answer

An asset criticality matrix scores each asset's consequence of failure across safety, environment, production, cost, quality and compliance, combines the highest score with likelihood, and assigns an A, B or C tier that sets its maintenance strategy and spares. Reliability teams build it once as a baseline and commonly review it annually. The matrix applies ISO 31000:2018 risk principles within an ISO 55001:2024 asset management system.

Checked against ISO 31000:2018 (Edition 2) on by the MapTrack templates team. How we check templates

Key takeaways

  • The MapTrack asset criticality matrix template has 14 columns and room for 12 entries. Columns: Asset ID, Description, Location, Function (single sentence), S, E, P, Q, C, L, Crit, Recommended strategy, Owner, Review date.
  • Take the highest consequence score across the dimensions, not the average: a single safety rating of 5 puts the asset in Tier A.
  • ISO 55001:2024 and ISO 31000:2018 set risk-based principles but name no ABC matrix; the matrix is one common way to apply them.
  • Re-rate an asset after a major incident, a design change, commissioning, or repeat failures that contradict its tier.
  • Run FMEA (IEC 60812:2018) on Tier A assets, where failure-mode detail justifies the engineering effort.
  • Record the rating scales and the reason for each tier, so the line from risk rating to maintenance task can be traced.

Enter your email below to download this asset criticality matrix template as a ready-to-use PDF.

Used by construction, mining and field service teams

Saunders InternationalMineral ResourcesSupagasHacer GroupMetro TunnelUltrabuilt

What is an asset criticality matrix template?

An asset criticality matrix is a structured ranking tool used by maintenance and reliability teams to classify every physical asset into criticality tiers (typically A, B and C) based on the consequence of failure and the likelihood that failure will occur. Each asset is scored across multiple consequence dimensions (safety, environment, production, cost, quality, compliance) on a 1 to 5 scale, and the maximum consequence rating is combined with a likelihood rating to produce an overall criticality score. The score determines which tier the asset falls into and which maintenance strategy is applied: condition-based monitoring and full preventive cover for Tier A, scheduled time-based maintenance for Tier B, and run-to-failure or minimal inspection for Tier C. The methodology aligns with ISO 55001 asset management requirements, EN 13306 maintenance terminology and the risk principles set out in ISO 31000, and it is the prerequisite step before any meaningful reliability programme, FMEA or PM optimisation exercise.

For maintenance managers, reliability engineers and operations directors, criticality classification is the single most important tool for justifying where to focus limited PM hours, condition monitoring spend, critical spares investment and engineering attention. Without it, every asset receives roughly equal effort, which means high-consequence equipment is under-maintained and low-consequence equipment is over-maintained. With it, the maintenance plan, the spares strategy, the inspection cadence and the staffing model all flow logically from a documented business risk decision. A completed matrix gives the maintenance team an evidence-based answer to the executive question "why are we spending money on this asset and not that one", and it gives auditors a clear line of sight from risk assessment to maintenance task to work order. Many teams who implement an asset criticality matrix for the first time find that a large share of their assets are Tier C and could safely move to a leaner maintenance strategy, freeing capacity for the smaller group of Tier A assets that drive most of the operational risk.

Learn more about maintenance and work orders in MapTrack.

Get the free template

Enter your email above to download the full asset criticality matrix template as a PDF.

Benefits of using this asset criticality matrix template

  • Focused maintenance effort: criticality scoring directs preventive maintenance hours, condition monitoring spend and engineering attention to the small number of assets that actually carry business risk.
  • Defensible budget decisions: a documented matrix gives maintenance managers an evidence-based answer when finance, operations or the executive challenge spending on inspections, spares or capital replacement.
  • Audit and standards alignment: the ABC classification approach is the structure auditors expect to see for ISO 55001, EN 13306 and ISO 31000, providing traceability from risk through to maintenance strategy.
  • Lower total cost of ownership: by moving Tier C assets to a leaner reactive strategy and concentrating proactive work on Tier A assets, organisations reduce total maintenance cost while improving uptime where it matters most.
  • Foundation for FMEA and RCM: criticality is the gating step that determines which assets warrant a full failure mode analysis, preventing teams from wasting engineering effort on low-value equipment.
  • Clearer accountability: every asset is assigned an owner, a tier, a maintenance strategy and a review date, which removes ambiguity about who is responsible for the reliability outcome.

Benefits of digitising forms in MapTrack

When you move your plans from paper to MapTrack, you get:

  • Field users can easily scan a QR code to complete a form on mobile. Unlimited users.
  • Email the right people when a form is submitted, with an automation you set up.
  • File every completed form against the asset, location or person it covers.
  • Download any completed form as a PDF, with failed answers listed at the top.
  • Fill in forms offline; they upload when the device is back online.
  • Build conditional logic (show or hide questions based on answers).
  • Take pictures or attach photos. Not possible with a paper-based form.
  • Electronic signatures.
  • Edit forms later without reprinting.
  • Set who can view, fill in or edit forms with user roles.
  • Upload a paper form (PDF, Word, Excel or a photo) and MapTrack's AI builds a digital version for you to check.
  • Raise a work order from a submitted form with an automation you set up.
  • Track service intervals by hours, kilometres or calendar date in one place.
  • Attach supplier invoices and parts receipts to each maintenance record.

Book a demo to see how MapTrack handles plans.

Try MapTrack free

Full access to every feature. No credit card required. Per-asset pricing so you scale as your fleet grows.

  • No credit card required

1-2 days/week saved

“Bloody amazing! We used to spend 1-2 days a week tracking and managing our generators alone.”
Saunders International

Steve McAllister

Asset Coordinator, Saunders International

What to include in an asset criticality matrix template

This asset criticality matrix template covers 8 key areas:

  • Asset register and scope: a complete list of assets in scope (asset ID, name, location, parent system, function) drawn from the CMMS, with the scope clearly defined by site, area, line or system boundary.
  • Consequence dimensions: the six consequence categories assessed for every asset (safety, environment, production, cost, quality, compliance) so a high-risk asset cannot be hidden by averaging across dimensions.
  • Consequence rating scales: a calibrated 1 to 5 scale for each consequence dimension with worded anchor points (fatality possible, lost-time injury, medical treatment, first aid, no injury) for consistent ratings.
  • Likelihood scale: a 1 to 5 likelihood scale with indicative frequencies (almost certain, likely, possible, unlikely, rare) based on historical failure data, MTBF, age and condition rather than gut feel.
  • Criticality thresholds: a documented matrix that converts maximum consequence and likelihood into a tier (A, B or C), so the classification rule is transparent, repeatable and not subject to individual interpretation.
  • Action triggers and maintenance strategy: the maintenance approach attached to each tier (CBM and full PM for A, scheduled PM for B, run-to-failure or minimal inspection for C) translating the matrix into the maintenance plan.
  • Review cadence and triggers: the scheduled review frequency (typically annual) plus event-based triggers that force an out-of-cycle review (major incident, design change, new asset commissioning, repeat failure).
  • Owner, approver and version control: a named asset owner and senior approver for each criticality decision, plus revision number, revision date and change history so the matrix is fit for audit.

How to use this asset criticality matrix template

  1. Build the asset register and define scope, assembling a cross-functional team to set the assessment boundary, the asset hierarchy level and the rules for what is in or out of scope.: Pull a complete asset list from the CMMS and decide what level the assessment will be conducted at, typically maintainable item or functional location. Define site, area or line boundaries and document any explicit exclusions. Assemble a team that includes reliability engineering, maintenance planning, operations, HSE, quality and a senior approver. Without a clean asset register and defined scope, the matrix will produce inconsistent results.
  2. Define the six consequence dimensions and calibrate the rating scales, then walk the team through worked examples until everyone applies the scales consistently across all dimensions.: For each dimension (Safety, Environment, Production, Cost, Quality, Compliance), write a 1 to 5 anchor point description that reflects your business risk appetite. Severity 5 should align to whatever your organisation considers catastrophic. Run a calibration exercise where the team scores three or four representative assets together to surface differences in interpretation before scoring the full register. Document the calibrated scales so future assessors can trace the logic.
  3. Score every asset for likelihood of failure using historical data and engineering judgement, then calculate the criticality score by combining maximum consequence with likelihood.: For each asset, rate likelihood 1 to 5 using the calibrated frequency descriptors. Base the rating on CMMS failure history, MTBF data, asset age, current condition, operating context and known active failure modes. Calculate criticality by combining the maximum consequence rating with the likelihood rating. Flag any asset where consequence is 5 (catastrophic) for management review regardless of likelihood, because high-consequence assets always warrant Tier A treatment.
  4. Assign each asset to a Tier A, B or C using the threshold matrix, then attach a maintenance strategy, spares policy, inspection cadence and response level to each tier.: Use the documented threshold matrix to assign every asset to a tier. Tier A should receive condition-based monitoring, full PM cover, critical spares stocked, redundancy review and 24/7 response. Tier B should receive scheduled PM, time-based inspections, defined spares list and business-hours response. Tier C should receive run-to-failure or minimal inspection. If more than 30 to 40 percent of assets land in Tier A, the scales need recalibration.
  5. Document the matrix as a controlled record, secure approval from the asset owner and a senior approver, then set up the review cadence and the trigger-based review rules.: Publish the completed matrix as a controlled document with a revision number, prepared-by, approved-by and change history. Capture the methodology, the calibrated scales, the threshold matrix and the asset-level results. Secure formal approval from the maintenance manager or operations director. Set a calendar review (typically annual) and document the trigger-based review rules. Link each criticality record to the asset master record in the CMMS so changes flow through.

In MapTrack, you can schedule and track maintenance digitally, by date or meter reading. Each submission is stored as a timestamped PDF against the asset record.

Get the free templateEnter your email above to download the full asset criticality matrix template as a PDF.Back to download form

How often should you complete this plan?

An asset criticality matrix should be completed as a one-off baseline classification when a site first formalises its maintenance strategy. Once the baseline is established, the matrix is a living document. Most operating sites run a formal annual review of the entire matrix as part of the maintenance plan budgeting cycle, ensuring that tier assignments and maintenance strategies are still appropriate. Out-of-cycle reviews are triggered by major incidents (consequence ratings need re-validation), significant design changes (failure modes may have shifted), new asset commissioning (initial classification required), or regulatory changes that affect the compliance dimension. MapTrack tracks every asset against its criticality tier, surfaces upcoming review dates and flags any asset where a recent failure contradicts the assigned criticality.

Try MapTrack free

Full access to every feature. No credit card required. Per-asset pricing so you scale as your fleet grows.

  • No credit card required

Frequently asked questions

No regulator mandates the ABC criticality matrix specifically, but ISO 55001:2024 requires organisations to identify and manage asset-related risk, and a criticality matrix is one way to document that assessment. Auditors against ISO 55001, ISO 31000 or internal asset management frameworks expect to see a documented criticality assessment with calibrated scales, a threshold matrix and traceability from risk rating through to maintenance strategy. The matrix is best-practice rather than statutory, but most large operating sites treat it as effectively mandatory for audit readiness.

A criticality matrix classifies whole assets by business risk to decide how much maintenance attention each deserves, producing a simple Tier A / B / C output across the full register. An FMEA goes one level deeper and analyses the individual failure modes of a specific asset to identify, rate and mitigate each failure mechanism. Most reliability programmes use the matrix first to identify which assets warrant the engineering investment of a full FMEA, then run FMEAs only on Tier A assets. The matrix sets priorities; the FMEA designs the response.

Six dimensions (safety, environment, production, cost, quality, compliance) is the common best-practice set because it captures every category of business consequence without overlap. Some sites use four (safety, environment, production, cost) for simpler operations. The key rule is to take the maximum consequence across dimensions, not the average. A single safety 5 should put an asset in Tier A regardless of how it scores elsewhere. Fewer than four dimensions tends to miss either compliance or quality risk, which is where audit findings often arise.

Run a full formal review of the matrix annually, aligned to your maintenance plan budgeting cycle. Trigger an out-of-cycle review whenever there is a major incident or near-miss (consequence ratings need re-validation), a significant design change or capacity uprate (failure modes may have shifted), the commissioning of a new asset (initial classification required), repeat failures on a Tier C asset (likelihood was understated), or a regulatory change that affects the compliance dimension. Many sites also re-score a sample of assets quarterly as a calibration check.

Yes. Download and use this asset criticality matrix template at no cost. It downloads as a ready-to-print PDF. No MapTrack account is required. If you want digital criticality management with automatic tier-driven PM schedules, condition monitoring triggers, spares policy linkage, review-date reminders and audit-ready version control, MapTrack can do that. Book a demo to see how it works.

Applicable regulatory standards

This template is a starting point. Check the current requirements that apply to your equipment, work and location. The template alone does not establish compliance.

  • Risk management - Guidelines

    Edition: ISO 31000:2018 (Edition 2)

    Risk management guidelines behind the consequence and likelihood scoring. Guidelines only, not certifiable requirements.

    International Organization for Standardization (ISO)Sold by the publisher

  • Asset management - Asset management system - Requirements

    Edition: ISO 55001:2024 (Edition 2)

    Asset management system requirements; the matrix is one common way to prioritise asset risk within one, not a named requirement.

    International Organization for Standardization (ISO)Sold by the publisher

  • Asset management - Management systems - Guidelines for the application of ISO 55001

    Edition: ISO 55002:2018 (Edition 2)

    Guidance on planning, including risks and opportunities, for applying ISO 55001.

    • 6: Guidance on planning: risks and opportunities, asset management objectives and planning to achieve them.

    International Organization for Standardization (ISO)Sold by the publisher

  • Failure modes and effects analysis (FMEA and FMECA)

    Edition: IEC 60812:2018 (Edition 3.0)

    FMEA and FMECA method, commonly run on the Tier A assets the matrix identifies.

    International Electrotechnical Commission (IEC)Sold by the publisher

  • Maintenance - Maintenance terminology

    Edition: EN 13306:2017

    European maintenance terminology for the strategies the tiers assign, such as preventive, condition-based and run-to-failure.

    European Committee for Standardization (CEN); listed by BSISold by the publisher

Each source was read at its publisher and the page checked on 26 October 2026. The publisher's current text is the authority.

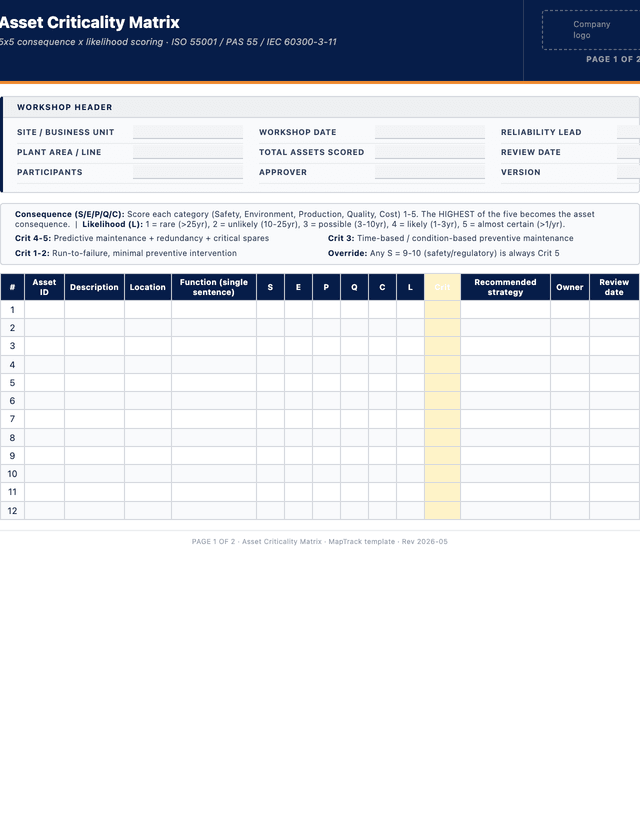

Asset criticality matrix template preview
