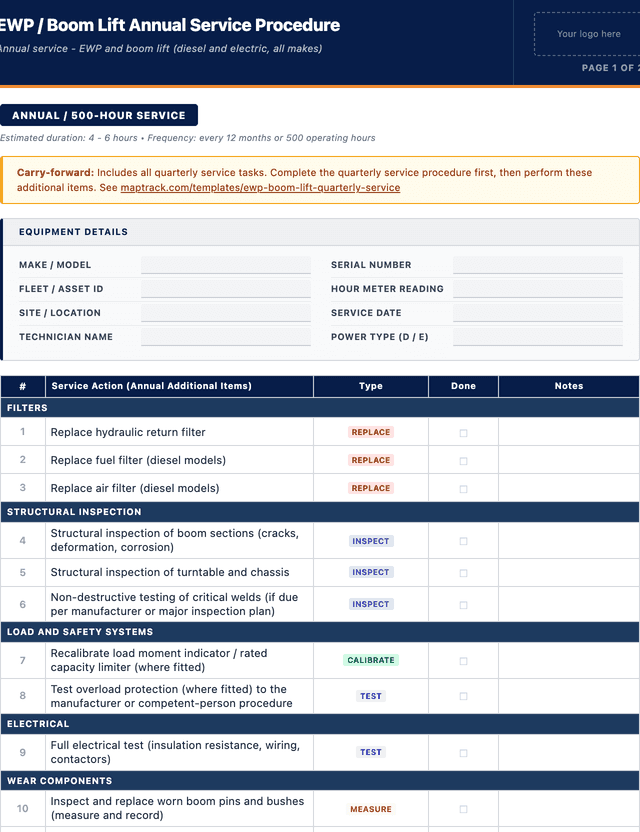

See the first part of the service procedure below. Enter your email above to download the full EWP / boom lift annual service procedure (PDF-ready).
What is an EWP / boom lift annual service?
An annual service is the highest tier of scheduled preventive maintenance for an elevated work platform (EWP) or boom lift. It is performed every 12 months or 500 operating hours and includes all quarterly service tasks plus additional items focused on structural integrity, compliance and component wear. The annual service is typically combined with the annual compliance inspection required under AS 1418.10. It includes replacing hydraulic, fuel and air filters, structural inspection of boom sections, turntable and chassis, recalibrating the load moment indicator, testing overload protection, full electrical testing, measuring pin and bush wear, inspecting cylinder rods, and updating the compliance sticker and logbook. It is performed by a qualified technician or an accredited inspector.
Benefits of scheduled EWP servicing
- Structural safety: annual structural inspection of boom sections, turntable and chassis identifies cracks, deformation or corrosion before they become critical failures.
- Regulatory compliance: the annual compliance inspection per AS 1418.10 / AS 2550 is a legal requirement. Combining it with the annual service ensures nothing is missed.
- Accurate load systems: recalibrating the load moment indicator and testing overload protection ensures operators are protected by accurate safety systems.
- Extended component life: measuring pin and bush wear, inspecting cylinder rods and replacing worn components on schedule prevents costly failures and extends machine life.
- Lower total cost: planned annual maintenance with documented measurements allows you to forecast replacement costs rather than reacting to breakdowns.
- Resale value: a complete service and compliance history increases the machine's value at trade-in or auction.
Benefits of digitising forms in MapTrack
When you move from paper or static PDFs to digital forms in MapTrack, you get:
- Field users can easily scan a QR code to complete a form on mobile. Unlimited users.
- Automatically get alerts when faults are identified.
- Link every form digitally as a PDF to the relevant asset, location or person.
- Receive a digital PDF copy with every submission to your email.
- Ability to share forms digitally.
- Build conditional logic (show or hide questions based on answers).
- Take pictures or attach photos. Not possible with a paper-based form.
- Electronic signatures.
- Edit forms later without reprinting.
- Restrict permissions (who can view, complete or approve).
- Build forms with AI (describe what you need and MapTrack suggests the form).
Book a demo to see digital service procedures and hour-based scheduling in MapTrack.
Service actions included in the annual procedure
This annual service includes all quarterly tasks plus 15 additional actions across 7 system areas:
- Filters: replace hydraulic return filter, replace fuel filter (diesel), replace air filter (diesel).
- Structural inspection: inspect boom sections for cracks, deformation and corrosion, inspect turntable and chassis, non-destructive testing of critical welds (if due).
- Load and safety systems: recalibrate load moment indicator / rated capacity limiter, test overload protection at rated load plus 10%.
- Electrical: full electrical test including insulation resistance, wiring and contactors.
- Wear components: measure and record boom pin and bush wear, inspect cylinder rod condition (scoring, pitting), inspect wire ropes or chains (if fitted).
- Compliance: annual compliance inspection per AS 1418.10 / AS 2550, update compliance sticker and logbook.
- Functional testing: test function speed and smoothness at full reach.
Fluid specifications
General fluid specifications for EWPs and boom lifts (diesel and electric). Capacities vary by machine size and manufacturer.
| System | Type / Grade | Approx. Capacity |
|---|---|---|
| Engine oil (diesel) | 10W-30 or 15W-40 | 6 - 12 L |
| Hydraulic oil | ISO VG 32 or 46 | 40 - 80 L (system) |
| Grease | EP2 lithium complex | As required |
| Battery water (electric) | Distilled water | As required |
Specifications are general guidelines. Always refer to the manufacturer's service manual for your specific make and model.
Parts and consumables
Have the following parts and consumables ready before starting the annual service (in addition to all quarterly service parts):
- All quarterly service parts (see quarterly list)
- Hydraulic return filter - 1
- Fuel filter (diesel models) - 1
- Air filter (diesel models) - 1
- Boom pins and bushes (if replacing after measurement)
- Rags, drip tray and waste oil container
Look up part numbers in the manufacturer's parts manual for your specific make and model before ordering.
How to perform an EWP / boom lift annual service
- Complete the quarterly service procedure first. All quarterly tasks are carried forward into the annual service.
- Replace the hydraulic return filter. For diesel models, also replace the fuel filter and air filter.
- Perform a structural inspection of all boom sections, checking for cracks, deformation and corrosion. Inspect the turntable and chassis. Perform non-destructive testing of critical welds if due per the manufacturer schedule or 10-year NDT cycle.
- Recalibrate the load moment indicator / rated capacity limiter. Test overload protection at rated load plus 10%.
- Perform a full electrical test including insulation resistance, wiring condition and contactor operation.
- Measure and record boom pin and bush wear. Compare measurements to manufacturer limits and replace if worn beyond tolerance. Inspect cylinder rod condition for scoring and pitting. Inspect wire ropes or chains if fitted.
- Complete the annual compliance inspection per AS 1418.10 / AS 2550. Update the compliance sticker and logbook.
- Test function speed and smoothness at full reach. Record any defects or recommendations in the notes section.
- Set the next service due hours (next quarterly and annual). Sign off and update the machine's maintenance log.
In MapTrack, you can schedule services based on hour meter readings, get automatic reminders, complete service procedures on mobile and link every record to the machine. Book a demo to see how.
