What is included in an air compressor 500-hour service?

A 500-hour air compressor service is a major (annual) service that carries forward all 250-hour tasks (engine oil and filter, compressor oil level check, safety valve test, belt and hose inspection) and adds fuel filter replacement, air filter element replacement, compressor oil separator element replacement (rotary screw), safety relief valve pop test to rated pressure, receiver tank internal inspection for corrosion and scale, pressure regulator adjustment, drive belt replacement, minimum pressure valve inspection, aftercooler service, unloader valve inspection, full compressor oil change (rotary screw), full electrical check (wiring, contactors, overloads) and vibration isolator mount check. It takes approximately 2 to 3 hours.

What additional items does a 500-hour service include compared to a 250-hour service?

Beyond the 250-hour service, the 500-hour interval adds: replacing the fuel filter, replacing the air filter element, replacing the compressor oil separator element (rotary screw), performing a pop test on the safety relief valve to rated pressure, inspecting the receiver tank internally for corrosion and scale, checking and adjusting the pressure regulator, replacing drive belts, inspecting the minimum pressure valve, servicing the aftercooler (clean/blow out), inspecting the unloader valve, performing a full compressor oil change (rotary screw), a full electrical check covering wiring, contactors and overloads, and checking vibration isolator mounts.

Why is receiver tank inspection important at 500 hours?

The receiver tank stores compressed air under high pressure. Over time, condensate, corrosion and scale can weaken the tank walls and compromise the vessel integrity. The 500-hour internal inspection checks for pitting, rust, scale build-up and weld deterioration. Catching corrosion early prevents catastrophic tank failure and ensures compliance with Australian Standards for pressure vessels. If significant corrosion is found, the tank may need ultrasonic thickness testing or replacement.

Is a pop test on the safety relief valve mandatory in Australia?

Under AS 3788, safety relief valves on registered pressure vessels must be tested or replaced at intervals determined by the inspection authority or risk-based inspection plan. The 500-hour pop test, where the valve is pressurised to its rated set pressure to confirm it lifts correctly, is standard industry practice for portable compressors. If the valve fails to lift at the correct pressure, it must be replaced immediately. Records of each pop test should be retained as part of the compliance documentation.

Is this air compressor 500-hour service checklist free to download?

Yes, this air compressor 500-hour service checklist is completely free to download as a PDF. No account or signup is required. For teams wanting to move beyond paper forms, MapTrack offers a digital version that automates scheduling, sends overdue alerts, and stores completed records in the cloud for instant retrieval during audits.

Free air compressor 500-hour / annual service procedure

Jump to download form ↓

Enter your email below to download this air compressor 500-hour / annual service procedure as a ready-to-use PDF.

Free air compressor 500-hour service checklist (PDF-ready). Fuel filter, separator element, drive belts, receiver tank and full oil change. Download free.

Jarrod Milford

Commercial Director

Updated 2 May 2026

How to use: download the PDF, print or complete digitally on any device.

✓PDF format, ready to print or fill on screen
✓Use as-is or customise to suit your operation
✓Go digital in MapTrack for photos, alerts and audit trails

See template in action →

Download free PDF template

Trusted by teams across Australia and New Zealand

We respect your privacy. Unsubscribe anytime.

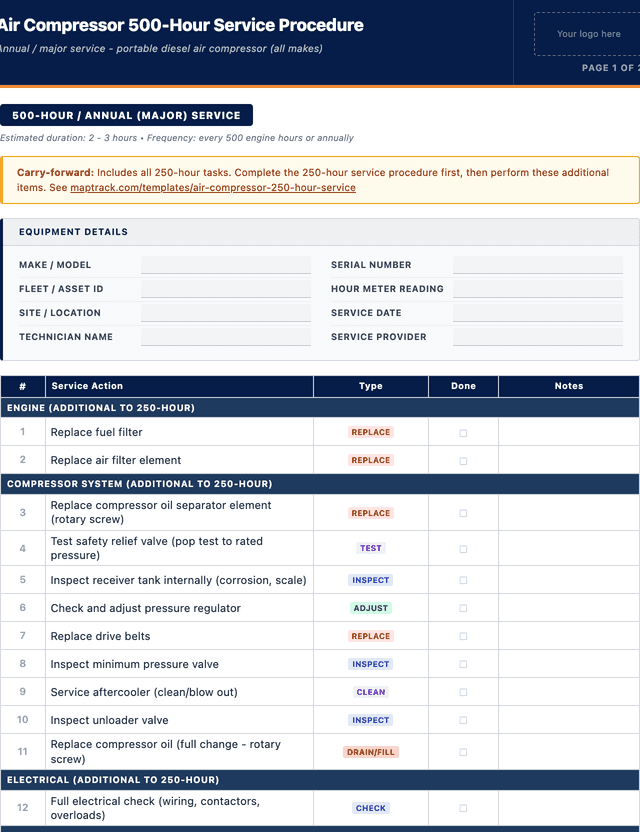

Preview the template

See the first part of the air compressor 500-hour / annual service procedure below. Download the full version above.

Download to get full template →

What is a air compressor 500-hour / annual service procedure?

A 500-hour service is the second tier (major / annual) of scheduled preventive maintenance for a portable diesel air compressor. It is performed every 500 engine hours or annually, whichever comes first. The 500-hour service carries forward all 250-hour tasks (engine oil and filter change, compressor oil level check, safety valve test, belt and hose inspection) and adds more in-depth maintenance: replacing the fuel filter, replacing the air filter element, replacing the compressor oil separator element (rotary screw), performing a safety relief valve pop test to rated pressure, inspecting the receiver tank internally for corrosion and scale, adjusting the pressure regulator, replacing drive belts, inspecting the minimum pressure valve, servicing the aftercooler, inspecting the unloader valve, performing a full compressor oil change, a full electrical check and checking vibration isolator mounts. It is typically performed by a qualified mechanic or fitter.

The 500-hour service is the primary safeguard against major component failures in high-utilisation environments such as civil construction, tunnelling and mining, where compressors regularly run under sustained load. Receiver tanks on portable compressors are classified as pressure vessels under Australian law, and AS 3788 requires periodic internal inspection to detect corrosion, pitting and weld deterioration that could lead to catastrophic failure. Skipping or deferring the 500-hour service increases the risk of separator element collapse (which forces oil into the air supply), drive belt failure mid-operation and undetected receiver tank degradation. A documented 500-hour service history satisfies insurance audit requirements, supports equipment registration renewals and provides traceable evidence of compliance for workplace safety inspections conducted by state and territory regulators.

Learn more about maintenance and work orders in MapTrack.

Benefits of using this air compressor 500-hour / annual service procedure

Reduced breakdowns: regular oil, filter and fluid changes prevent engine and compressor failures that cause unplanned downtime on site.
Extended component life: fresh compressor oil, new separator elements and clean aftercoolers reduce wear on the compressor element, valves and drive system.
Lower repair costs: a 500-hour service costs a fraction of an emergency breakdown repair. Catching issues early prevents cascading damage.
Operator safety: pop testing the safety relief valve, inspecting the receiver tank internally, checking electrical systems and testing emergency stops reduces the risk of on-site incidents involving pressure equipment.
Compliance: documented service records demonstrate that pressure equipment is maintained to WHS and Australian Standards, supporting insurance and regulatory obligations.
Resale value: a complete service history with documented 250 and 500-hour services increases the compressor's value at trade-in or sale.

Benefits of digitising forms in MapTrack

When you digitise air compressor service procedures in MapTrack, you get:

Field users can easily scan a QR code to complete a form on mobile. Unlimited users.
Automatically get alerts when faults are identified.
Link every form digitally as a PDF to the relevant asset, location or person.
Receive a digital PDF copy with every submission to your email.
Ability to share forms digitally.
Build conditional logic (show or hide questions based on answers).
Take pictures or attach photos. Not possible with a paper-based form.
Electronic signatures.
Edit forms later without reprinting.
Restrict permissions (who can view, complete or approve).
Build forms with AI (describe what you need and MapTrack suggests the form).
Trigger work orders automatically when a fault is logged during an inspection.
Track service intervals by hours, kilometres or calendar date in one place.
Attach supplier invoices and parts receipts to each maintenance record.

Book a demo to see how MapTrack handles air compressor service procedures.

Try MapTrack free for 30 days

Full access to every feature. No credit card required. Per-asset pricing so you scale as your fleet grows.

Start free trial

No credit card required
30 days free trial
Cancel anytime

What to include in a air compressor 500-hour / annual service procedure

This air compressor 500-hour / annual service procedure covers 4 key areas:

Engine: replace fuel filter, replace air filter element.
Compressor system: replace compressor oil separator element, pop test safety relief valve, inspect receiver tank internally, adjust pressure regulator, replace drive belts, inspect minimum pressure valve, service aftercooler, inspect unloader valve, full compressor oil change.
Electrical: full electrical check (wiring, contactors, overloads).
Structural: check vibration isolator mounts.

How to use this air compressor 500-hour / annual service procedure

Complete the 250-hour service procedure first. All 250-hour tasks are carried forward into the 500-hour service.: Use the 250-hour service checklist to confirm engine oil and filter, compressor oil level, safety valve test, belt and hose inspection, grease points and pressure checks are all completed and signed off before starting the 500-hour items.
Shut down the compressor, depressurise fully and isolate the engine. Record the equipment details and current hour meter reading.: Confirm the receiver tank gauge reads zero before opening any service points. Record the asset ID, make, model, serial number, site and current hour meter reading. Compare the reading to the last 500-hour service record.
Replace the fuel filter and air filter element. These are full replacements at the 500-hour interval (not just inspection).: Install a genuine or equivalent fuel filter element. Replace the air filter outer element and inspect the inner safety element for damage. Prime the fuel system after filter replacement to remove air locks before starting.
Replace the compressor oil separator element (rotary screw). Drain and replace the compressor oil with fresh oil to the correct level.: Drain the old compressor oil while the unit is still warm for complete removal. Install a new separator element and fill with the manufacturer-specified compressor oil (PAO or mineral, typically 8-15 litres). Check the oil level on the sight glass after a brief run.
Pop test the safety relief valve to rated pressure. Inspect the receiver tank internally for corrosion, pitting and scale.: Pressurise the system and verify the safety relief valve lifts at the stamped set pressure (typically 1.1 times working pressure). Use a torch to inspect the tank interior through the drain port or inspection opening for rust, pitting, scale and weld deterioration.
Check and adjust the pressure regulator. Replace the drive belts. Inspect the minimum pressure valve.: Adjust the regulator to deliver the rated working pressure. Install new drive belts and set tension to the manufacturer specification, typically 10-15 mm deflection at the midpoint. Confirm the minimum pressure valve holds and releases correctly.
Service the aftercooler (clean/blow out). Inspect the unloader valve for correct operation.: Use compressed air to blow debris from the aftercooler fins, working from the clean side outward. Inspect for oil or moisture leaks at joints. Cycle the unloader valve manually and confirm it seats properly when the compressor reaches cut-out pressure.
Perform a full electrical check: inspect wiring, contactors and overloads. Check vibration isolator mounts.: Inspect all wiring for chafe, heat damage or loose terminals. Check contactor tips for pitting and ensure overload settings match the motor nameplate current. Examine vibration isolator mounts for cracking or compression and replace if the mount has deformed beyond its original height.
Start the compressor and check for leaks, abnormal noises or warning lights. Verify operating pressure reaches the correct set point. Record any defects or recommendations in the notes section.: Run the compressor for at least ten minutes at full load. Monitor oil pressure, temperature and operating pressure. Spray soapy water on new filter connections and fittings to check for leaks. Note any abnormal vibration or noise for follow-up.
Set the next service due hours (next 250-hour and next 500-hour intervals). Sign off and update the machine's maintenance log.: Calculate the next 250-hour and 500-hour due hours from the current meter reading. Update the service sticker on the machine. Enter the completed service details, oil type and quantities, parts replaced and any outstanding actions in the maintenance log or digital system.

In MapTrack, you can schedule and track maintenance digitally. Each submission is stored as a timestamped PDF against the asset record.

Get the free template

Enter your email above to download the full air compressor 500-hour / annual service procedure as a PDF.

Back to download form

How often should you complete this service procedure?

The 500-hour major service should be performed every 500 engine hours or annually, whichever comes first. For compressors running full-time on construction sites, this interval is typically reached every two to three months. Compressors with lower utilisation should still receive the 500-hour service at least once per year to address time-based degradation such as belt perishing, oil oxidation and corrosion.

Between 500-hour services, the 250-hour minor service covers oil, filters and basic safety checks. Daily pre-start checks should be performed before each use. If the compressor operates in unusually dusty, humid or corrosive environments, consider shortening the interval to 400 hours. Always consult the manufacturer service manual for model-specific scheduling guidance.

Frequently asked questions

Applicable regulatory standards

This template aligns with the following regulations and standards:

AS 1210:2010 - Pressure Vessels (design and construction requirements for receiver tanks)
AS 3788:2006 - Pressure Equipment - In-service Inspection (hydrostatic testing and internal inspection intervals)
WHS Regulations 2011, Chapter 5, Part 5.1 - Registration and Inspection of Pressure Equipment
