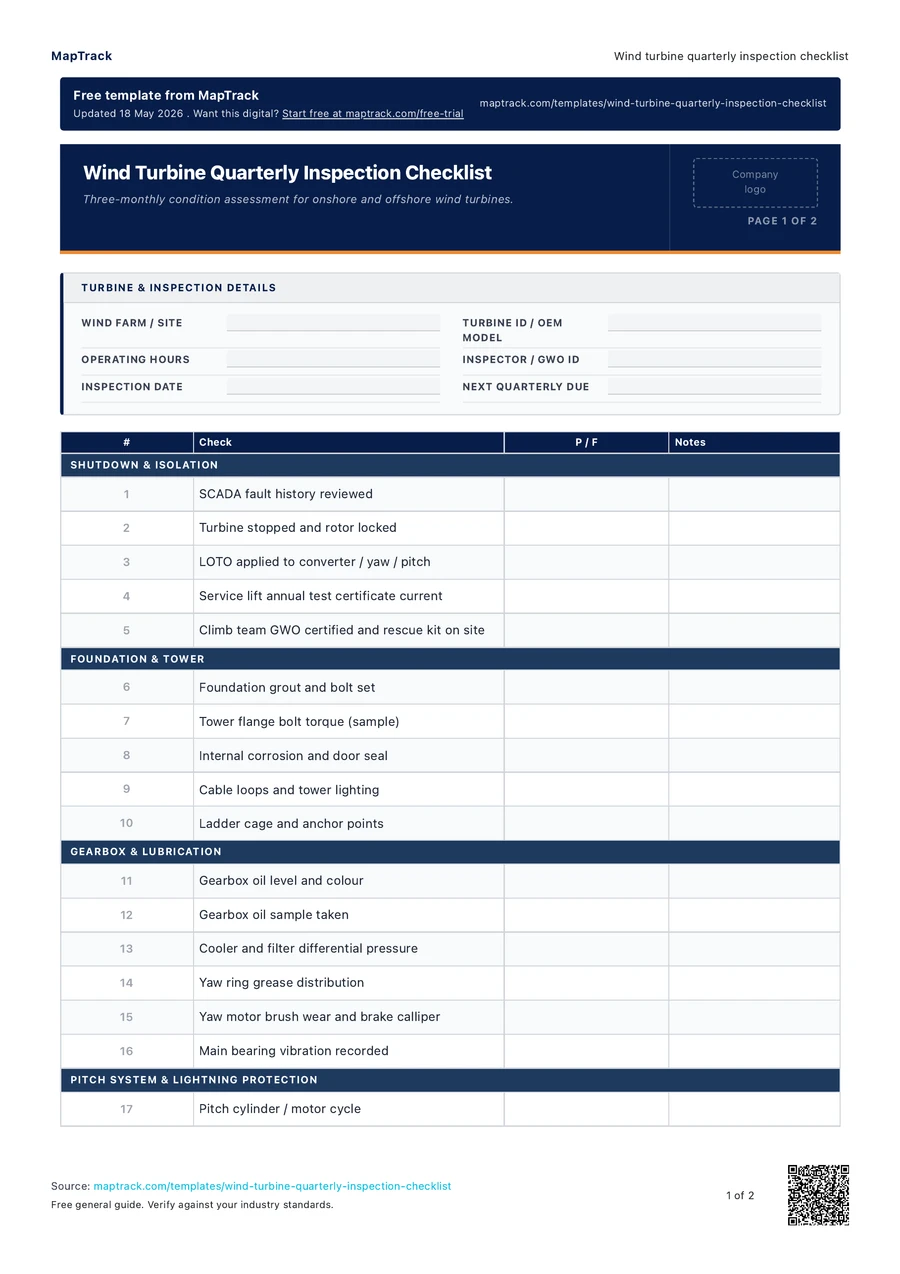

Free wind turbine quarterly inspection checklist
Free wind turbine quarterly inspection checklist (PDF-ready). Tower nacelle blade hub yaw and converter checks aligned to IEC 61400-22 and GWO. Download free.
Loading PDF page...
Read the form fields
27 checks · 5 sections · Sign-off
27 checks
The fields in the printable form, in a view that fits your screen.
- Wind farm / site
- Turbine ID / OEM model
- Operating hours
- Inspector / GWO ID
- Inspection date
- Next quarterly due
Shutdown & isolation
Foundation & tower
Gearbox & lubrication
Pitch system & lightning protection
Converter & electrical
Declaration & Sign-Off
I confirm that all items have been inspected/completed as indicated above. Any defects or concerns have been noted and reported.
Completed By
Printed name · Signature · Date
Reviewed / Approved By
Printed name · Signature · Date
The MapTrack wind turbine quarterly inspection checklist contains 27 checks across 5 sections.
Co-Founder & Commercial Director
Make this form your own
Add your fields and logo. Give your team a form they can use on site.
Free 30-day trial. No credit card. Work email needed.
Upload & use this form now for free
“MapTrack beat them all in every aspect.”
Vincent Stone · HSEQ Advisor, Concept TanksAfter signup: upload this PDF, check the form MapTrack drafts, then save and publish it for your team.
General guidance only. Check the form against your equipment manual, site procedures and local requirements before using it.
Key takeaways
- The MapTrack wind turbine quarterly inspection checklist contains 27 checks across 5 sections. Sections covered: Shutdown & isolation, Foundation & tower, Gearbox & lubrication, Pitch system & lightning protection, Converter & electrical.
- Asset identification: turbine ID OEM model nacelle serial commissioning date current operating hours generator kWh year to date and inspection team names.
- Permit and isolation: lockout-tagout of the converter low-voltage transformer and yaw drives confirmation of stopped rotor pitch hydraulic depressurised and grid disconnection.
- Tower and base: foundation cracks tower flange bolt torque tower internal corrosion ladder cage condition cable loops and service lift annual test certificate.
What is a wind turbine quarterly inspection checklist?
A wind turbine quarterly inspection is a scheduled three-monthly condition assessment of an onshore or offshore horizontal-axis wind turbine generator, covering the tower, nacelle, rotor hub, blades, yaw and pitch systems, drivetrain, converter cabinet and the grid connection. The inspection sits between the daily SCADA-driven remote monitoring loop and the annual major service, and is the cadence at which IEC 61400-22 (Wind turbine certification and conformity testing) and the GWO Basic Technical Training framework expect competent technicians to walk the asset, capture vibration and oil sample data, and close out the defects that SCADA cannot see.
Wind farm operators, original equipment manufacturer (OEM) field service teams and independent operations and maintenance (O&M) contractors use this checklist to keep availability above the 97 percent that most power purchase agreements require, while staying compliant with AS/NZS 60204.1 for machinery electrical safety and following the service lift manufacturer inspection requirements for the climb. Each item on the checklist is a verifiable observation (oil level in the gearbox, bolt torque on the yaw ring, blade leading-edge erosion, slip-ring condition, converter capacitor health) that becomes audit evidence on the day a generator trip, a blade lightning strike or a grid event is investigated. Quarterly inspections also drive the spare parts forecast for the next service campaign because most consumable items (filters, brushes, slip-ring grease, lubricant) have a service life measured in operating hours rather than calendar months.
Learn more about maintenance and work orders in MapTrack.
Choose the format that fits your team
Download the PDF
Use the original printable form for a paper workflow. Check it against your equipment and site procedure before the job.
Keep completed copies in your own record system and arrange any follow-up through your normal process.
Download free PDFCustomise a form in MapTrack
Start a free trial, upload this PDF and MapTrack drafts the form. Adjust it to your workflow, then save and publish it for your team to use.
Sample answers on this page and completed PDF records aren't imported automatically.
Upload & use this form now for freeFree 30-day trial. No credit card. Work email needed.
Benefits of using this wind turbine quarterly inspection checklist
- Availability protection: catching gearbox oil contamination yaw motor wear or pitch bearing drag at the quarterly mark prevents the multi-week outage that follows an in-service drivetrain failure.
- Compliance evidence: the signed checklist becomes the audit record for IEC 61400-22 surveillance AS/NZS 60204.1 electrical safety and the operator works management system used by every wind farm regulator.
- Climber safety verification: every visit reconfirms tower ladders fall arrest anchors service lift and rescue kit comply with GWO Basic Technical Training expectations and AS/NZS 1891 anchor requirements.
- Energy yield uplift: pitch and yaw calibration checks restore the 1 to 4 percent annual energy production typically lost to drift between formal services on multi-megawatt turbines.
- Warranty defence: a documented quarterly history aligned to the OEM service manual is the evidence required to keep multi-year availability and component warranties (gearbox blade converter) intact.
- Reliability planning: vibration grease analysis and oil sample data captured each quarter feed the prognostics model that schedules the next gearbox top-up bearing change or converter recap.
What to include in a wind turbine quarterly inspection checklist
- Asset identification: turbine ID OEM model nacelle serial commissioning date current operating hours generator kWh year to date and inspection team names.
- Permit and isolation: lockout-tagout of the converter low-voltage transformer and yaw drives confirmation of stopped rotor pitch hydraulic depressurised and grid disconnection.
- Tower and base: foundation cracks tower flange bolt torque tower internal corrosion ladder cage condition cable loops and service lift annual test certificate.
- Nacelle and yaw: gearbox oil level and colour gearbox cooler hydraulic system pressure yaw ring grease yaw motor brushes yaw bearing play and main bearing housing.
- Rotor hub and pitch: pitch cylinder or motor operation pitch bearing seal slip-ring condition lightning protection down-conductor and hub interior cleanliness.
- Blades: leading-edge erosion trailing-edge cracks lightning receptor continuity tip brake (if fitted) and root bolt torque sample.
- Drivetrain and converter: vibration readings at main bearing gearbox and generator bearing temperature converter cabinet fans IGBT module and DC link capacitor health.
- Electrical and grid: low-voltage transformer oil sample switchgear interlocks earth resistance lightning surge arrester and harmonic filter condition.
- SCADA and safety: SCADA fault history review emergency stop chain test fire detection and smoke alarm test rescue kit and first aid kit in date.
- Defect register and sign-off: defect list severity escalation path action owner target close-out date and inspector signature.
How to use this wind turbine quarterly inspection checklist
Plan and isolate the turbine before climbing
review the SCADA fault history of the last quarter agree the inspection scope with the wind farm control room stop the turbine apply lockout-tagout to converter yaw drives and pitch hydraulics confirm the rotor is locked and verify the service lift annual test certificate before any climb.
Walk the tower base and ascend with the climb checklist
inspect the foundation grout and bolt set verify the door seal cable loops and tower internal lighting torque-check the lower flange bolts on a sample basis test the service lift function and confirm fall arrest rescue kit and GWO-rated harnesses on every climber.
Inspect the nacelle drivetrain and yaw
open the gearbox sight glass for oil level and discolouration take an oil sample for laboratory analysis check the gearbox cooler and filter pressure differential record vibration on main bearing gearbox and generator inspect the yaw ring grease distribution and check yaw motor brush wear and yaw brake calliper.
Open the hub and inspect blades pitch and lightning protection
enter the hub through the rotor lock check the pitch cylinder or motor operation through a slow pitch cycle inspect the pitch bearing seals and slip-ring brushes test the lightning down-conductor continuity from each blade tip to the tower base and visually inspect blade root bolts and the leading edge from inside the blade where access is provided.
Verify converter and electrical systems then close out
open the converter cabinet door check IGBT module heatsinks DC link capacitor venting and cooling fans review the low-voltage transformer oil and switchgear interlocks confirm earth bond resistance and surge arrester counters release lockout-tagout return the turbine to service through SCADA and submit the signed checklist with defect register and oil and vibration sample references.
How often should you complete this checklist?
Wind turbine maintenance is best run on a tiered cadence that mirrors the OEM service manual and the IEC 61400-22 surveillance regime. SCADA-driven remote monitoring runs continuously and triggers ad-hoc visits for individual fault codes. Daily and weekly remote checks of energy yield availability and fault alarms are completed from the control room. A quarterly inspection (this checklist) walks the asset every three months to verify items SCADA cannot see (visual condition oil sample vibration trend bolt torque). A six-monthly inspection adds a deeper torque audit on tower flanges and yaw drive bolts. A full annual major service drains and refills the gearbox replaces filters and consumables and recertifies the safety systems. Major component campaigns (gearbox blade converter) are then scheduled against operating hours or condition. MapTrack quarterly hour-meter and SCADA-fault triggers automate the next inspection across each turbine in the fleet so no asset slips between intervals.
Make this form your own
From your template to your team.
Upload this PDF and MapTrack drafts the form. Adjust it for your equipment and site, then save and publish the digital form for your team.
- 01
Start your free trial
Use your work email to create your MapTrack account.
- 02
Customise, save and publish
Adjust the template fields and branding for your site.
- 03
Complete it on the job
Record checks, add photos and export a branded PDF.
Keep working offline
Load the form before you lose reception. Complete it offline and sync when you're back online.
Scan the asset. Open its form.
Use an asset's QR code to find and complete the forms that belong to it.
Show what you found
Capture photos and attach files so the next person has the details they need.
Take a branded PDF with you
Download completed forms as PDF reports with your company logo.
Completed paper records aren't imported automatically.
Frequently asked questions
Practical answers about the form, record keeping and using MapTrack.
Wind turbines fall under the WHS Act 2011 and WHS Regulations 2011 Chapter 5 (plant duty to maintain in safe condition), AS/NZS 60204.1 (Safety of machinery electrical equipment) for the converter and low-voltage system, the service lift manufacturer inspection and maintenance requirements for the tower service lift (regulation 213), and the AEMO grid connection rules through the relevant network service provider. IEC 61400-22 surveillance is contractual under most power purchase agreements rather than legislated, but most asset owners treat it as the de facto standard. The wind farm operator (PCBU) must ensure quarterly inspections are completed by a competent person with documented evidence on file.
Link to this answerA quarterly inspection is a three-monthly walk-down to check condition: oil level and colour visual blade and bolt sampling vibration readings yaw and pitch function and electrical cabinet condition. An annual major service is an extended outage where consumables are replaced wholesale (gearbox oil change filter sets brush wear coupling alignment torque audit converter capacitor inspection). The quarterly checklist is the surveillance cadence that decides whether annual service scope expands. Quarterly inspections close out routine defects; annual services close out condition trends and consumable life.
Link to this answerIEC 61400-22 and the GWO Basic Technical Training framework expect technicians to hold GWO Basic Safety Training (working at heights manual handling first aid and fire awareness), GWO Basic Technical Training (mechanical electrical and hydraulic modules) and OEM-specific platform training for the turbine model. In Australia an electrical licence is required for the converter and low-voltage transformer work, a high-risk work licence may apply to the service lift, and the wind farm operator must verify each technician against a competency matrix before site access. Independent O&M contractors and OEM field service teams are the typical providers.
Link to this answerBefore any climb the inspection team must verify the turbine is stopped with the rotor locked and lockout-tagout applied to the converter pitch hydraulics and yaw drives, the service lift annual test certificate is current and the lift operates correctly, the fall arrest rail and anchor points pass visual inspection, each climber wears a GWO-rated harness with twin-lanyard and the rescue kit is accessible and in date, the tower internal lighting works and the door seal and cable loops are intact. AS/NZS 1891 anchor requirements apply to every fall arrest system on the turbine.
Link to this answerSCADA captures continuous data on power curve availability fault codes generator and gearbox temperatures vibration and pitch and yaw activity. The quarterly inspection reviews the previous three months of SCADA history before climbing and ground-truths the data on the asset itself. A persistent high gearbox temperature alarm becomes a gearbox oil sample and cooler inspection during the visit. A pitch fault history becomes a pitch cylinder and slip-ring check. The signed checklist closes out the SCADA defects with physical evidence and updates the asset condition record that feeds the next quarterly plan.
Link to this answerApplicable regulatory standards
This form is a starting point. Check the current requirements that apply to your equipment, work and location. The form alone does not establish compliance.
- IEC 61400-22 (Wind turbine certification and conformity testing)
- AS/NZS 60204.1 (Safety of machinery electrical equipment)
- WHS Regulations - Part 5.1, regulation 213 (maintenance and inspection of plant, including the tower service lift, following the manufacturer recommendations)
- AS/NZS 1891 (Industrial fall arrest)
- GWO Basic Technical Training framework
