A step-by-step quarterly service procedure for cool room, cold room and freezer refrigeration units. Covers evaporator and condenser coil inspection, superheat and subcooling measurements, compressor amps and pressures, expansion valve operation, defrost system testing, door seal checks, drain line inspection, temperature controller calibration, fan motor inspection and operating temperature logging. Includes equipment details, fluid specifications, consumables list and sign-off by a licensed refrigeration mechanic. This page explains what the service involves, how to perform it, and offers a free PDF-ready form you can download straight away.
Last updated: 2026-03-26 · MapTrack
Commercial Director
How to use: Fill equipment details and set temperature at the top, then work through each service action. Record pressure readings and temperatures in the notes column. Set the next service due date and sign off.
- ✓ PDF-ready. Open and print to PDF
- ✓ Includes pressure readings, temperatures and sign-off
- ✓ Free to use with or without MapTrack
Download free PDF template
Trusted by Australian facilities and maintenance teams
We use your email to send your download and occasional MapTrack updates. Unsubscribe anytime. Privacy policy

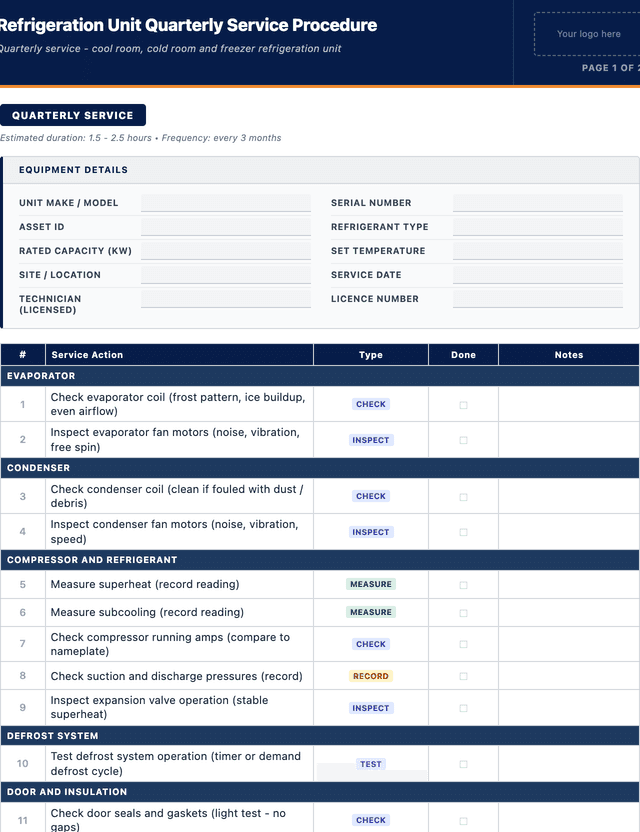

Preview the template
See the first part of the service procedure below. Enter your email above to download the full refrigeration unit quarterly service procedure (PDF-ready).
What is a quarterly refrigeration unit service?
A quarterly refrigeration service is a scheduled preventive maintenance procedure performed every three months on cool rooms, cold rooms and freezer units. The procedure is designed to maintain efficient operation, prevent breakdowns and ensure stored products remain at the correct temperature. It covers evaporator coil condition, condenser coil cleanliness, refrigerant system performance (superheat, subcooling, pressures, compressor amps), defrost system operation, door seals and gaskets, drainage, temperature controller accuracy, fan motors and insulation panels. The service should be performed by a licensed refrigeration mechanic. Unlike a daily temperature log, the quarterly service involves instrument measurements, performance testing and documented comparison to nameplate specifications.
Benefits of scheduled refrigeration servicing
- Product protection: regular servicing ensures correct temperatures are maintained, preventing spoilage of perishable goods worth thousands of dollars.
- Energy efficiency: dirty condenser coils, incorrect refrigerant charge and poor door seals cause the compressor to work harder, increasing energy consumption significantly.
- Reduced breakdowns: catching issues early (iced evaporator, high compressor amps, failed defrost) prevents compressor failure that can cost thousands to repair.
- Food safety compliance: documented service records support food safety audits and demonstrate compliance with temperature control requirements.
- Extended equipment life: regular cleaning and correct refrigerant charge reduces compressor wear and extends the life of the unit.
- Insurance requirements: many insurers require evidence of regular refrigeration maintenance as a condition of coverage for spoilage claims.
Benefits of digitising forms in MapTrack
When you move from paper or static PDFs to digital forms in MapTrack, you get:
- Field users can easily scan a QR code to complete a form on mobile. Unlimited users.
- Automatically get alerts when faults are identified.
- Link every form digitally as a PDF to the relevant asset, location or person.
- Receive a digital PDF copy with every submission to your email.
- Ability to share forms digitally.
- Build conditional logic (show or hide questions based on answers).
- Take pictures or attach photos. Not possible with a paper-based form.
- Electronic signatures.
- Edit forms later without reprinting.
- Restrict permissions (who can view, complete or approve).
- Build forms with AI (describe what you need and MapTrack suggests the form).
Book a demo to see digital service procedures and compliance scheduling in MapTrack.
Service actions included in the quarterly procedure
This service procedure covers 15 service actions across 7 system areas:
- Evaporator: check coil condition (frost pattern, ice buildup, airflow), inspect fan motors.
- Condenser: check and clean coil, inspect fan motors.
- Compressor and refrigerant: measure superheat and subcooling, check compressor amps, record suction and discharge pressures, inspect expansion valve.
- Defrost system: test defrost operation (timer or demand cycle).
- Door and insulation: check door seals and gaskets, check insulation panels.
- Drainage: inspect drain lines and drip tray.
- Controls and monitoring: check temperature controller calibration, log all operating temperatures.
Fluid specifications
General fluid specifications for refrigeration units. Refrigerant type and oil grade vary by unit manufacturer.
| System | Type / Grade | Notes |
|---|---|---|
| Refrigerant | R-134a, R-404A, R-407C or as specified | Do not top up without leak test |
| Compressor oil | POE or mineral per manufacturer | Check level in sight glass |
Specifications are general guidelines. Always refer to the unit manufacturer's service manual. Refrigerant handling requires an appropriate licence (ARCTick in Australia).
Parts and consumables
Have the following equipment and consumables ready before starting the quarterly service:
- Condenser coil brush / cleaning agent
- Pressure gauges / manifold set
- Clamp meter (amps)
- Digital thermometers / probes - 2
- Drain line cleaner
- PPE (safety glasses, gloves)
Refrigerant top-up requires a leak test first and an ARCTick licence. Do not add refrigerant without first identifying and repairing the leak.
How to perform a quarterly refrigeration service
- Record the equipment details at the top of the form including unit make/model, serial number, refrigerant type, rated capacity and set temperature.
- With the unit running, check the evaporator coil for frost pattern, ice buildup and even airflow. Listen to evaporator fan motors for noise or vibration.
- Check the condenser coil. Clean if fouled with dust or debris. Inspect condenser fan motors.
- Connect gauges and measure superheat, subcooling, suction pressure and discharge pressure. Check compressor running amps against the nameplate. Inspect expansion valve operation.
- Test the defrost system by initiating a manual defrost cycle. Verify the timer or demand defrost operates correctly.
- Check door seals and gaskets using the light test (close the door on a torch and check for light gaps). Check insulation panels for damage or condensation.
- Inspect drain lines and drip tray for blockage, frost or overflow. Check temperature controller calibration by comparing display to an independent probe.
- Log all operating temperatures (room, coil, ambient). Record any defects or recommendations. Set the next service due dates and sign off.
In MapTrack, you can schedule refrigeration services by date, get automatic reminders, complete service procedures on mobile and link every record to the asset. Book a demo to see how.
Get the free template
Enter your email above to download the refrigeration unit quarterly service procedure.
Back to download formRefrigeration service interval hierarchy
Refrigeration unit maintenance follows a tiered schedule where the annual service includes all tasks from the quarterly service. This is called carry-forward or cumulative servicing.
Quarterly service (you are here)
Evaporator, condenser, compressor readings, defrost test, door seals, drainage, temperature logging. Estimated 1.5-2.5 hours.
All quarterly tasks plus leak test, oil analysis, coil cleaning, calibration, electrical inspection, safety cutouts and AS 1677 compliance. Estimated 3-5 hours.
In MapTrack, you can configure service schedules by date and receive automatic alerts when each interval is due.
Frequently asked questions
- What is included in a quarterly refrigeration unit service?
- A quarterly refrigeration service covers checking the evaporator coil for frost pattern and ice buildup, checking and cleaning the condenser coil, measuring superheat and subcooling, checking compressor running amps against nameplate, recording suction and discharge pressures, inspecting expansion valve operation, testing the defrost system, checking door seals and gaskets, inspecting drain lines and drip tray, checking temperature controller calibration, inspecting evaporator and condenser fan motors, logging all operating temperatures, and checking insulation panels. It takes approximately 1.5 to 2.5 hours.
- Do you need a licence to service refrigeration units in Australia?
- In Australia, any work involving the handling, recovery or charging of refrigerant requires an ARCTick refrigerant handling licence. A quarterly service that only involves reading pressures via gauge manifolds and visual inspections can be performed by a qualified refrigeration mechanic, but any refrigerant top-up or recovery requires a licensed refrigerant handler. Always check your state or territory requirements.
- What is the difference between a quarterly and annual refrigeration service?
- A quarterly service covers routine operating checks, pressure readings, temperature logging, defrost testing and visual inspections. An annual service includes all quarterly tasks plus a full refrigerant leak test with electronic detector, compressor oil analysis, chemical wash of evaporator and condenser coils, temperature controller calibration, electrical contactor and wiring inspection, safety cutout testing, insulation panel inspection, door hardware inspection, floor drainage checks, AS 1677 compliance check and refrigerant register update.
- Is the template free to use without MapTrack?
- Yes. Download and use the refrigeration unit quarterly service procedure for free. Open the file and use your browser's Print, then Save as PDF. No MapTrack account required. If you later want digital service procedures linked to each asset with scheduling, compliance tracking and alerts, we would be happy to show you MapTrack.
