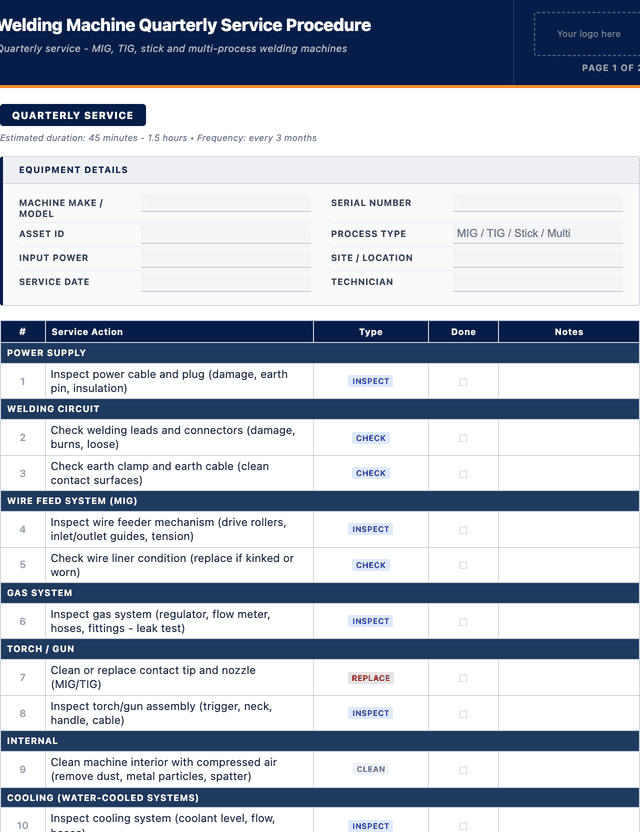

See the first part of the welding machine quarterly service procedure below. Download the full version above.
What is a welding machine quarterly service procedure?
A quarterly service is the standard interval for preventive maintenance on MIG, TIG, stick and multi-process welding machines. It covers electrical safety (power cable, leads, earth), wire feed system condition (drive rollers, liner, tension), gas system integrity (regulator, hoses, leak test), torch and consumable replacement (contact tips, nozzles), internal cleaning to remove conductive dust and spatter, cooling system check (water-cooled units), and output performance testing. The service ensures the machine operates safely and produces quality welds. It is typically performed by a trained technician or workshop supervisor.
Welding machines accumulate conductive metal dust, grinding particles and weld spatter during normal operation. This contamination can short-circuit internal electronics, block cooling airflow and degrade output quality. The quarterly service addresses these risks through systematic cleaning, consumable replacement and output verification. For construction sites and workshops classified as hostile environments under AS/NZS 3760, quarterly electrical testing is also mandatory, making the quarterly service the ideal time to combine mechanical maintenance with compliance testing.
For fabrication shops, construction sites and maintenance workshops that rely on welding machines daily, quarterly servicing prevents the gradual degradation that leads to poor weld quality, arc instability and safety hazards. In Australia, welding machines are subject to AS/NZS 3760 for electrical safety testing and AS/NZS 3012 on construction sites. Documenting quarterly services creates the compliance trail required for WHS audits.
Learn more about maintenance and work orders in MapTrack.
Benefits of using this welding machine quarterly service procedure
- Electrical safety: regular inspection of power cables, earth connections and leads prevents electric shock hazards and meets WHS obligations.
- Consistent weld quality: maintaining wire feed tension, clean contact tips and correct gas flow ensures consistent arc performance and weld quality.
- Reduced downtime: catching worn drive rollers, kinked liners or gas leaks before they cause mid-job failure avoids costly delays on site.
- Extended machine life: removing conductive dust and spatter from internal components prevents overheating and short circuits that damage electronics.
- Compliance: documented service records demonstrate that welding equipment is maintained to AS/NZS 1674 and workplace safety standards.
- Lower consumable costs: systematic inspection means consumables are replaced on condition rather than prematurely or too late.
Benefits of digitising forms in MapTrack
When you digitise welding machine service procedures in MapTrack, you get:
- Field users can easily scan a QR code to complete a form on mobile. Unlimited users.
- Automatically get alerts when faults are identified.
- Link every form digitally as a PDF to the relevant asset, location or person.
- Receive a digital PDF copy with every submission to your email.
- Ability to share forms digitally.
- Build conditional logic (show or hide questions based on answers).
- Take pictures or attach photos. Not possible with a paper-based form.
- Electronic signatures.
- Edit forms later without reprinting.
- Restrict permissions (who can view, complete or approve).
- Build forms with AI (describe what you need and MapTrack suggests the form).
- Trigger work orders automatically when a fault is logged during an inspection.
- Track service intervals by hours, kilometres or calendar date in one place.
- Attach supplier invoices and parts receipts to each maintenance record.
Book a demo to see how MapTrack handles welding machine service procedures.
Try MapTrack free for 30 days
Full access to every feature. No credit card required. Per-asset pricing so you scale as your fleet grows.
- No credit card required
- 30 days free trial
- Cancel anytime
What to include in a welding machine quarterly service procedure
This welding machine quarterly service procedure covers 7 key areas:
- Power supply: inspect power cable and plug (damage, earth pin, insulation).
- Welding circuit: check welding leads and connectors, check earth clamp and cable.
- Wire feed system: inspect wire feeder mechanism (drive rollers, guides, tension), check wire liner condition.
- Gas system: inspect regulator, flow meter, hoses and fittings with leak test.
- Torch / gun: clean or replace contact tip and nozzle, inspect torch assembly.
- Internal / cooling: clean machine interior with compressed air, inspect cooling system (water-cooled torches).
- Output and general: test output voltage and amps, inspect machine casing, check duty cycle indicator.
How to use this welding machine quarterly service procedure
- Isolate the machine from the power supply. Record equipment details, serial number and process type at the top of the service procedure form.: Disconnect from the mains supply and wait for any capacitors to discharge. Record the machine make, model, serial number, welding process type (MIG, TIG, stick or multi-process) and current service hours or usage estimate.
- Inspect the power cable and plug for damage, earth pin condition and insulation integrity. Check welding leads, connectors, earth clamp and earth cable.: Run the full length of the power cable through your hands checking for cuts, burn marks and insulation damage. Verify the earth pin is intact and not bent. Inspect all welding lead connectors for tight, corrosion-free contact. Check the earth clamp jaw for firm grip and the earth cable for damage along its full length.
- Inspect the wire feeder mechanism: check drive rollers for wear, inlet/outlet guides and tension setting. Check the wire liner and replace if kinked or worn.: Inspect drive roller grooves for flattening or contamination. Verify the correct roller type is fitted for the wire diameter and material. Check inlet and outlet guide tubes for alignment. Remove and inspect the wire liner. Replace if kinked, flattened or causing erratic wire feed.
- Inspect the gas system: check regulator, flow meter, hoses and fittings. Perform a leak test on all gas connections.: Verify the regulator gauge reads zero when the cylinder is closed. Check hoses for cracks, kinks or burn damage. Apply soapy water to all fittings and connections with the gas turned on and check for bubbles indicating leaks.
- Clean or replace contact tips and nozzle (MIG/TIG). Inspect the torch/gun assembly including trigger, neck, handle and cable.: Replace contact tips that are worn, oval or have spatter buildup in the bore. Clean or replace the nozzle. Inspect the trigger switch for positive operation, the torch neck for cracks and the cable for insulation damage.
- Clean the machine interior with compressed air. Remove dust, metal particles and weld spatter from internal components.: Remove side panels and use dry, regulated compressed air (maximum 400 kPa) to blow out accumulated metal dust, grinding particles and spatter. Wear safety glasses and a dust mask. Pay particular attention to PCBs, contactor gaps, fan blades and ventilation channels.
- Inspect the cooling system (water-cooled torches): check coolant level, flow and hoses.: Verify the coolant reservoir is at the correct level with the specified coolant type. Run the cooling pump and check for flow through the torch and return line. Inspect hoses for kinks, leaks or deterioration.
- Reconnect to power and test output: check voltage and amps against settings. Inspect machine casing, wheels/frame and duty cycle indicator.: Reconnect to power and set the machine to a known output setting. Use a clamp meter or the machine display to verify voltage and current match the selected settings within manufacturer tolerance. Inspect the machine casing for cracks, the wheels or frame for damage, and the duty cycle indicator (if fitted) for correct operation.
- Record any defects or recommendations. Set the next service due date and sign off.: Document all findings, replaced consumables and any follow-up actions required. Set the next quarterly service due date. The technician and workshop supervisor both sign to confirm the service is complete and the machine is safe for use.
In MapTrack, you can schedule and track maintenance digitally. Each submission is stored as a timestamped PDF against the asset record.
Get the free template
Enter your email above to download the full welding machine quarterly service procedure as a PDF.
Back to download formHow often should you complete this service procedure?
Welding machines should receive a quarterly service covering electrical safety, consumable replacement, gas system integrity, internal cleaning, cooling system check and output testing. In heavy-use environments, monthly visual inspections of leads, connections and consumables are recommended between quarterly services.
AS/NZS 3760 specifies electrical test and tag intervals based on the operating environment. For construction sites and workshops classified as hostile, testing every three months is required. For general commercial premises, testing every twelve months is typical. Aligning the quarterly mechanical service with the AS/NZS 3760 test schedule ensures compliance is maintained with minimal disruption.
For welding machines in heavy-use environments (fabrication shops, construction sites), consider monthly cable and connection checks between quarterly services. In MapTrack, recurring maintenance schedules ensure every welding machine receives its quarterly service on time.
