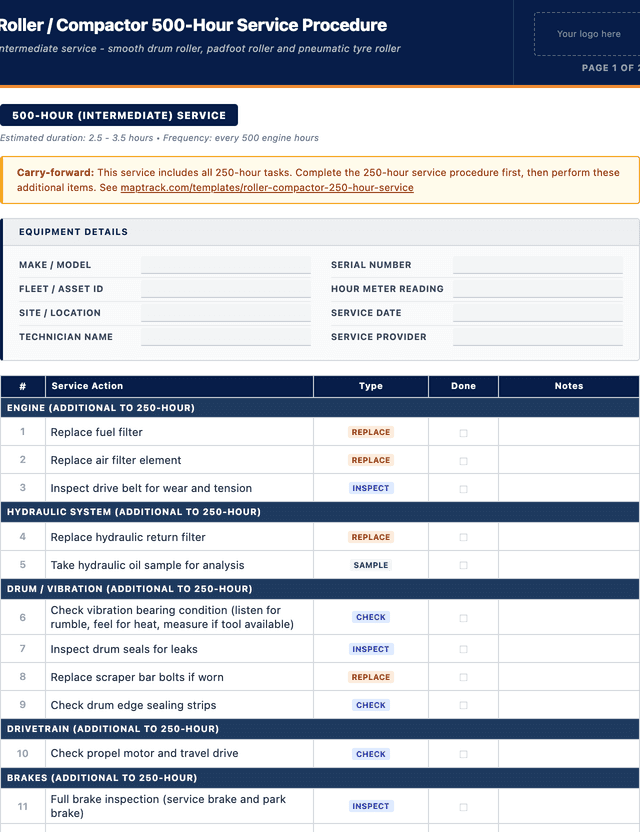

See the first part of the roller / compactor 500-hour service procedure below. Download the full version above.
What is a roller / compactor 500-hour service procedure?
A 500-hour service is the second tier (intermediate) of scheduled preventive maintenance for a roller or compactor. It is performed every 500 engine hours (or approximately every 8-12 weeks of full-time operation). The 500-hour service carries forward all 250-hour tasks (engine oil and filter change, grease points, fluid level checks, basic inspections) and adds more in-depth maintenance: replacing the fuel filter, replacing the air filter element, replacing the hydraulic return filter, checking vibration bearing condition, inspecting drum seals for leaks, checking propel motor and travel drive, full brake inspection (service and park brake), adjusting the park brake, inspecting the steering system, inspecting the drive belt, taking a hydraulic oil sample for analysis, servicing the water spray pump and filter, replacing worn scraper bar bolts, and checking drum edge sealing strips. It is typically performed by a qualified mechanic or fitter and takes 2.5 to 3.5 hours.
The 500-hour service is the critical checkpoint for vibration system health and hydraulic integrity on a roller compactor. At this interval, vibration bearings, exciter shaft seals and hydraulic pump components have been subjected to thousands of loading cycles and must be inspected for early signs of failure. In Australia, rollers are classified as plant under WHS Regulations 2011, and the PCBU must ensure they are maintained to manufacturer specifications.
Learn more about maintenance and work orders in MapTrack.
Benefits of using this roller / compactor 500-hour service procedure
- Vibration system protection: checking vibration bearings and drum seals at 500 hours catches wear before it causes catastrophic failure of the vibration motor or drum assembly.
- Early fault detection: hydraulic oil sampling catches contamination, metal particles and moisture before they damage pumps and valves.
- Brake safety: full brake inspection and park brake adjustment ensures reliable stopping on grades and during transport.
- Reduced breakdowns: replacing filters, checking the drive belt and servicing the water spray system prevents performance degradation and unplanned downtime.
- Compliance: documented service records at each interval demonstrate that equipment is maintained to WHS standards.
- Resale value: a complete service history with documented 250, 500 and 1,000-hour services increases the machine's value at trade-in or auction.
Benefits of digitising forms in MapTrack
When you digitise roller / compactor service procedures in MapTrack, you get:
- Field users can easily scan a QR code to complete a form on mobile. Unlimited users.
- Automatically get alerts when faults are identified.
- Link every form digitally as a PDF to the relevant asset, location or person.
- Receive a digital PDF copy with every submission to your email.
- Ability to share forms digitally.
- Build conditional logic (show or hide questions based on answers).
- Take pictures or attach photos. Not possible with a paper-based form.
- Electronic signatures.
- Edit forms later without reprinting.
- Restrict permissions (who can view, complete or approve).
- Build forms with AI (describe what you need and MapTrack suggests the form).
- Trigger work orders automatically when a fault is logged during an inspection.
- Track service intervals by hours, kilometres or calendar date in one place.
- Attach supplier invoices and parts receipts to each maintenance record.
Book a demo to see how MapTrack handles roller / compactor service procedures.
Try MapTrack free for 30 days
Full access to every feature. No credit card required. Per-asset pricing so you scale as your fleet grows.
- No credit card required
- 30 days free trial
- Cancel anytime
What to include in a roller / compactor 500-hour service procedure
This roller / compactor 500-hour service procedure covers 7 key areas:
- Engine: replace fuel filter, replace air filter element, inspect drive belt.
- Hydraulic system: replace hydraulic return filter, take hydraulic oil sample for laboratory analysis.
- Drum / vibration: check vibration bearing condition (listen, feel, measure), inspect drum seals for leaks, replace scraper bar bolts if worn, check drum edge sealing strips.
- Drivetrain: check propel motor and travel drive.
- Brakes: full brake inspection (service brake and park brake), adjust park brake.
- Steering: inspect steering system.
- Water spray: service water spray pump and filter.
How to use this roller / compactor 500-hour service procedure
- Complete the full 250-hour service procedure first (engine oil and filter change, grease points, fluid level checks, basic inspections, safety device testing). Use the 250-hour service checklist .: Work through every item on the 250-hour service checklist before beginning the additional 500-hour tasks. This ensures all minor-service items are completed as part of the intermediate service.
- Replace the fuel filter. Drain any trapped fuel from the filter housing before fitting the new element.: Shut off the fuel supply valve, remove the fuel filter housing and drain any trapped fuel into a suitable container. Install the new filter element, reassemble the housing and bleed air from the fuel system by cranking the engine or using the hand priming pump until fuel flows free of air bubbles.
- Replace the air filter element. Inspect the inner element and replace only if visibly damaged or due at 1,000 hours.: Remove the outer air filter element and check the inner safety element visually. Replace the inner element only if it shows visible damage, holes or excessive dust loading, or if the manufacturer specifies replacement at 1,000 hours. Install a new outer element and ensure the housing seal is seated correctly.
- Inspect the drive belt for wear, cracking and correct tension.: Check the drive belt for cracks, fraying, glazing and correct tension. Press the belt at the midpoint between pulleys and measure deflection against the manufacturer specification. Replace the belt if worn or if deflection exceeds the allowable range.
- Replace the hydraulic return filter. Before installing the new filter, take a hydraulic oil sample from the return line for laboratory analysis.: Depressurise the hydraulic system and remove the return filter element. Use a clean sample bottle to draw oil from the return line sampling point. Label the bottle with machine ID, hours and date, and send for particle count, moisture and metal analysis. Install the new return filter element and check the seal.
- Check vibration bearing condition: run the vibration system and listen for bearing rumble. After stopping, feel the bearing housings for excessive heat. Measure bearing play if tools are available. Record observations in the notes section.: Activate the vibration system at operating speed and listen carefully at each bearing housing for rumbling, grinding or knocking. After stopping vibration, immediately feel the bearing housings for abnormal heat compared to the surrounding drum shell. If a dial indicator is available, measure bearing end play and radial play. Record all observations for trend tracking.
- Inspect drum seals for oil leaks. Check scraper bar bolts and replace if worn. Check drum edge sealing strips for condition.: Inspect the drum end seals for oil weeping or active leaks, which indicate seal degradation. Check each scraper bar bolt for wear, elongation and correct torque. Replace any worn bolts. Inspect drum edge sealing strips for tears, hardening and correct contact with the drum surface.
- Check propel motor and travel drive operation in both directions.: Drive the roller forward and reverse at low speed, listening for unusual noise from the propel motor and travel drive. Check for smooth acceleration and deceleration. Any jerking, hesitation or abnormal noise indicates potential hydraulic motor or drive component wear.
- Perform a full brake inspection: test the service brake and park brake. Adjust the park brake to the manufacturer's specification.: Test the service brake by driving at low speed and applying the brake, checking for smooth, straight stopping without pulling. Test the park brake on a slight grade to confirm it holds the machine. Adjust the park brake cable or mechanism to the manufacturer specification if the brake does not hold securely.
- Inspect the steering system for wear and play.: Turn the steering through its full range and check for smooth operation. With the engine off, check for play in the steering cylinder, pins and linkage. Excessive play affects compaction accuracy and can be a safety risk when operating on grades.
- Service the water spray pump and replace the spray pump filter.: Remove and clean the water spray pump inlet filter. Replace if blocked or damaged. Test pump operation and check for adequate spray pressure at all nozzles. A functioning spray system is essential for preventing asphalt adhesion on smooth drum rollers.
- Start the engine and check for leaks, abnormal noises or warning lights. Record any defects or recommendations in the notes section. Set the next service due hours and sign off.: Start the engine and run at operating RPM. Walk around the machine checking for fluid leaks, then test all operational functions including vibration, propel and steering. Record all findings and set the next 500-hour and 1,000-hour service due hours. Obtain technician and supervisor signatures.
