Excavator 500-Hour Service Procedure
Intermediate service - tracked hydraulic excavator (all makes)
Engine (additional to 250-hour)
Hydraulic System (additional to 250-hour)
Undercarriage / Tracks (additional to 250-hour)
Drivetrain (additional to 250-hour)
Electrical (additional to 250-hour)
Cab (additional to 250-hour)
How to use: download the PDF, print or complete digitally on any device.
- PDF format, ready to print or fill on screen
- Use as-is or customise to suit your operation
- Go digital in MapTrack for photos, reminders and audit trails
Don't just download it - use it live. Start a free workspace with this excavator 500-hour service procedure already built, so your crew can run it from a phone.
Co-Founder & Commercial Director
Short answer
An excavator 500-hour service checklist records the intermediate service on a hydraulic excavator, typically filters, fluids, an oil sample, coolant test, undercarriage measurement and battery test. Fitters use it when the machine's maintenance schedule calls for a 500-hour service; tasks and intervals vary by model. Regulation 213 of the model WHS Regulations requires maintenance by a competent person following the manufacturer's recommendations.
Checked against Model WHS Regulations as at 5 December 2025 (cited within as the Work Health and Safety Regulations 2011) on by the MapTrack templates team. How we check templates
Key takeaways
- The MapTrack excavator 500-hour service procedure contains 16 checks across 6 sections. Sections covered: Engine (additional to 250-hour), Hydraulic System (additional to 250-hour), Undercarriage / Tracks (additional to 250-hour), Drivetrain (additional to 250-hour), Electrical (additional to 250-hour), Cab (additional to 250-hour).
- It falls every 500 engine hours, about every eight to twelve weeks in steady use, and carries forward every task due at 250 hours first.
- Take the hydraulic oil sample from the return line at operating temperature before fitting new filters, and label it with the fleet ID, date and hours.
- Measure track pad height, link pitch and roller and idler wear at three or more points per side, then compare against the maker's wear limits to forecast remaining life.
- Service the outer air filter element as the maker specifies, and leave the inner safety element in place until the maker says to replace it, since removing it or blowing it out may let dust into the engine.
- For demolition, quarry, breaker or marine work, check the maker's severe-duty schedule and shorten hydraulic filter and oil sampling intervals where it calls for that.
Enter your email below to download this excavator 500-hour service procedure as a ready-to-use PDF.
Used by construction, mining and field service teams
What is an excavator 500-hour service procedure?
A 500-hour service is the second tier (intermediate) of scheduled preventive maintenance for a tracked hydraulic excavator. It is performed every 500 engine hours (or approximately every 8-12 weeks of full-time operation). The 500-hour service carries forward all 250-hour tasks (engine oil and filter change, grease points, fluid level checks, basic inspections) and adds more in-depth maintenance: replacing the fuel filter, replacing the outer air filter element, testing coolant concentration, adjusting fan belt tension, replacing hydraulic return and pilot filters, taking a hydraulic oil sample for laboratory analysis, measuring undercarriage wear dimensions, checking valve clearance, load testing the battery, cleaning earth straps, and servicing the A/C system. It is typically performed by a qualified mechanic or fitter and takes 3 to 4 hours.
From an operational standpoint, the 500-hour service is the most significant checkpoint for hydraulic system health. Hydraulic oil sampling at this interval catches contamination, wear metals and moisture before they cause expensive pump or valve failures. In Australia, excavators used on construction and mining sites must be maintained in accordance with the WHS Regulations 2011, Chapter 5 (Plant and Structures), which places a duty on the PCBU to ensure that plant is maintained to prevent risks to health and safety. AS 20474.5:2025 sets safety requirements for how hydraulic excavators are designed and built. Keeping documented records of every 500-hour service is essential for demonstrating compliance during site audits, supporting insurance claims and preserving the machine's resale value at trade-in or auction.
Learn more about maintenance and work orders in MapTrack.
Get the free template
Enter your email above to download the full excavator 500-hour service procedure as a PDF.
Benefits of using this excavator 500-hour service procedure
- Early fault detection: hydraulic oil sampling at 500 hours catches contamination, metal particles and moisture before they damage pumps and valves.
- Undercarriage cost control: measuring track pad height, link pitch and roller wear at regular intervals lets you forecast rebuild costs and avoid unexpected failures.
- Extended component life: replacing hydraulic and fuel filters on schedule prevents contamination from cascading through the system.
- Reduced breakdowns: valve clearance checks and belt adjustments prevent performance degradation and unplanned downtime.
- Compliance: documented service records at each interval demonstrate that equipment is maintained to WHS standards.
- Resale value: a complete service history with documented 250, 500 and 1,000-hour services increases the machine's value at trade-in or auction.
Benefits of digitising forms in MapTrack
When you digitise excavator service procedures in MapTrack, you get:
- Field users can easily scan a QR code to complete a form on mobile. Unlimited users.
- Email the right people when a form is submitted, with an automation you set up.
- File every completed form against the asset, location or person it covers.
- Download any completed form as a PDF, with failed answers listed at the top.
- Fill in forms offline; they upload when the device is back online.
- Build conditional logic (show or hide questions based on answers).
- Take pictures or attach photos. Not possible with a paper-based form.
- Electronic signatures.
- Edit forms later without reprinting.
- Set who can view, fill in or edit forms with user roles.
- Upload a paper form (PDF, Word, Excel or a photo) and MapTrack's AI builds a digital version for you to check.
- Raise a work order from a submitted form with an automation you set up.
- Track service intervals by hours, kilometres or calendar date in one place.
- Attach supplier invoices and parts receipts to each maintenance record.
Book a demo to see how MapTrack handles excavator service procedures.
Try MapTrack free
Full access to every feature. No credit card required. Per-asset pricing so you scale as your fleet grows.
- No credit card required
1-2 days/week saved
“Bloody amazing! We used to spend 1-2 days a week tracking and managing our generators alone.”
Steve McAllister
Asset Coordinator, Saunders International
What to include in an excavator 500-hour service procedure
This excavator 500-hour service procedure covers 6 key areas:
- Engine: replace fuel filter element, replace outer air filter element, test coolant concentration (refractometer), adjust fan belt tension.
- Hydraulic system: replace hydraulic return filter, replace hydraulic pilot filter (if fitted), take hydraulic oil sample for laboratory analysis.
- Undercarriage / tracks: measure track pad height (mm), measure track link pitch, measure roller/idler wear (mm), record all measurements for trend monitoring.
- Drivetrain: check valve clearance and adjust if required.
- Electrical: test battery load (CCA), clean and tighten all earth straps.
- Cab: check and clean A/C condenser, test A/C operation and refrigerant.
How to use this excavator 500-hour service procedure
- Complete the full 250-hour service procedure first (engine oil and filter change, grease points, fluid level checks, basic inspections, safety device testing). Use the 250-hour service checklist .: Verify all 250-hour items are completed and any defects documented before proceeding to the 500-hour specific tasks. The cumulative service model requires all lower-tier items to be done first.
- Replace the fuel filter element. Drain any trapped fuel from the filter housing before fitting the new element.: Place a drip tray under the filter housing. Open the drain valve to remove trapped fuel, then unscrew the filter bowl and replace the element. Prime the fuel system by cranking with the fuel shut-off open until fuel pressure builds.
- Replace the outer air filter element. Inspect the inner element and replace only if visibly damaged or due at 1,000 hours.: Remove the outer element carefully to prevent debris from entering the intake. Inspect the inner safety element for tears, holes or damaged seals. The inner element is typically replaced at the 1,000-hour service unless visibly compromised.
- Test coolant concentration using a refractometer. The freeze/boil protection should match your operating climate. Adjust the mixture if needed.: Draw a coolant sample from the radiator or expansion tank. Place a drop on the refractometer and read the freeze point. For most Australian conditions a 50/50 ethylene glycol mix providing protection to minus 36 degrees Celsius is standard. Adjust the concentration by adding concentrate or deionised water as required.
- Check and adjust fan belt tension to the manufacturer's specification. Replace the belt if cracked or glazed.: Measure belt deflection at the midpoint between pulleys using a belt tension gauge. Typical deflection is 10 to 15 mm for V-belts. Inspect the belt surface for cracking, glazing or fraying. Replace the belt if any defects are found.
- Replace the hydraulic return filter and hydraulic pilot filter (if fitted). Before installing new filters, take a hydraulic oil sample from the return line for laboratory analysis.: Collect the oil sample from the return line sample port using a clean bottle while the system is at operating temperature. Label the sample with the machine fleet ID, date and hours. Replace both the return and pilot filters with genuine or OEM-equivalent elements.
- Measure undercarriage wear: track pad height (mm), track link pitch, roller and idler wear dimensions. Record all readings on the form for trend comparison against previous services.: Use a vernier calliper or ultrasonic wear gauge to measure each component. Record measurements at a minimum of three points per side. Compare readings to the manufacturer wear limits and to the previous 500-hour service data to calculate the wear rate and forecast remaining life.
- Check valve clearance with the engine cold and adjust to the manufacturer's specification if out of tolerance.: Remove the valve cover and use feeler gauges to measure each valve clearance. Typical intake clearance is 0.20 to 0.30 mm and exhaust is 0.35 to 0.45 mm, but always refer to the manufacturer specification. Adjust using the lock nut and adjusting screw method.
- Load test the battery (CCA). Clean and tighten all earth straps and terminal connections.: Use a digital battery tester to measure cold cranking amps (CCA) and compare to the battery rating. A reading below 75% of the rated CCA indicates the battery should be replaced. Clean terminals with a wire brush and apply terminal protector spray.
- Check and clean the A/C condenser (blow out with compressed air from inside out). Test A/C operation and refrigerant pressure.: Blow compressed air through the condenser from the engine side outward to dislodge trapped dust and debris. Test the A/C by running the system for 10 minutes and measuring vent temperature and high/low side refrigerant pressures against the manufacturer specification.
- Start the engine and check for leaks, abnormal noises or warning lights. Record any defects or recommendations in the notes section. Set the next service due hours and sign off.: Run the engine to operating temperature and cycle all functions. Walk around the machine checking for new fluid leaks. Confirm all gauges are within the normal range. Set the next 250-hour, 500-hour and 1,000-hour due points and sign off.
In MapTrack, you can schedule and track maintenance digitally, by date or meter reading. Each submission is stored as a timestamped PDF against the asset record.
Get the free templateEnter your email above to download the full excavator 500-hour service procedure as a PDF.Back to download formHow often should you complete this service procedure?
A 500-hour service should be performed every 500 engine hours, which typically equates to every 8 to 12 weeks of full-time operation. The service carries forward all 250-hour tasks. For excavators in severe-duty applications, consider shortening the hydraulic filter interval and performing oil sampling more frequently. In MapTrack, set up meter-based maintenance triggers at 250-hour and 500-hour intervals so work orders are generated automatically as each machine approaches its service point.
For excavators working in severe-duty applications such as demolition, quarry or marine environments, consider shortening the hydraulic filter and sampling interval to 400 hours. Undercarriage wear measurements taken at each 500-hour service should be trended over time to forecast rebuild timing and budget accordingly. In MapTrack, configure meter-based triggers at both 250-hour and 500-hour intervals so work orders are generated automatically as each machine approaches its service point, eliminating reliance on manual hour tracking across the fleet.
Try MapTrack free
Full access to every feature. No credit card required. Per-asset pricing so you scale as your fleet grows.
- No credit card required
Frequently asked questions
Applicable regulatory standards
This template is a starting point. Check the current requirements that apply to your equipment, work and location. The template alone does not establish compliance.
| Standard | Edition | Clauses this template relies on | Source |
|---|---|---|---|
| Model Work Health and Safety RegulationsMaintenance, inspection and testing by a competent person, following the manufacturer's or a competent person's recommendations. | Model WHS Regulations as at 5 December 2025 (cited within as the Work Health and Safety Regulations 2011) |
| Safe Work Australia (drafted by the Parliamentary Counsel's Committee) |
| Model Code of Practice: Managing risks of plant in the workplaceMaintaining plant to the manufacturer's instructions, and isolating energy sources before maintenance. | November 2024 version (reviewed May 2018; amended 2021, 2023 and 2024) |
| Safe Work Australia |
| Earth-moving machinery - Safety, Part 5: Requirements for hydraulic excavators (ISO 20474-5:2017, MOD)Safety requirements for how hydraulic excavators are designed and built. It is not a service schedule. | AS 20474.5:2025 | Whole instrument | Standards AustraliaSold by the publisher |
| Earth-moving machinery - Safety, Part 1: General requirements (ISO 20474-1:2017, MOD)General safety requirements for earth-moving machinery, read with Part 5 for excavators. | AS 20474.1:2025 | Whole instrument | Standards AustraliaSold by the publisher |
| Earth-moving machinery - Basic types - Identification and vocabularyDefines the earth-moving machine families and terms. Terminology only, not service content. | ISO 6165:2022 (Edition 7) |
| International Organization for Standardization (ISO)Sold by the publisher |
Model Work Health and Safety Regulations
Edition: Model WHS Regulations as at 5 December 2025 (cited within as the Work Health and Safety Regulations 2011)
Maintenance, inspection and testing by a competent person, following the manufacturer's or a competent person's recommendations.
- reg 213: Plant must be maintained, inspected and, if necessary, tested by a competent person, following manufacturer or competent person recommendations; annual inspection applies only if neither is practicable.
- Part 5.1: General duties for plant and structures for designers, manufacturers, importers, suppliers, installers and those managing or controlling plant.
Safe Work Australia (drafted by the Parliamentary Counsel's Committee)
Model Code of Practice: Managing risks of plant in the workplace
Edition: November 2024 version (reviewed May 2018; amended 2021, 2023 and 2024)
Maintaining plant to the manufacturer's instructions, and isolating energy sources before maintenance.
- Section 3.6: Maintenance, repair and cleaning of plant, following manufacturer instructions and by competent people.
- Section 4.5: Isolating energy sources before maintenance, repair or cleaning, with lock-out as the most effective isolation procedure.
Earth-moving machinery - Safety, Part 5: Requirements for hydraulic excavators (ISO 20474-5:2017, MOD)
Edition: AS 20474.5:2025
Safety requirements for how hydraulic excavators are designed and built. It is not a service schedule.
Standards AustraliaSold by the publisher
Earth-moving machinery - Safety, Part 1: General requirements (ISO 20474-1:2017, MOD)
Edition: AS 20474.1:2025
General safety requirements for earth-moving machinery, read with Part 5 for excavators.
Standards AustraliaSold by the publisher
Earth-moving machinery - Basic types - Identification and vocabulary
Edition: ISO 6165:2022 (Edition 7)
Defines the earth-moving machine families and terms. Terminology only, not service content.
- 3.2: Machine families: the basic types of earth-moving machinery and their terms.
International Organization for Standardization (ISO)Sold by the publisher
Each source was read at its publisher and the page checked on 26 October 2026. The publisher's current text is the authority.

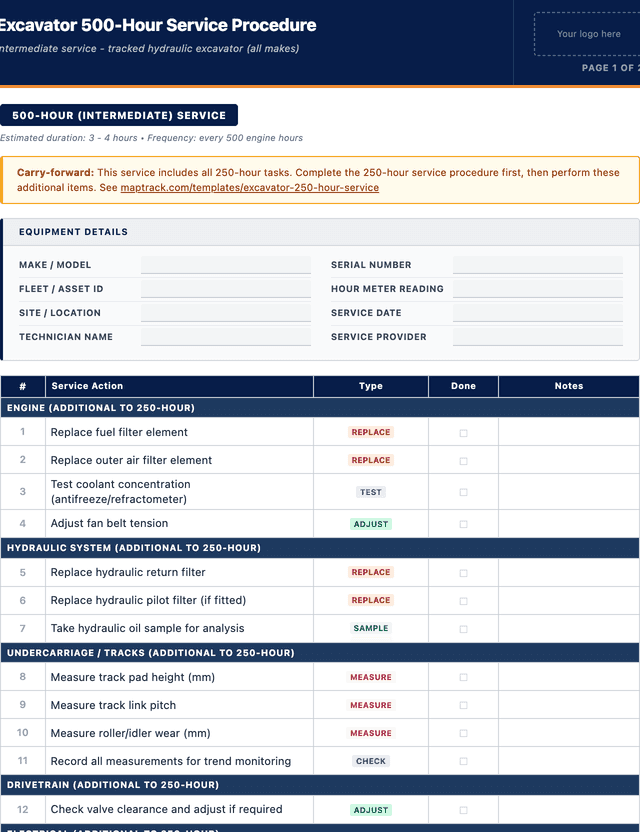

Excavator 500-hour service procedure preview
