Dozer 500-Hour Service Procedure

Intermediate service - tracked dozer / bulldozer (all makes)

Live form
0 of 14 checks

Engine (additional to 250-hour)

1Replace fuel filter element
2Replace outer air filter element
3Check and adjust valve clearance
4Test coolant concentration (refractometer)

Hydraulic System (additional to 250-hour)

5Replace hydraulic return filter
6Take hydraulic oil sample for analysis

Drivetrain (additional to 250-hour)

7Check final drive oil levels (both sides)
8Inspect steering clutch/brake system (adjustment, lining thickness)

Undercarriage / Tracks (additional to 250-hour)

9Measure track roller wear (record measurements)
10Measure idler wear (record measurements)
11Measure sprocket wear (record measurements)

Cab (additional to 250-hour)

12Service A/C system (if fitted) - check operation and refrigerant
13Inspect cab mounting bushes

Structural (additional to 250-hour)

14Check all guards and covers are fitted and secure

How to use: download the PDF, print or complete digitally on any device.

  • PDF format, ready to print or fill on screen
  • Use as-is or customise to suit your operation
  • Go digital in MapTrack for photos, reminders and audit trails

Or set it up in MapTrack

  • Fill it in on a phone, attach photos to any check
  • Automatic reports and audit trails
  • The same checks as the PDF, ready to configure

Free trial. No credit card. Personal email accepted.

Don't just download it - use it live. Start a free workspace with this dozer / bulldozer 500-hour service procedure already built, so your crew can run it from a phone.

Jarrod Milford

Jarrod Milford

Co-Founder & Commercial Director

Updated 26 October 2026
Also see:Heavy Equipment GPS Tracking →Maintenance and work orders →Best CMMS software →MapTrack vs MaintainX →

Short answer

A dozer 500-hour service checklist records the intermediate service on a tracked dozer: filter changes, undercarriage wear measurement, steering clutch and brake checks, valve clearances, final drive levels and hydraulic oil sampling. A qualified fitter completes it every 500 engine hours, as the manufacturer schedules. Regulation 213 of the model WHS Regulations requires maintenance following the manufacturer's recommendations.

Checked against Model WHS Regulations as at 5 December 2025 (cited within as the Work Health and Safety Regulations 2011) on by the MapTrack templates team. How we check templates

Key takeaways

  • The MapTrack dozer / bulldozer 500-hour service procedure contains 14 checks across 6 sections. Sections covered: Engine (additional to 250-hour), Hydraulic System (additional to 250-hour), Drivetrain (additional to 250-hour), Undercarriage / Tracks (additional to 250-hour), Cab (additional to 250-hour), Structural (additional to 250-hour).
  • Regulation 213: a competent person maintains and inspects plant following the manufacturer's recommendations, else a competent person's.
  • No model WHS regulation requires records for every item of plant; record duties cover registered plant (reg 237) and presence-sensing safeguarding (reg 226).
  • Trend undercarriage, oil analysis and steering clutch readings across services to plan rebuilds in planned downtime.
  • Only AS 2294.1-1997 remains current; the ROPS and FOPS test parts 2 to 4 were withdrawn with no listed replacement.

Enter your email below to download this dozer / bulldozer 500-hour service procedure as a ready-to-use PDF.

Used by construction, mining and field service teams

Saunders InternationalMineral ResourcesSupagasHacer GroupMetro TunnelUltrabuilt

What is a dozer / bulldozer 500-hour service procedure?

A 500-hour service is the second tier of scheduled preventive maintenance for a tracked dozer (bulldozer). It is performed every 500 engine hours and is classified as an intermediate service. The procedure carries forward all 250-hour tasks and adds filter replacements (fuel, air, hydraulic), undercarriage wear measurement, steering clutch/brake inspection, valve clearance check, final drive oil level check, hydraulic oil sampling and A/C service. These additional items address components that wear or degrade over longer intervals and require more thorough inspection than the minor service. It is typically performed by a qualified mechanic or fitter.

The 500-hour interval introduces measurement-based condition monitoring that transforms maintenance from a reactive activity into a data-driven planning tool. Undercarriage wear measurements, hydraulic oil analysis results and steering clutch lining readings are trended over successive services to forecast component replacement timing, enabling fleet managers to budget accurately and schedule rebuilds during planned downtime rather than responding to failures. Under the WHS Regulations 2011, Chapter 5, equipment controllers must ensure that plant is maintained so it remains without risk to health and safety. WHS Regulation 215 requires operator protective devices such as ROPS and FOPS to be provided, maintained and used, and AS 2294.1-1997 sets their design requirements, so keep them structurally sound and unmodified. A complete 500-hour service record provides the documentation trail that supports compliance during workplace safety inspections, insurer audits and asset disposal. Operators who defer the 500-hour interval lose the ability to trend critical wear data and increase the risk of undetected component degradation leading to costly secondary failures.

Learn more about maintenance and work orders in MapTrack.

Get the free template

Enter your email above to download the full dozer / bulldozer 500-hour service procedure as a PDF.

Download free PDF

Benefits of using this dozer / bulldozer 500-hour service procedure

  • Reduced breakdowns: regular filter replacement and fluid analysis prevent engine, hydraulic and drivetrain failures that cause unplanned downtime.
  • Extended component life: measuring undercarriage wear and inspecting steering clutch linings helps plan component replacements before they fail catastrophically.
  • Lower repair costs: a 500-hour service catches issues like contaminated hydraulic oil or worn brake linings before they cause expensive secondary damage.
  • Operator safety: inspecting braking systems, guards and structural components at regular intervals reduces the risk of on-site incidents.
  • Compliance: documented service records demonstrate that equipment is maintained to WHS standards, supporting insurance and regulatory obligations.
  • Resale value: a complete service history with documented 250, 500 and 1,000-hour services increases the machine's value at trade-in or auction.

Benefits of digitising forms in MapTrack

When you digitise dozer service procedures in MapTrack, you get:

  • Field users can easily scan a QR code to complete a form on mobile. Unlimited users.
  • Email the right people when a form is submitted, with an automation you set up.
  • File every completed form against the asset, location or person it covers.
  • Download any completed form as a PDF, with failed answers listed at the top.
  • Fill in forms offline; they upload when the device is back online.
  • Build conditional logic (show or hide questions based on answers).
  • Take pictures or attach photos. Not possible with a paper-based form.
  • Electronic signatures.
  • Edit forms later without reprinting.
  • Set who can view, fill in or edit forms with user roles.
  • Upload a paper form (PDF, Word, Excel or a photo) and MapTrack's AI builds a digital version for you to check.
  • Raise a work order from a submitted form with an automation you set up.
  • Track service intervals by hours, kilometres or calendar date in one place.
  • Attach supplier invoices and parts receipts to each maintenance record.

Book a demo to see how MapTrack handles dozer service procedures.

Try MapTrack free

Full access to every feature. No credit card required. Per-asset pricing so you scale as your fleet grows.

Start free trial
  • No credit card required

1-2 days/week saved

“Bloody amazing! We used to spend 1-2 days a week tracking and managing our generators alone.”
Saunders International

Steve McAllister

Asset Coordinator, Saunders International

What to include in a dozer / bulldozer 500-hour service procedure

This dozer / bulldozer 500-hour service procedure covers 6 key areas:

  • Engine: replace fuel filter, replace outer air filter, check and adjust valve clearance, test coolant concentration.
  • Hydraulic system: replace hydraulic return filter, take hydraulic oil sample for analysis.
  • Drivetrain: check final drive oil levels (both sides), inspect steering clutch/brake system (adjustment, lining thickness).
  • Undercarriage / tracks: measure track roller, idler and sprocket wear (record measurements for trend monitoring).
  • Cab: service A/C system (if fitted), inspect cab mounting bushes.
  • Structural: check all guards and covers are fitted and secure.

How to use this dozer / bulldozer 500-hour service procedure

  1. Complete the full 250-hour service procedure first (engine oil, filter, grease, fluid checks, blade/ripper inspection, track tension, electrical and safety).: Use the 250-hour checklist to complete engine oil and filter, all grease points, fluid level checks, blade and ripper inspection, track tension adjustment, battery, lights, horn and safety device checks. Sign off the 250-hour form before starting 500-hour items.
  2. Replace the fuel filter element and outer air filter element.: Install a new fuel filter element and prime the fuel system to remove air locks. Replace the outer air filter element. Inspect the inner safety element for damage but do not clean or replace it unless visibly damaged, as it protects the engine from dust during outer element changes.
  3. Replace the hydraulic return filter. Take a hydraulic oil sample from the sample port and label the bottle with machine ID, hours and date.: Install a new hydraulic return filter of the correct micron rating. Use a clean sample bottle and flush a small amount of oil through the sampling port before collecting to avoid contamination. Label with machine ID, hours, date and oil brand. Send to the laboratory within 48 hours.
  4. Check final drive oil levels on both sides. Top up or note for replacement if contaminated.: Remove the level plug on each final drive with the plug at the 3 o-clock position (or as specified by the manufacturer). The oil should reach the bottom of the level plug hole. If the oil appears milky (water contamination) or contains metal particles, schedule a full oil change and investigation.
  5. Inspect the steering clutch/brake system. Check adjustment and measure lining thickness. Record measurements.: For hydrostatic drive dozers, check for steering responsiveness and unusual noises. For mechanical clutch/brake models, measure the lining thickness with a vernier calliper and compare to the manufacturer minimum. Check adjustment to ensure equal engagement on both sides.
  6. Measure undercarriage wear: track roller, idler and sprocket dimensions. Record all measurements for trend monitoring.: Use undercarriage wear gauges or a vernier calliper to measure track roller flange height, idler tread width and sprocket tooth height. Record measurements at three points per component and compare to the manufacturer wear limits. Enter data into the trend monitoring chart to forecast component replacement timing.
  7. Check and adjust valve clearance per manufacturer specifications.: With the engine cold and at the specified piston position, use feeler gauges to measure intake and exhaust valve clearances. Adjust using the locknut and screw method to the manufacturer specification. Typical clearances vary by engine model, so always reference the engine service manual.
  8. Test coolant concentration using a refractometer. Adjust mix ratio if needed.: Draw a coolant sample from the radiator or expansion tank. Place a drop on the refractometer prism and read the freeze point. The target is typically minus 36 degrees Celsius (50/50 mix). If the concentration is low, add concentrated coolant. If too high, add clean water to dilute.
  9. Service the A/C system (if fitted). Check operation and refrigerant level. Inspect cab mounting bushes.: Run the A/C system and check outlet temperature using a thermometer. If cooling is inadequate, check the refrigerant charge with manifold gauges. Clean the condenser of dust and debris. Inspect cab mounting bushes for cracking or excessive compression that could cause cab vibration.
  10. Verify all guards and covers are fitted and secure. Start the engine and check for leaks, abnormal noises or warning lights.: Walk around the machine and confirm every guard and access cover is in place and secured with all fasteners. Start the engine and monitor instruments for five minutes. Check for oil, coolant and hydraulic leaks underneath. Record all defects found.
  11. Set the next service due hours (next 500-hour and next 1,000-hour intervals). Sign off and update the machine's maintenance log.: Calculate the next 500-hour and 1,000-hour service due hours from the current reading. Update the service sticker in the cab, the machine maintenance log and the fleet management system. Obtain sign-off from the service technician.

In MapTrack, you can schedule and track maintenance digitally, by date or meter reading. Each submission is stored as a timestamped PDF against the asset record.

Get the free templateEnter your email above to download the full dozer / bulldozer 500-hour service procedure as a PDF.Back to download form

How often should you complete this service procedure?

The 500-hour intermediate service is performed every 500 engine hours, which equates to roughly every two to three months of full-time dozer operation. It falls at every second 250-hour service interval. The 500-hour service adds measurement-based inspections (undercarriage wear, steering clutch linings, valve clearance) and filter replacements that go beyond the 250-hour scope.

Between 500-hour services, the 250-hour minor service covers engine oil, grease, blade inspection and basic safety checks. Daily pre-start checks by the operator are mandatory before each shift. The 1,000-hour major service is due at every second 500-hour interval and adds hydraulic oil change, coolant flush, final drive oil change and more thorough component inspections. Always refer to the manufacturer service manual for your specific model and operating conditions.

Try MapTrack free

Full access to every feature. No credit card required. Per-asset pricing so you scale as your fleet grows.

Start free trial
  • No credit card required

Frequently asked questions

A 500-hour dozer service is an intermediate service that carries forward all 250-hour tasks (engine oil and filter, grease points, fluid level checks, blade and ripper inspection) and adds fuel filter replacement, outer air filter replacement, hydraulic return filter replacement, coolant concentration testing, valve clearance check, final drive oil level check, steering clutch/brake inspection (adjustment and lining thickness), undercarriage wear measurement (track rollers, idlers, sprockets), hydraulic oil sampling for analysis, A/C service (if fitted), cab mounting bush inspection and a check that all guards are secure. It takes approximately 3 to 5 hours.

Beyond the 250-hour service, the 500-hour interval adds: replacing the fuel filter element, replacing the outer air filter element, replacing the hydraulic return filter, testing coolant concentration with a refractometer, checking and adjusting valve clearance, checking final drive oil levels on both sides, inspecting the steering clutch/brake system, measuring track roller, idler and sprocket wear, taking a hydraulic oil sample for laboratory analysis, servicing the A/C system, inspecting cab mounting bushes and verifying all guards and covers are secure.

Hydraulic oil sampling at the 500-hour interval allows you to detect contamination, metal particles or moisture in the hydraulic system before they cause pump or valve damage. Laboratory analysis reports on particle count, viscosity, water content and wear metals. This helps you decide whether the hydraulic oil can continue to the 1,000-hour full change or needs early replacement. Sampling is far cheaper than replacing a hydraulic pump.

The undercarriage is the most expensive wear system on a tracked dozer, accounting for up to 50% of total maintenance costs over the machine life. Measuring track roller, idler and sprocket dimensions at the 500-hour interval creates a wear trend that accurately predicts when each component will reach the manufacturer replacement limit. This data allows fleet managers to budget for undercarriage rebuilds, schedule component turns or replacements during planned downtime, and avoid the much higher cost of running components to catastrophic failure.

Under the WHS Regulations 2011, Chapter 5, a PCBU must ensure that plant is maintained so it remains without risk to health and safety, and records are mandatory for registered plant (regulation 237) and plant with presence-sensing safeguarding (regulation 226). WHS Regulation 215 requires operator protective devices such as ROPS and FOPS to be provided, maintained and used, so inspect them and keep them unmodified. State and territory regulators may require registration of certain plant items. A documented service history aligned with the manufacturer schedule demonstrates compliance during workplace safety inspections and insurer audits. Records should include dates, hours, tasks completed, parts replaced and the name of the technician.

Yes, this dozer 500-hour service checklist is completely free to download as a PDF. No account or signup is required. The checklist covers all 250-hour carry-forward tasks plus filter replacements, undercarriage measurement, steering clutch inspection, valve clearance check and hydraulic oil sampling. For teams wanting to move beyond paper forms, MapTrack offers a digital version that raises each service work order from the hour-meter reading and stores completed records in the cloud for instant retrieval during audits.

Applicable regulatory standards

This template is a starting point. Check the current requirements that apply to your equipment, work and location. The template alone does not establish compliance.

  • Model Work Health and Safety Regulations

    Edition: Model WHS Regulations as at 5 December 2025 (cited within as the Work Health and Safety Regulations 2011)

    Maintenance by a competent person per the manufacturer; record duties apply to presence-sensing safeguarding and registered plant only.

    • reg 213: Plant must be maintained, inspected and, if necessary, tested by a competent person, following manufacturer or competent person recommendations; annual inspection applies only if neither is practicable.
    • Chapter 5: Plant and structures: general duties for plant, duties for registered plant, and registration of plant designs and items of plant.
    • reg 226: Records of tests, inspections and maintenance must be kept for plant with a presence-sensing safeguarding system.
    • reg 237: Records of tests, inspections, maintenance and alterations must be kept for plant required to be registered.

    Safe Work Australia (drafted by the Parliamentary Counsel's Committee)

  • Model Work Health and Safety Act (Model Work Health and Safety Bill)

    Edition: Model WHS Bill as at 5 December 2025 (includes the Model WHS Legislation Amendment (Incident Notification) 2025)

    Plant must be without risks to health and safety, so far as reasonably practicable.

    • s 21: The person managing or controlling fixtures, fittings or plant at a workplace must ensure, so far as reasonably practicable, they are without risks to health and safety.

    Safe Work Australia (drafted by the Parliamentary Counsel's Committee)

  • Model Code of Practice: Managing risks of plant in the workplace

    Edition: November 2024 version (reviewed May 2018; amended 2021, 2023 and 2024)

    Guidance on maintaining and repairing plant, and isolating energy sources before the work.

    • Section 3.6: Maintenance, repair and cleaning of plant, following manufacturer instructions and by competent people.
    • Section 4.5: Isolating energy sources before maintenance, repair or cleaning, with lock-out as the most effective isolation procedure.

    Safe Work Australia

  • Earth-moving machinery - Protective structures, Part 1: General

    Edition: AS 2294.1-1997

    AS 2294.1-1997, general requirements for protective structures. Parts 2 to 4 (ROPS and FOPS tests) are withdrawn.

    Standards AustraliaSold by the publisher

Each source was read at its publisher and the page checked on 26 October 2026. The publisher's current text is the authority.

Check the current source

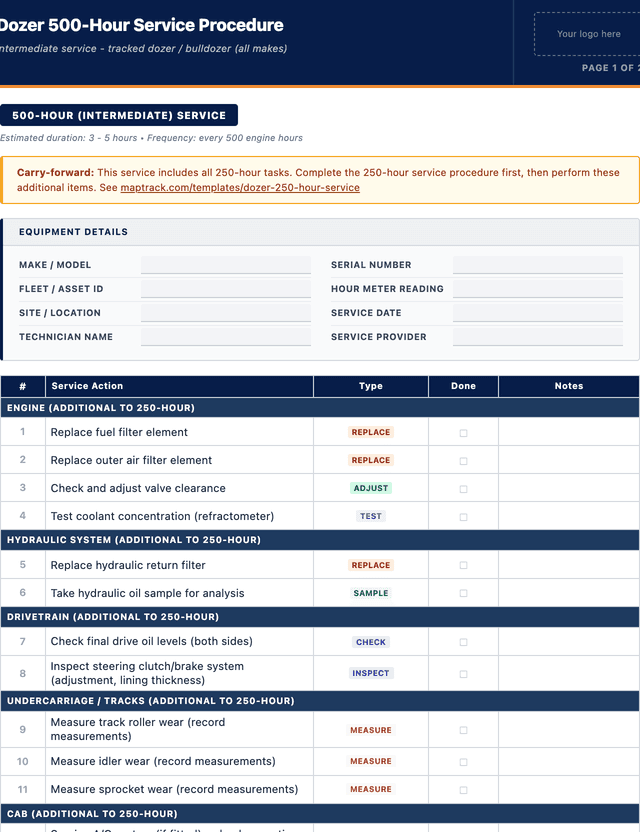

Dozer / bulldozer 500-hour service procedure preview

Dozer / bulldozer 500-hour service procedure template preview showing fields and layout

The numbers behind this dozer / bulldozer 500-hour service procedure

The pages below gather the figures behind this kind of check. Each figure on them carries its source and date, so you can quote it in a toolbox talk, a budget case or a board paper without chasing the original report.

Get the free template

Enter your email above to download the full dozer / bulldozer 500-hour service procedure as a PDF.

Download free PDF

Embed this free template on your website

Run an industry blog, trade association site, or training resource? Drop a preview of this free dozer / bulldozer 500-hour service procedure straight into your page. The snippet is self-contained, needs no scripts, and links readers back to the full free template.

<div style="max-width:480px;font-family:system-ui,-apple-system,'Segoe UI',Roboto,sans-serif;border:1px solid #E5E7EB;border-radius:12px;padding:20px;background:#ffffff;">
  <p style="font-size:12px;font-weight:700;letter-spacing:0.05em;text-transform:uppercase;color:#071D49;margin:0;">Free template</p>
  <p style="font-size:18px;font-weight:700;color:#071D49;margin:6px 0 0;">Dozer / bulldozer 500-hour service procedure</p>
  <ul style="margin:12px 0 0;padding-left:18px;color:#374151;font-size:14px;line-height:1.6;">
    <li style="margin:4px 0;">Engine: replace fuel filter, replace outer air filter, check and adjust valve clearance, test coolant concentration.</li>
    <li style="margin:4px 0;">Hydraulic system: replace hydraulic return filter, take hydraulic oil sample for analysis.</li>
    <li style="margin:4px 0;">Drivetrain: check final drive oil levels (both sides), inspect steering clutch/brake system (adjustment, lining thickness).</li>
    <li style="margin:4px 0;">Undercarriage / tracks: measure track roller, idler and sprocket wear (record measurements for trend monitoring).</li>
    <li style="margin:4px 0;">Cab: service A/C system (if fitted), inspect cab mounting bushes.</li>
    <li style="margin:4px 0;">Structural: check all guards and covers are fitted and secure.</li>
  </ul>
  <p style="font-size:13px;color:#6B7280;margin:14px 0 0;padding-top:12px;border-top:1px solid #E5E7EB;">Free <a href="https://www.maptrack.com/templates/dozer-500-hour-service" style="color:#071D49;font-weight:600;text-decoration:none;">Dozer / bulldozer 500-hour service procedure</a> by MapTrack</p>
</div>

Free to reuse, including commercially. This template is published under a Creative Commons Attribution 4.0 licence. Copy it, adapt it, put it on your own site or in your own docs. All we ask is that you credit MapTrack with a link back to this page. The snippet above already includes that credit, so if you use it as-is you’re covered.

Cite this template

Writing about this topic? You’re welcome to quote this checklist. Here’s the wording to use so your readers can find the original.

The MapTrack dozer / bulldozer 500-hour service procedure contains 14 checks across 6 sections.

Short attribution
MapTrack Dozer / bulldozer 500-hour service procedure, https://www.maptrack.com/templates/dozer-500-hour-service
Reference list
MapTrack. (2026). Dozer / bulldozer 500-hour service procedure [Checklist template]. Retrieved from https://www.maptrack.com/templates/dozer-500-hour-service

Free to reuse with credit under a Creative Commons Attribution 4.0 licence. If you’d rather link straight to it, the page is https://www.maptrack.com/templates/dozer-500-hour-service.

Need to schedule and track maintenance digitally, by date or meter reading?

Register every dozer in MapTrack, attach digital forms, and get a complete history of every inspection, service and compliance record.

Start free trialBook a demo

Maintenance and work orders · All templates · Pricing · Book a demo
