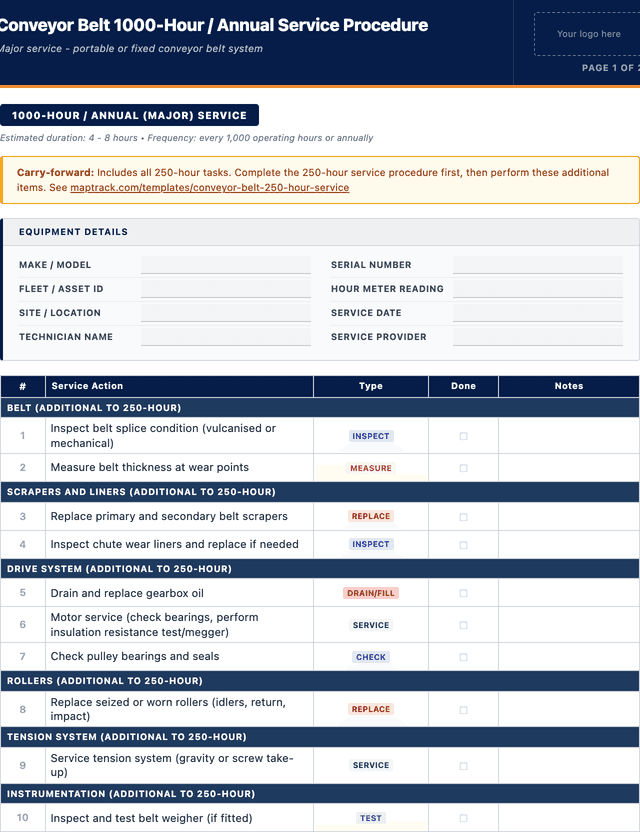

See the first part of the conveyor belt 1000-hour / annual service procedure below. Download the full version above.
What is a conveyor belt 1000-hour / annual service procedure?
A 1,000-hour or annual service is the major tier of scheduled preventive maintenance for a conveyor belt system. It is performed every 1,000 operating hours or at least annually, whichever comes first. The 1,000-hour service carries forward all 250-hour tasks (belt tension and tracking, roller and pulley inspection, scraper checks, motor and gearbox checks, bearing greasing, safety device testing) and adds more in-depth maintenance: replacing belt scrapers, draining and replacing gearbox oil, motor service (bearings, insulation resistance test), replacing seized or worn rollers, inspecting and testing the belt weigher, checking conveyor frame and foundations, inspecting electrical switchgear, testing alignment sensors, performing a full guarding audit, servicing the tension system, inspecting belt splice condition, measuring belt thickness at wear points, checking pulley bearings and seals, and inspecting chute wear liners. It is typically performed by a qualified fitter or maintenance technician and takes 4 to 8 hours.
Conveyor belt systems are classified as plant under the WHS Act 2011, and the PCBU has a duty to ensure that plant is maintained so it remains safe and without risks to health. AS 4024.3611:2015 (Safety of Machinery, Conveyors, Belt Conveyors for Bulk Materials Handling) and AS 1755:2000 (Conveyors, Safety Requirements) set out specific design, guarding and maintenance requirements for conveyor systems operating in Australia. Nip points at the head pulley, tail pulley, snub pulleys and return rollers must be guarded with interlocked guards that stop the conveyor when opened. The 1,000-hour service includes a full guarding audit to verify compliance with these standards. In mining and quarrying environments, state mining regulations may impose additional inspection and documentation requirements beyond the general WHS framework. Belt thickness measurement data collected at each 1,000-hour interval directly supports capital replacement planning, allowing maintenance managers to forecast belt changes during scheduled shutdowns rather than reacting to unplanned failures that halt production.
Learn more about maintenance and work orders in MapTrack.
Benefits of using this conveyor belt 1000-hour / annual service procedure
- Belt life forecasting: measuring belt thickness at wear points at 1,000-hour intervals lets you predict when the belt needs replacing and plan the change during a scheduled shutdown.
- Reduced unplanned downtime: replacing worn scrapers, seized rollers and servicing the gearbox on schedule prevents failures that stop production.
- Motor protection: insulation resistance testing and bearing checks at 1,000 hours catch motor issues before a burnout causes extended downtime.
- Structural integrity: checking the conveyor frame, supports and foundations for cracking or movement at annual intervals prevents catastrophic structural failure.
- Compliance: a full guarding audit and documented annual service records demonstrate that equipment is maintained to WHS and industry standards.
- Lower total cost of ownership: trending data from 250 and 1,000-hour services helps you optimise replacement intervals and reduce overall maintenance spend.
Benefits of digitising forms in MapTrack
When you digitise conveyor belt service procedures in MapTrack, you get:
- Field users can easily scan a QR code to complete a form on mobile. Unlimited users.
- Automatically get alerts when faults are identified.
- Link every form digitally as a PDF to the relevant asset, location or person.
- Receive a digital PDF copy with every submission to your email.
- Ability to share forms digitally.
- Build conditional logic (show or hide questions based on answers).
- Take pictures or attach photos. Not possible with a paper-based form.
- Electronic signatures.
- Edit forms later without reprinting.
- Restrict permissions (who can view, complete or approve).
- Build forms with AI (describe what you need and MapTrack suggests the form).
- Trigger work orders automatically when a fault is logged during an inspection.
- Track service intervals by hours, kilometres or calendar date in one place.
- Attach supplier invoices and parts receipts to each maintenance record.
Book a demo to see how MapTrack handles conveyor belt service procedures.
Try MapTrack free for 30 days
Full access to every feature. No credit card required. Per-asset pricing so you scale as your fleet grows.
- No credit card required
- 30 days free trial
- Cancel anytime
What to include in a conveyor belt 1000-hour / annual service procedure
This conveyor belt 1000-hour / annual service procedure covers 8 key areas:
- Belt: inspect belt splice condition (vulcanised or mechanical), measure belt thickness at wear points.
- Scrapers and liners: replace primary and secondary belt scrapers, inspect and replace chute wear liners if needed.
- Drive system: drain and replace gearbox oil, motor service (check bearings, insulation resistance test/megger), check pulley bearings and seals.
- Rollers: replace seized or worn rollers (idlers, return, impact).
- Tension system: service tension system (gravity or screw take-up).
- Instrumentation: inspect and test belt weigher (if fitted), test belt alignment sensors and switches.
- Electrical: inspect electrical switchgear, overloads and VSD (if fitted).
- Structural: check conveyor frame, supports and foundations for cracking or movement, full guarding audit (all guards fitted, labelled, interlocked).
How to use this conveyor belt 1000-hour / annual service procedure
- Complete the full 250-hour service procedure first (belt tension and tracking, roller inspection, scraper checks, motor and gearbox checks, bearing greasing, safety device testing). Use the 250-hour service checklist .: Sign off the 250-hour checklist before starting the 1,000-hour items. This includes belt tension adjustment, tracking check, roller spin test, scraper blade inspection, gearbox oil level check, bearing greasing and emergency stop testing.
- Isolate and lock out the conveyor. Inspect belt splice condition (vulcanised or mechanical). Measure belt thickness at key wear points and record readings.: Apply lockout/tagout to the motor isolator and verify zero energy. Inspect vulcanised splices for delamination, cracking or lifting edges. For mechanical splices, check each fastener for tightness and corrosion. Use an ultrasonic thickness gauge to measure belt cover thickness at the loading zone, discharge area and midspan.
- Replace primary and secondary belt scrapers. Inspect chute wear liners and replace if needed.: Remove the worn scraper blades and install new blades of the correct profile and material. Adjust the primary scraper to maintain contact across the full belt width. Inspect chute liners for holes or grooves that allow spillage and replace any section worn beyond its minimum thickness.
- Drain and replace gearbox oil with the correct grade (EP 220 or 320 per manufacturer). Check pulley bearings and seals.: Drain the gearbox while it is still warm for complete oil removal. Refill with the manufacturer-specified grade (typically EP 220 or EP 320) to the correct level on the sight glass or dipstick. Inspect drive and tail pulley bearings for temperature, noise and seal condition.
- Service the motor: check bearings, perform insulation resistance test (megger). Replace motor bearings if required.: Use a 500 V or 1000 V megger to test winding insulation resistance to earth on each phase. A reading below 1 megaohm per kV of rated voltage indicates degradation. Check motor bearing temperature and vibration. Replace bearings if vibration data or running hours warrant it.
- Replace any seized or worn rollers (idlers, return, impact). Service the tension system (gravity or screw take-up).: Spin each roller by hand and mark any that are seized, noisy or wobbling for replacement. Replace with rollers of the correct diameter, trough angle and bearing specification. For gravity take-up systems, check the counterweight is free to travel. For screw take-up, grease the screw threads and check for even tension on both sides.
- Inspect and test the belt weigher (if fitted). Test belt alignment sensors and switches.: Calibrate the belt weigher against known test weights per the manufacturer procedure. Check alignment sensors by manually misaligning the belt slightly and confirming the sensor triggers the alarm or shutdown. Reset the belt to correct alignment after testing.
- Inspect electrical switchgear, overloads and VSD (if fitted). Check conveyor frame, supports and foundations for cracking or movement.: Open the switchgear panel and inspect for signs of overheating, loose terminals or insect intrusion. Verify overload settings match the motor nameplate current. If a VSD is fitted, check for fault codes and verify the speed ramp settings. Walk the full length of the conveyor frame checking for cracking, bolt looseness or foundation movement.
- Perform a full guarding audit: confirm all guards are fitted, labelled and interlocked.: Check every guard at nip points (head pulley, tail pulley, return rollers, drive components) is in place, securely fastened and correctly labelled. Verify that interlocked guards trigger a conveyor shutdown when opened. Replace any damaged or missing guards before returning the conveyor to service.
- Remove isolation and run the conveyor. Check belt tracking under load, listen for abnormal noises and observe belt speed. Record any defects in the notes section. Set the next service due hours and sign off.: Remove lockout/tagout and start the conveyor empty first, then observe belt tracking under load. Listen for roller squealing, belt flapping or gearbox noise. Verify belt speed matches the design specification. Record all defects, measurements and parts replaced. Set the next 250-hour and 1,000-hour service dates.
In MapTrack, you can schedule and track maintenance digitally. Each submission is stored as a timestamped PDF against the asset record.
Get the free template
Enter your email above to download the full conveyor belt 1000-hour / annual service procedure as a PDF.
Back to download formHow often should you complete this service procedure?
The 1,000-hour major service should be performed every 1,000 operating hours or at least annually, whichever comes first. For conveyors running on a single shift (8-10 hours per day, 5 days per week), the 1,000-hour interval is reached in approximately six months. Conveyors running 24/7 will reach it in roughly six weeks.
Between major services, the 250-hour minor service covers belt tension, roller inspection, scraper checks, bearing greasing and safety device testing. Daily pre-start checks by the operator should cover belt tracking, unusual noise and visible damage. The 1,000-hour service data, particularly belt thickness measurements, feeds directly into capital planning for belt replacement, so consistent measurement at each interval is essential for accurate forecasting.
