What does CSA Z462 require for workplace electrical safety in Canada?

CSA Z462 requires employers to conduct an electrical hazard assessment before any worker approaches exposed energised conductors or circuit parts. The assessment must include a shock risk analysis to determine approach boundaries and a flash hazard analysis to determine the arc flash boundary and incident energy level. Based on the assessment, the employer must implement a hierarchy of risk controls starting with de-energisation as the preferred method. If energised work is necessary, an energised electrical work permit must be completed, appropriate PPE must be selected and workers must be qualified per CSA Z462 training requirements.

How often must CSA Z462 arc flash studies be updated?

CSA Z462 requires that the arc flash risk assessment be reviewed at intervals not exceeding five years. However, the assessment must also be reviewed whenever a major modification is made to the electrical system, such as changes to available fault current, protective device settings or equipment configuration. Additionally, a pre-task hazard assessment must be performed before each instance of work on or near exposed energised conductors. If an arc flash incident or near miss occurs, the assessment for the affected equipment should be reviewed immediately.

What is the difference between CSA Z462 and NFPA 70E?

CSA Z462 is the Canadian standard for workplace electrical safety, while NFPA 70E is the equivalent United States standard. Both standards address the same electrical hazards (shock, arc flash, arc blast) and use similar methodologies for hazard assessment, approach boundaries and PPE selection. CSA Z462 is harmonised with NFPA 70E and updated on a similar cycle, but CSA Z462 is the standard referenced by Canadian provincial OHS regulations. The approach boundary distances, PPE categories and incident energy calculation methods are substantially aligned between the two standards, though specific table values may differ slightly between editions.

Who is a qualified electrical worker under CSA Z462?

A qualified electrical worker under CSA Z462 is a person who has demonstrated skills and knowledge related to the construction and operation of electrical equipment and installations, has received safety training to identify and avoid the electrical hazards of the work, and has been assessed as competent for the specific task. This typically includes licensed electricians, electrical engineers and other workers who have completed CSA Z462 qualified worker training and can demonstrate practical competence. The employer must verify qualifications and maintain training records with dates and assessment outcomes.

When is an energised electrical work permit required under CSA Z462?

An energised electrical work permit is required under CSA Z462 whenever work will be performed on energised electrical equipment and de-energisation is not the selected risk control method. The permit must document the justification for not de-energising, the shock and arc flash hazard analysis results, the approach boundaries, the PPE requirements, the qualified workers authorised to perform the work, and the scope and limitations of the permitted work. The permit must be approved by a responsible manager before work begins. Work that involves only diagnostic testing or voltage measurement on energised equipment may be exempt from the full permit process but still requires a pre-task hazard assessment.

Is this CSA Z462 electrical safety checklist free?

Yes. Download and use this CSA Z462 electrical safety checklist at no cost. Open the file in your browser and use Print then Save as PDF for a paper copy. No MapTrack account is required. If you want digital electrical safety assessments on mobile with photo capture, arc flash study tracking, PPE compliance records and scheduled assessment reminders, MapTrack can do that. Book a demo to see how it works.

Free csa electrical safety checklist

Jump to download form ↓

Enter your email below to download this csa electrical safety checklist as a ready-to-use PDF.

Free CSA Z462 electrical safety checklist (PDF-ready). Covers arc flash risk assessment, approach boundaries, PPE selection and energised work permits. Download free.

Jarrod Milford

Commercial Director

Updated 3 May 2026

How to use: download the PDF, print or complete digitally on any device.

✓PDF format, ready to print or fill on screen
✓Use as-is or customise to suit your operation
✓Go digital in MapTrack for photos, alerts and audit trails

See template in action →

Download free PDF template

Trusted by teams across Australia and New Zealand

We respect your privacy. Unsubscribe anytime.

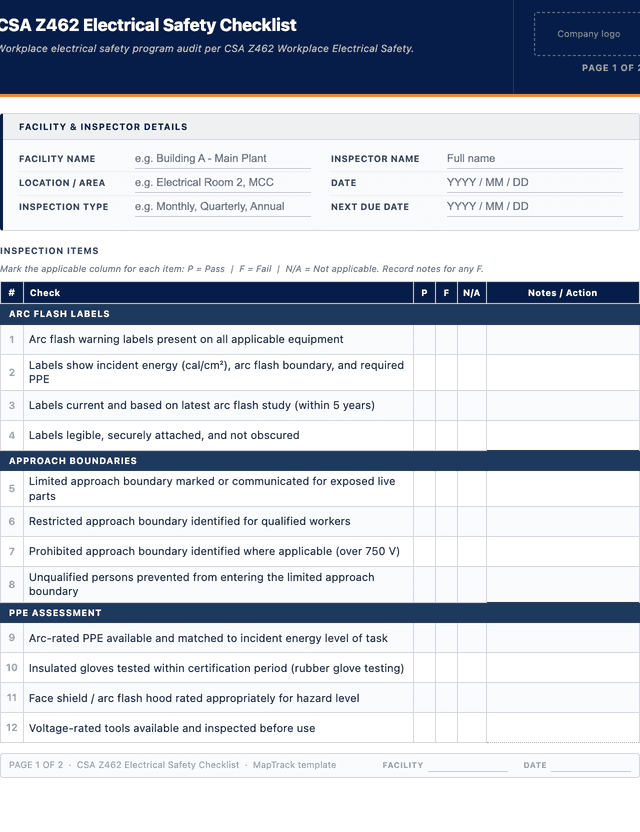

Preview the template

See the first part of the csa electrical safety checklist below. Download the full version above.

Download to get full template →

What is a csa electrical safety checklist?

A CSA electrical safety checklist is a structured document used to verify that workplace electrical safety practices comply with CSA Z462, the Canadian Standard for Workplace Electrical Safety. CSA Z462 establishes the requirements for protecting workers from electrical hazards including shock, arc flash and arc blast during the installation, inspection, operation, maintenance and demolition of electrical equipment. The standard is referenced by provincial occupational health and safety regulations across Canada, including Ontario Regulation 851 (Industrial Establishments), Alberta OHS Code Part 10 (Fire and Explosion Hazards) and British Columbia OHS Regulation Part 19 (Electrical Safety). This checklist covers shock risk assessment, arc flash risk assessment, approach boundary determination, PPE selection and inspection, energised electrical work permits, lockout/tagout verification, equipment labelling, training records and emergency response procedures. Electrical incidents remain among the most severe workplace injuries in Canada, with arc flash events capable of producing temperatures exceeding 19,000 degrees Celsius and blast pressures that can throw workers across rooms. CSA Z462 requires employers to conduct an electrical hazard assessment before any worker approaches exposed energised conductors or circuit parts, and to implement a hierarchy of risk controls starting with de-energisation as the default safe work practice. This checklist provides a repeatable, auditable framework that safety managers, qualified electrical workers and supervisors can use to verify compliance with CSA Z462 requirements before, during and after electrical work activities.

Learn more about compliance and inspections in MapTrack.

Benefits of using this csa electrical safety checklist

CSA Z462 compliance: documented assessments and permit records demonstrate that the employer has fulfilled the duty to assess electrical hazards, determine approach boundaries and select appropriate PPE before workers approach energised equipment.
Arc flash injury prevention: systematic verification of arc flash risk assessments, incident energy calculations, PPE category selection and approach boundary markings reduces the severity of arc flash injuries when incidents occur.
Shock hazard control: the checklist prompts verification of shock risk assessments, limited and restricted approach boundaries, insulated tools and voltage-rated gloves, ensuring multiple layers of protection against electrical contact.
Energised work justification: CSA Z462 requires documented justification for any work on energised equipment. The checklist includes the energised electrical work permit process, ensuring that de-energisation is always the first option considered.
Training verification: the checklist confirms that each worker performing electrical tasks holds current qualifications, has completed CSA Z462 awareness or qualified worker training, and has been assessed as competent for the specific task.
Provincial audit readiness: completed checklists with hazard assessments, PPE records, permit documentation and training verification provide the evidence required during provincial OHS compliance inspections and incident investigations.

Benefits of digitising forms in MapTrack

When you digitise electrical equipment checklists in MapTrack, you get:

Field users can easily scan a QR code to complete a form on mobile. Unlimited users.
Automatically get alerts when faults are identified.
Link every form digitally as a PDF to the relevant asset, location or person.
Receive a digital PDF copy with every submission to your email.
Ability to share forms digitally.
Build conditional logic (show or hide questions based on answers).
Take pictures or attach photos. Not possible with a paper-based form.
Electronic signatures.
Edit forms later without reprinting.
Restrict permissions (who can view, complete or approve).
Build forms with AI (describe what you need and MapTrack suggests the form).
Auto-apply the correct regulatory standard (OSHA, HSE, WHS) based on site location.
Generate region-specific compliance reports that match local regulator expectations.
Track jurisdiction-specific inspection intervals and certification requirements.

Book a demo to see how MapTrack handles electrical equipment checklists.

Try MapTrack free for 30 days

Full access to every feature. No credit card required. Per-asset pricing so you scale as your fleet grows.

Start free trial

No credit card required
30 days free trial
Cancel anytime

What to include in a csa electrical safety checklist

This csa electrical safety checklist covers 11 key areas:

Workplace and assessor details: facility name, location, department, assessor name, qualifications, date, assessment type (initial, periodic, pre-task, post-incident).
Shock risk assessment: nominal voltage, shock hazard analysis, limited approach boundary, restricted approach boundary, prohibited approach boundary per CSA Z462 Table 2.
Arc flash risk assessment: incident energy analysis or arc flash PPE category method, arc flash boundary, available fault current, clearing time, working distance, incident energy level in cal/cm2 or PPE category.
Equipment labelling: arc flash warning labels present on all equipment, label data current and matching the most recent arc flash study, labels include incident energy or PPE category, limited and arc flash boundaries.
PPE selection and inspection: PPE selected matches the incident energy level or arc flash PPE category, arc-rated clothing and face shield in good condition, voltage-rated gloves tested within the required interval, insulated tools available.
Energised electrical work permit: permit completed and approved before any energised work, justification for not de-energising documented, shock and arc flash hazards identified, PPE specified, qualified workers listed, work scope defined.
Lockout/tagout verification: where de-energisation is selected, verify lockout/tagout procedures are followed per CSA Z462 Article 5.2, all energy sources identified and isolated, zero-energy verification performed.
Training and qualifications: each worker holds current CSA Z462 qualified worker or awareness training, training records signed and dated, competency assessment completed for the specific task.
Emergency response: electrical-specific emergency response plan in place, rescue equipment (hot sticks, insulated rescue hooks) accessible, first aiders trained in electrical burn and cardiac arrest response, AED available.
Defect register: item number, equipment or practice, defect or non-compliance description, CSA Z462 clause reference, severity, corrective action required.
Sign-off: assessor signature, qualifications, overall compliance status, next assessment date.

How to use this csa electrical safety checklist

Record the facility details, electrical equipment scope and your qualifications before beginning the assessment.: Enter the facility name, location, department and the specific equipment or work area being assessed. Record your name, qualifications (e.g. licensed electrician, CSA Z462 qualified worker, safety professional) and the reason for the assessment (initial, periodic, pre-task or post-incident). Note the date and the applicable CSA Z462 edition. Gather the most recent arc flash study report, single-line diagrams, equipment nameplate data and previous assessment records.
Conduct the shock risk assessment: determine nominal voltages, identify exposed energised conductors and calculate approach boundaries.: For each piece of electrical equipment in scope, identify the nominal system voltage and whether the conductors or circuit parts will be exposed during the planned work. Using CSA Z462 Table 2, determine the limited approach boundary, restricted approach boundary and prohibited approach boundary for the voltage level. Verify that approach boundaries are marked or communicated to all workers. Check that voltage-rated gloves of the correct class are available and have been tested within the required interval (typically every six months for gloves in use).
Conduct the arc flash risk assessment: verify incident energy calculations, PPE category selection and arc flash boundary for each piece of equipment.: Confirm that an arc flash risk assessment has been completed for each piece of equipment per CSA Z462 Article 4.1.5, using either the incident energy analysis method or the arc flash PPE category method. Verify the available fault current, protective device clearing time and working distance used in the calculations. Check that the incident energy level or PPE category is displayed on the equipment label and matches the most recent arc flash study. Confirm the arc flash boundary distance. If the arc flash study is more than five years old or a major electrical modification has been made, flag the study for update.
Verify PPE selection, energised work permits, lockout/tagout procedures and training records for all workers in scope.: For each worker, confirm that the selected PPE matches the incident energy level or PPE category for the equipment they will work on. Inspect arc-rated clothing, face shields, voltage-rated gloves and insulated tools for damage. If energised work is planned, verify that an energised electrical work permit has been completed, signed by the responsible manager and communicated to all workers. Where de-energisation is selected, verify that lockout/tagout procedures follow CSA Z462 Article 5.2 and that zero-energy verification has been performed. Check that each worker holds current CSA Z462 training and has been assessed as competent for the specific task.
Verify emergency response provisions, complete the defect register, determine overall compliance status and schedule the next assessment.: Confirm that an electrical-specific emergency response plan exists, that rescue equipment (hot sticks, insulated rescue hooks) is accessible near the work area, that designated first aiders are trained in electrical burn and cardiac arrest response, and that an AED is available within a reasonable distance. Document all findings in the defect register, including the CSA Z462 clause reference for each non-compliance. Assign corrective actions with responsible persons and target dates. Determine the overall compliance status (compliant, non-compliant with corrective actions, or stop work). Sign the assessment and record the next scheduled assessment date.

In MapTrack, you can digitise regulatory compliance forms for your region. Each submission is stored as a timestamped PDF against the asset record.

Get the free template

Enter your email above to download the full csa electrical safety checklist as a PDF.

Back to download form

How often should you complete this checklist?

CSA Z462 requires that electrical hazard assessments be reviewed at intervals not exceeding five years or whenever a major modification is made to the electrical system, whichever comes first. However, the pre-task hazard assessment required by Article 4.1 must be performed before each instance of work on or near exposed energised conductors or circuit parts. This means the comprehensive facility-wide arc flash study is reviewed every five years, while individual task-level assessments are conducted daily or as often as electrical work occurs. PPE should be inspected before each use for damage, contamination and arc-rating label legibility. Voltage-rated gloves must be electrically tested every six months if in use, or every twelve months if in storage, per CSA Z462 Article 4.3. Training must be refreshed at intervals not exceeding three years per CSA Z462 Article 1.4. After any electrical incident, near miss or arc flash event, a full reassessment of the affected equipment and work practices should be conducted before work resumes.

Frequently asked questions

What does CSA Z462 require for workplace electrical safety in Canada?: CSA Z462 requires employers to conduct an electrical hazard assessment before any worker approaches exposed energised conductors or circuit parts. The assessment must include a shock risk analysis to determine approach boundaries and a flash hazard analysis to determine the arc flash boundary and incident energy level. Based on the assessment, the employer must implement a hierarchy of risk controls starting with de-energisation as the preferred method. If energised work is necessary, an energised electrical work permit must be completed, appropriate PPE must be selected and workers must be qualified per CSA Z462 training requirements.
How often must CSA Z462 arc flash studies be updated?: CSA Z462 requires that the arc flash risk assessment be reviewed at intervals not exceeding five years. However, the assessment must also be reviewed whenever a major modification is made to the electrical system, such as changes to available fault current, protective device settings or equipment configuration. Additionally, a pre-task hazard assessment must be performed before each instance of work on or near exposed energised conductors. If an arc flash incident or near miss occurs, the assessment for the affected equipment should be reviewed immediately.
What is the difference between CSA Z462 and NFPA 70E?: CSA Z462 is the Canadian standard for workplace electrical safety, while NFPA 70E is the equivalent United States standard. Both standards address the same electrical hazards (shock, arc flash, arc blast) and use similar methodologies for hazard assessment, approach boundaries and PPE selection. CSA Z462 is harmonised with NFPA 70E and updated on a similar cycle, but CSA Z462 is the standard referenced by Canadian provincial OHS regulations. The approach boundary distances, PPE categories and incident energy calculation methods are substantially aligned between the two standards, though specific table values may differ slightly between editions.
Who is a qualified electrical worker under CSA Z462?: A qualified electrical worker under CSA Z462 is a person who has demonstrated skills and knowledge related to the construction and operation of electrical equipment and installations, has received safety training to identify and avoid the electrical hazards of the work, and has been assessed as competent for the specific task. This typically includes licensed electricians, electrical engineers and other workers who have completed CSA Z462 qualified worker training and can demonstrate practical competence. The employer must verify qualifications and maintain training records with dates and assessment outcomes.
When is an energised electrical work permit required under CSA Z462?: An energised electrical work permit is required under CSA Z462 whenever work will be performed on energised electrical equipment and de-energisation is not the selected risk control method. The permit must document the justification for not de-energising, the shock and arc flash hazard analysis results, the approach boundaries, the PPE requirements, the qualified workers authorised to perform the work, and the scope and limitations of the permitted work. The permit must be approved by a responsible manager before work begins. Work that involves only diagnostic testing or voltage measurement on energised equipment may be exempt from the full permit process but still requires a pre-task hazard assessment.
Is this CSA Z462 electrical safety checklist free?: Yes. Download and use this CSA Z462 electrical safety checklist at no cost. Open the file in your browser and use Print then Save as PDF for a paper copy. No MapTrack account is required. If you want digital electrical safety assessments on mobile with photo capture, arc flash study tracking, PPE compliance records and scheduled assessment reminders, MapTrack can do that. Book a demo to see how it works.

Applicable regulatory standards

This template aligns with the following regulations and standards:

CSA Z462 (Workplace Electrical Safety)
Ontario Regulation 851 (Industrial Establishments, Section 42, Electrical Safety)
Alberta OHS Code Part 10 (Fire and Explosion Hazards)
British Columbia OHS Regulation Part 19 (Electrical Safety)
