What is a tractor maintenance checklist?
A tractor maintenance checklist is an interval-based maintenance document covering the recurring service tasks that keep an agricultural, civil or council tractor running reliably across daily, weekly, monthly and hour-meter intervals. Unlike a pre-start checklist (which only confirms the tractor is safe to start before a shift) and unlike a single 250 or 500 hour service procedure (which is a one-off workshop task at a specific meter reading), the maintenance checklist consolidates every routine task on a single planning document so the operator, farm mechanic or fleet maintainer can see what is due now and what is approaching across the asset.
For mixed fleets in agriculture, civil contracting, councils, parks and grounds operations, the maintenance checklist sits between the daily walk-around and the formal workshop service. It captures the lubrication, top-up, filter, belt, hose and pressure tasks that the manufacturer service schedule expects between major intervals, plus the safety-critical items (ROPS, PTO guard, seatbelt, brake balance) that owners must keep current under WHS Act 2011, WHS Regulations 2011 Chapter 5, AS 1636 (Tractors roll-over protective structures) and AS 2729 (Earth-moving machinery seat belts and seat belt anchorages). ASABE engineering practice ASAE EP456 also informs lubrication and torque intervals for agricultural plant. A completed checklist gives the operator a record they can hand to a supervisor, the workshop a planning input for parts and the owner the documented evidence required for warranty, insurance, plant compliance audits and resale value. Most field teams use it weekly during peak season and monthly during quieter periods, with the hour-meter columns guiding when to escalate to the 250 or 500 hour service.
Learn more about maintenance and work orders in MapTrack.
Benefits of using this tractor maintenance checklist
- Reliability through season: a structured interval-based checklist catches blocked filters worn belts and loose mounts before they cause a breakdown during planting harvest or council mowing peaks.
- Safety-critical coverage: every routine inspects ROPS seatbelt PTO guard and brake balance against AS 1636 and AS 2729 so the tractor stays a documented safe plant item under WHS Regulations.
- Hour-meter discipline: the checklist forecasts the next 50 250 and 500 hour service due points and triggers parts ordering and labour booking before the tractor sits idle waiting for a filter or oil.
- Warranty defence: a documented service history aligned to ASABE intervals and the manufacturer service book is the evidence dealers ask for on every warranty claim particularly for engine driveline and hydraulic components.
- Fuel and lubricant cost control: catching small leaks fouled air filters and low tyre pressure quickly avoids the 5 to 15 percent fuel and oil cost penalty that typically follows neglected routine maintenance on diesel tractors.
- Resale value uplift: an unbroken interval-based maintenance log routinely adds 10 to 20 percent to second-hand tractor pricing on auction or trade-in compared with an undocumented asset of the same hours.
Benefits of digitising forms in MapTrack
When you digitise tractor checklists in MapTrack, you get:
- Field users can easily scan a QR code to complete a form on mobile. Unlimited users.
- Automatically get alerts when faults are identified.
- Link every form digitally as a PDF to the relevant asset, location or person.
- Receive a digital PDF copy with every submission to your email.
- Ability to share forms digitally.
- Build conditional logic (show or hide questions based on answers).
- Take pictures or attach photos. Not possible with a paper-based form.
- Electronic signatures.
- Edit forms later without reprinting.
- Restrict permissions (who can view, complete or approve).
- Build forms with AI (describe what you need and MapTrack suggests the form).
- Trigger work orders automatically when a fault is logged during an inspection.
- Track service intervals by hours, kilometres or calendar date in one place.
- Attach supplier invoices and parts receipts to each maintenance record.
Book a demo to see how MapTrack handles tractor checklists.
Try MapTrack free for 30 days
Full access to every feature. No credit card required. Per-asset pricing so you scale as your fleet grows.
- No credit card required
- 30 days free trial
- Cancel anytime
1-2 days/week saved
“Bloody amazing! We used to spend 1-2 days a week tracking and managing our generators alone.”
Steve McAllister
Asset Coordinator, Saunders International

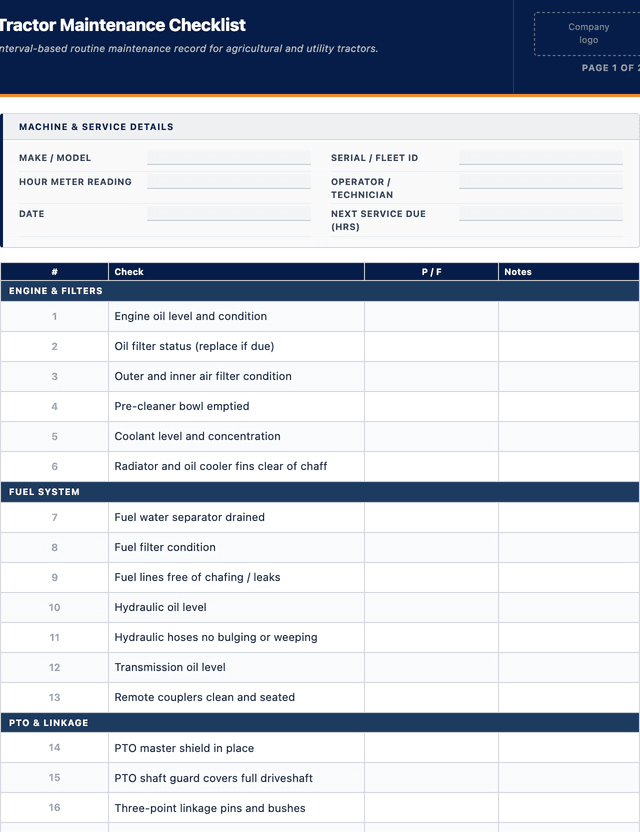

What to include in a tractor maintenance checklist
This tractor maintenance checklist covers 10 key areas:
- Tractor identification: make model serial number fleet ID current hour meter reading attached implement and operator or technician name.
- Engine and lubrication: oil level and condition oil filter status air pre-cleaner bowl outer and inner air filter coolant level concentration and radiator core cleanliness.
- Fuel system: fuel water separator drain fuel filter condition fuel line chafing and tank cap seal integrity.
- Hydraulic and transmission: hydraulic and transmission oil levels filter status hose chafing or weeping fittings and remote coupler condition.
- PTO and three-point linkage: PTO shaft and shield condition guard fastening top link lower link pins and bushes grease applied to all linkage points.
- Brakes and ROPS: service brake equality and free play park brake holding capacity ROPS frame condition mount bolt torque and seatbelt webbing.
- Tyres wheels and steering: tyre pressure against ballast condition cuts and stubble damage wheel nut torque tie rod end play and steering cylinder leaks.
- Electrical and operator station: battery terminals electrolyte all lights indicators work lights horn cab filter condition and mirrors.
- Defect register: defect description severity responsible person target date and follow-up service required (250 hour 500 hour workshop).
- Sign-off: operator and supervisor signatures date and next service due hours.
How to use this tractor maintenance checklist
- Confirm the tractor is parked safe and capture identification at the top of the form: park on firm level ground engage the park brake lower the three-point linkage and any loader bucket to the ground shut down the engine and record make model serial fleet ID current hour meter implement and operator name.
- Work through the engine bay with the engine cool: check engine oil dipstick coolant expansion tank hydraulic sight glass and fuel level inspect the outer and inner air filter empty the pre-cleaner bowl drain the fuel water separator and inspect fan and alternator belts for cracks glazing and tension.
- Inspect the driveline and lift gear: trace each hydraulic hose for chafing bulging and weeping at fittings check transmission and front axle oil levels confirm the PTO master shield and implement shaft guard cover the full driveshaft and verify three-point linkage pins bushes and lift arm operation greasing every nipple.
- Verify safety-critical items: visually inspect the ROPS frame for cracks bends or impact damage check each mounting bolt torque against the manufacturer specification test the seatbelt retractor lock and webbing balance the service brakes left and right confirm the park brake holds and test all lights indicators work lights and horn.
- Start the tractor at operating temperature run a hydraulic and PTO cycle and document findings: monitor oil pressure and coolant temperature gauges engage and disengage the PTO cycle the three-point linkage and any remote valves through their full range record every defect against severity and responsible person and forecast the next 250 and 500 hour service due hours.
In MapTrack, you can schedule and track maintenance digitally. Each submission is stored as a timestamped PDF against the asset record.
Get the free templateEnter your email above to download the full tractor maintenance checklist as a PDF.Back to download formHow often should you complete this checklist?
Tractor maintenance is best run on a tiered schedule that mirrors the manufacturer service book. A daily walk-around captures fluid leaks tyre damage and obvious defects before each shift. A full maintenance checklist should be completed weekly during peak operational periods (planting spraying harvest baling council mowing campaigns) and at least monthly during quieter seasons. Hour-meter triggers escalate the routine into a workshop service at 50 hours (initial check) 250 hours (minor service) and 500 hours (major service) per the typical agricultural and utility tractor schedule. ASABE engineering practice and AS 1636 anchor the safety-critical inspection cadence for ROPS PTO and seatbelt. Tractors operating in heavy dust (broadacre harvest baling earthworks) should have the air filter pre-cleaner emptied between formal services, and any tractor returning from a long idle period (off-season storage) should receive a full maintenance run before reuse. MapTrack hour-meter triggers can automate the 50 250 and 500 hour service due alerts against each tractor asset so nothing slips.
Frequently asked questions
Applicable regulatory standards
This template aligns with the following regulations and standards:
- WHS Act 2011
- WHS Regulations 2011 Chapter 5
- AS 1636-1996 (ROPS for tractors)
- AS 2729-2011 (seat belts and anchorages)
- ASABE ASAE EP456 (lubrication and torque intervals)
