What is included in a rough terrain forklift 500-hour service?

A rough terrain forklift 500-hour service is an intermediate service that carries forward all 250-hour tasks and adds transmission oil and filter change, full hydraulic oil and filter replacement with oil sampling, front and rear axle differential oil changes, fuel filter replacement, full brake lining measurement and adjustment, mast chain measurement or boom pin assessment, fork wear measurement including heel thickness, drive shaft universal joint inspection, ROPS/FOPS bolt torque check, and comprehensive electrical system inspection. It typically takes 3 to 5 hours depending on the machine configuration and the condition of components.

How often should a rough terrain forklift receive a 500-hour service?

A rough terrain forklift should receive a 500-hour intermediate service every 500 engine hours. For machines on standard single-shift construction sites, this interval arrives roughly every 12 to 20 weeks. High-utilisation machines on multi-shift sites may reach the interval in 8 to 12 weeks. The 250-hour minor service must still be performed at its own interval between 500-hour services. Daily pre-start checks are required before each shift. Always refer to the manufacturer service manual for your specific make and model.

What compliance standards apply to rough terrain forklift maintenance in Australia?

Rough terrain forklift maintenance in Australia must comply with the WHS Act 2011 and WHS Regulations 2011 (Chapter 5), which require that plant is maintained in a safe condition with documented records. AS 2359 (Powered Industrial Trucks) covers fork inspection criteria (including heel thickness discard limits), mast chain assessment and brake testing requirements. If the forklift is used on a construction site, the PCBU must also comply with WHS Regulations Chapter 6 (Construction Work) regarding plant maintenance. Operators must hold a valid forklift High Risk Work Licence. Documented service records are critical for insurance claims and regulatory investigations.

Why is fork heel thickness measurement important at the 500-hour service?

Fork heel thickness measurement is a critical safety check because the fork heel, where the blade meets the shank, carries the highest bending stress when lifting loads. Over time, wear, corrosion and impact damage reduce the heel cross-section. AS 2359 and most manufacturers specify that forks must be removed from service when heel thickness is reduced to 90 per cent of the original manufactured thickness. A fork that fails at the heel can drop the load without warning. Measuring at the 500-hour interval ensures forks approaching the discard limit are identified and replaced before catastrophic failure occurs.

Free rough terrain forklift 500-hour service

Jump to download form ↓

Enter your email below to download this rough terrain forklift 500-hour service as a ready-to-use PDF.

Free rough terrain forklift 500-hour service checklist (PDF-ready). Transmission oil, hydraulic oil change, axle service, brakes and full fork inspection.

Jarrod Milford

Commercial Director

Updated 3 May 2026

How to use: download the PDF, print or complete digitally on any device.

✓PDF format, ready to print or fill on screen
✓Use as-is or customise to suit your operation
✓Go digital in MapTrack for photos, alerts and audit trails

See template in action →

Download free PDF template

Trusted by teams across Australia and New Zealand

We respect your privacy. Unsubscribe anytime.

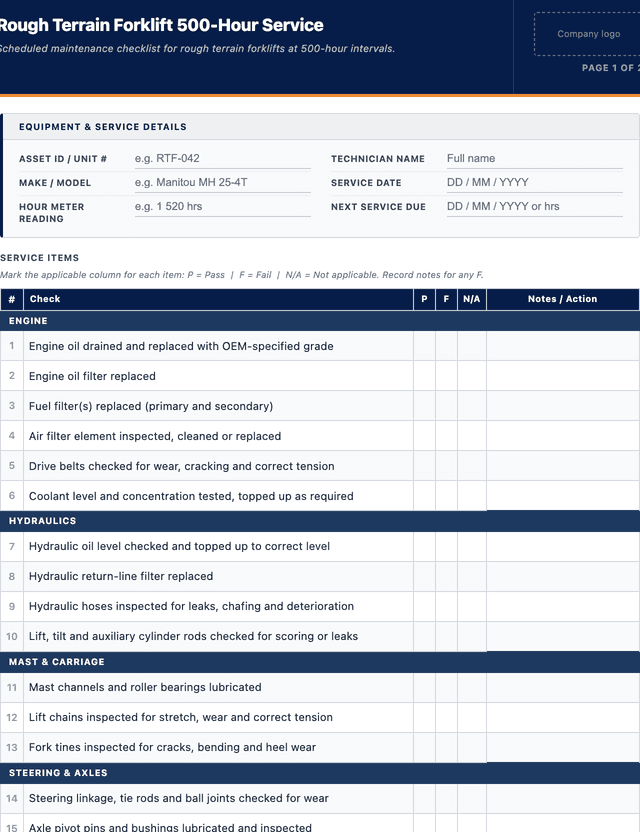

Preview the template

See the first part of the rough terrain forklift 500-hour service below. Download the full version above.

Download to get full template →

What is a rough terrain forklift 500-hour service?

A 500-hour service is the second tier of scheduled preventive maintenance for a rough terrain forklift (also called an all-terrain forklift or straight-mast telehandler). It is performed every 500 engine hours and is classified as an intermediate service. The procedure carries forward all 250-hour minor service tasks and adds transmission oil and filter change, full hydraulic oil and filter replacement, front and rear axle oil change, fuel filter replacement, full brake inspection and lining measurement, mast chain measurement and adjustment (chain-type) or boom pin and bush measurement (telehandler-style), drive shaft universal joint inspection and greasing, fork wear measurement including heel thickness and blade straightness, coolant system test, full electrical system inspection, ROPS/FOPS structural bolt torque check, and hydraulic oil sampling for laboratory analysis. This service is typically performed by a qualified heavy plant mechanic or authorised forklift service agent.

Rough terrain forklifts operate in environments that accelerate wear far more aggressively than standard warehouse operations. Construction sites, timber yards, rural properties and mining support areas expose these machines to dust, mud, uneven ground, impact loading and wide temperature variations. The 500-hour service addresses the fluid and component replacement cycles that fall beyond the 250-hour minor interval. Transmission oil, which manages the stress of gear shifts, torque converter operation and four-wheel drive engagement over rough ground, requires replacement at this point. Axle differential oils, which protect the gears and limited-slip mechanisms critical for traction on slopes and soft surfaces, are also renewed. Completing the 500-hour service on schedule prevents the cascading failures that occur when contaminated fluids degrade seals, bearings and gears simultaneously.

Learn more about maintenance and work orders in MapTrack.

Benefits of using this rough terrain forklift 500-hour service

Transmission protection: replacing transmission oil and the filter removes wear metals, moisture and thermal breakdown products that cause hard shifting, torque converter shudder and premature gear failure.
Hydraulic system renewal: full hydraulic oil and filter change removes fine contamination that accumulates beyond the capacity of in-line filtration, protecting the pump, control valves and cylinder seals.
Axle longevity: draining and replacing front and rear axle differential oils prevents gear pitting, bearing failure and limited-slip clutch pack degradation caused by contaminated or degraded lubricant.
Brake safety: full brake lining measurement and adjustment ensures the forklift can stop safely when carrying rated loads on slopes and rough ground, which is critical for preventing tip-over and runaway incidents.
Fork integrity: measuring fork heel thickness, blade wear and straightness at the 500-hour interval identifies forks that are approaching discard criteria before they fail under load.
Compliance and resale: documented 500-hour services satisfy WHS plant maintenance obligations, support insurance claims and significantly increase the machine resale value.

Benefits of digitising forms in MapTrack

When you digitise rough terrain forklift service procedures in MapTrack, you get:

Field users can easily scan a QR code to complete a form on mobile. Unlimited users.
Automatically get alerts when faults are identified.
Link every form digitally as a PDF to the relevant asset, location or person.
Receive a digital PDF copy with every submission to your email.
Ability to share forms digitally.
Build conditional logic (show or hide questions based on answers).
Take pictures or attach photos. Not possible with a paper-based form.
Electronic signatures.
Edit forms later without reprinting.
Restrict permissions (who can view, complete or approve).
Build forms with AI (describe what you need and MapTrack suggests the form).
Trigger work orders automatically when a fault is logged during an inspection.
Track service intervals by hours, kilometres or calendar date in one place.
Attach supplier invoices and parts receipts to each maintenance record.

Book a demo to see how MapTrack handles rough terrain forklift service procedures.

Try MapTrack free for 30 days

Full access to every feature. No credit card required. Per-asset pricing so you scale as your fleet grows.

Start free trial

No credit card required
30 days free trial
Cancel anytime

What to include in a rough terrain forklift 500-hour service

This rough terrain forklift 500-hour service covers 10 key areas:

Engine (carry-forward): drain and replace engine oil (15W-40), replace oil filter, replace outer air filter element, inspect inner element, drain fuel/water separator, check coolant level and hoses.
Fuel system: replace primary fuel filter element, inspect fuel lines and injector return lines, check fuel tank cap seal.
Transmission: drain and replace transmission oil (manufacturer-specified grade), replace transmission filter, inspect clutch operation and pedal free play.
Hydraulic system: drain and replace all hydraulic oil, replace hydraulic return and pressure filters, clean or replace hydraulic reservoir breather, take oil sample for laboratory analysis, inspect all hoses, cylinders and fittings.
Front and rear axles: drain and replace front and rear axle differential oil (80W-90 or 85W-140 typical), clean or replace axle breathers, inspect axle seals for leaks.
Mast / boom: measure mast chain elongation and adjust tension (chain-type units) or measure boom pivot pin clearances and bush condition (telehandler-style), inspect mast rollers or boom wear pads.
Forks and attachments: measure fork heel thickness (discard at 90 per cent of original), check fork blade straightness, inspect fork locking pins, inspect attachment and carriage condition.
Brakes: measure service brake lining thickness against minimum specification, inspect brake discs or drums, adjust brake pedal free play and equalisation, inspect park brake mechanism.
Drive shaft and steering: inspect drive shaft universal joints for play and grease, inspect steering cylinder seals and tie rod end play, check power steering fluid level.
Electrical and safety: test alternator output, inspect wiring harness for chafing, check all lights and work lights, test horn, reversing alarm and beacon, inspect ROPS/FOPS structure and bolt torque.

How to use this rough terrain forklift 500-hour service

Park the forklift on firm, level ground. Lower forks or attachment fully, engage the park brake, shut down the engine and allow fluids to settle before draining.: Position on a hard, level surface with adequate clearance underneath for transmission and axle oil drains. Lower forks flat to the ground and tilt the mast fully forward. Engage the park brake firmly, remove the ignition key and chock the wheels. Allow 15 to 20 minutes for oil to drain back from galleries, coolers and cylinders to the sumps.
Record the equipment details, hour meter reading and confirm all 250-hour carry-forward tasks are completed first.: Capture the forklift serial number, fleet ID, make, model, rated capacity, current attachment and the hour meter reading. Verify the previous 250-hour service was completed and review any outstanding defect items. Complete all 250-hour tasks (engine oil and filter, air filter elements, fuel/water separator, grease, basic inspections) before moving to the 500-hour specific items.
Drain and replace transmission oil and filter. Drain and replace all hydraulic oil and filters. Take a hydraulic oil sample for laboratory analysis.: Remove the transmission drain plug and allow oil to drain completely. Replace the transmission filter and refill with the manufacturer-specified grade to the correct level. For the hydraulic system, drain the reservoir and cycle all cylinders to expel old oil from the circuit. Replace hydraulic return and pressure filter elements. Clean or replace the reservoir breather cap. Take a 100 ml sample of the drained hydraulic oil in a clean bottle and submit for particle count, water content and wear metal analysis. Refill with the specified hydraulic oil.
Drain and replace front and rear axle differential oils. Clean or replace axle breathers and inspect axle seals.: Remove the drain plugs from both front and rear axle housings and allow the oil to drain fully. Inspect the drained oil for metal particles or a milky appearance (water contamination). Refill with the specified gear oil (typically 80W-90 or 85W-140) to the level plug. Clean or replace blocked axle breathers, as pressurised housings push oil past seals. Inspect all axle seals for leaks.
Measure mast chains and adjust tension (chain-type) or measure boom pivot pins and bush clearances (telehandler-style). Inspect mast rollers or boom wear pads. Measure fork heel thickness and blade straightness.: For chain-mast units, measure chain elongation against the manufacturer discard limit (typically 3 per cent). Adjust chain tension to achieve 10 to 15 mm deflection at the midpoint. For boom-type units, measure pivot pin diameters and bush internal diameters to calculate clearance. Inspect mast rollers for flat spots or excessive play, and boom wear pads for thickness. Measure fork heel thickness at the thinnest point and compare against the discard limit (90 per cent of original). Check each fork blade for bending using a straight edge.
Perform full brake inspection: measure lining thickness, inspect discs or drums, adjust pedal free play and equalisation, inspect park brake mechanism.: Measure service brake lining thickness and compare against the manufacturer minimum specification. Inspect brake discs for scoring, heat cracks or thickness variation. Adjust brake pedal free play to the specified range. Ensure both brake pedals, when locked together, provide equal braking effort. Inspect the park brake cable or mechanism for wear, stretching or corrosion. Test service brakes and park brake under load.
Inspect drive shaft universal joints, steering components and electrical system. Check ROPS/FOPS structural bolt torque. Replace the fuel filter.: Check drive shaft universal joints for play by rocking the shaft. Grease all U-joints and slip yoke splines. Inspect steering cylinder rod seals and tie rod end ball joints for play. Replace the primary fuel filter element. Test alternator output with a multimeter. Inspect the wiring harness for chafing. Torque-check ROPS/FOPS mounting bolts to the manufacturer specification.
Start the engine, run to operating temperature and check for leaks from all serviced systems. Cycle all functions, test brakes and record defects. Set the next service intervals.: Start the engine and monitor oil pressure, coolant temperature and charge indicators. Walk around checking for oil leaks from engine, transmission, hydraulic, and axle drain plugs and filter housings. Cycle the mast or boom, tilt, side-shift and steering through full range. Test service brakes and park brake. Record all defects with severity ratings and corrective actions. Calculate the next 250-hour and 500-hour service due points and update the cab sticker and fleet management system.

In MapTrack, you can schedule and track maintenance digitally. Each submission is stored as a timestamped PDF against the asset record.

Get the free template

Enter your email above to download the full rough terrain forklift 500-hour service as a PDF.

Back to download form

How often should you complete this service procedure?

A 500-hour intermediate service should be performed every 500 engine hours, which typically equates to every 12 to 20 weeks of standard site operation. For rough terrain forklifts in high-utilisation roles on multi-shift construction sites or busy timber yards, the interval may arrive every 8 to 12 weeks. The service carries forward all 250-hour tasks, so the 250-hour minor service is effectively absorbed into the 500-hour procedure when both intervals coincide.

Between 500-hour services, the 250-hour minor service must still be completed at its own interval. Daily pre-start checks should be performed by the operator before each shift. Machines operating in persistently wet, muddy or corrosive environments may benefit from more frequent axle breather checks and hydraulic oil sampling between major services. In MapTrack, configure meter-based maintenance triggers at 250-hour and 500-hour intervals so work orders are generated automatically as each forklift approaches its service threshold.

Frequently asked questions

What is included in a rough terrain forklift 500-hour service?: A rough terrain forklift 500-hour service is an intermediate service that carries forward all 250-hour tasks and adds transmission oil and filter change, full hydraulic oil and filter replacement with oil sampling, front and rear axle differential oil changes, fuel filter replacement, full brake lining measurement and adjustment, mast chain measurement or boom pin assessment, fork wear measurement including heel thickness, drive shaft universal joint inspection, ROPS/FOPS bolt torque check, and comprehensive electrical system inspection. It typically takes 3 to 5 hours depending on the machine configuration and the condition of components.
How often should a rough terrain forklift receive a 500-hour service?: A rough terrain forklift should receive a 500-hour intermediate service every 500 engine hours. For machines on standard single-shift construction sites, this interval arrives roughly every 12 to 20 weeks. High-utilisation machines on multi-shift sites may reach the interval in 8 to 12 weeks. The 250-hour minor service must still be performed at its own interval between 500-hour services. Daily pre-start checks are required before each shift. Always refer to the manufacturer service manual for your specific make and model.
What compliance standards apply to rough terrain forklift maintenance in Australia?: Rough terrain forklift maintenance in Australia must comply with the WHS Act 2011 and WHS Regulations 2011 (Chapter 5), which require that plant is maintained in a safe condition with documented records. AS 2359 (Powered Industrial Trucks) covers fork inspection criteria (including heel thickness discard limits), mast chain assessment and brake testing requirements. If the forklift is used on a construction site, the PCBU must also comply with WHS Regulations Chapter 6 (Construction Work) regarding plant maintenance. Operators must hold a valid forklift High Risk Work Licence. Documented service records are critical for insurance claims and regulatory investigations.
Why is fork heel thickness measurement important at the 500-hour service?: Fork heel thickness measurement is a critical safety check because the fork heel, where the blade meets the shank, carries the highest bending stress when lifting loads. Over time, wear, corrosion and impact damage reduce the heel cross-section. AS 2359 and most manufacturers specify that forks must be removed from service when heel thickness is reduced to 90 per cent of the original manufactured thickness. A fork that fails at the heel can drop the load without warning. Measuring at the 500-hour interval ensures forks approaching the discard limit are identified and replaced before catastrophic failure occurs.
What is the difference between a rough terrain forklift 250-hour and 500-hour service?: A 250-hour minor service focuses on engine oil and filter replacement, air filter inspection, fuel/water separator draining, fluid level checks, hydraulic hose inspection, basic grease service, tyre and brake checks, and safety device testing. A 500-hour intermediate service carries forward all 250-hour tasks and adds transmission oil and filter change, full hydraulic oil and filter replacement with laboratory oil sampling, front and rear axle oil changes, fuel filter replacement, brake lining measurement, mast chain or boom pin measurement, fork wear measurement, drive shaft inspection, ROPS/FOPS bolt torque check and comprehensive electrical inspection.

Applicable regulatory standards

This template aligns with the following regulations and standards:

AS 2359 (Powered Industrial Trucks)
WHS Act 2011
WHS Regulations 2011 Chapter 5
WHS Regulations 2011 Chapter 6 (Construction Work)
