Which regulatory standards require fire alarm panel inspections?

In Australia, AS 1851-2012 Section 3 defines the routine service requirements for fire detection and alarm systems, including the fire alarm control panel. In the United States, NFPA 72 Chapter 14 specifies inspection, testing and maintenance requirements for fire alarm control units and all connected circuits. In the United Kingdom, BS 5839 Part 1 covers fire detection and fire alarm systems for buildings, including panel maintenance schedules. Each standard prescribes specific frequencies for visual inspection, functional testing, battery testing, communication testing and detector sensitivity testing. The applicable standard depends on your jurisdiction, but all three share the same objective: ensuring the fire alarm panel and its connected systems are operationally ready at all times.

How often should a fire alarm panel be inspected?

The frequency depends on the standard and inspection type. AS 1851 requires monthly visual inspections and annual detailed inspections. NFPA 72 requires weekly visual checks, semi-annual battery load tests, and annual functional tests of all devices. BS 5839 requires weekly panel checks, monthly control equipment tests, quarterly zone and device testing, and an annual comprehensive inspection. For most Australian buildings, the practical minimum is a monthly visual check by the building manager and an annual comprehensive inspection by a licenced fire protection technician. Local fire authority requirements or building classification may increase these frequencies.

What emergency control functions should be tested during a fire alarm panel inspection?

A comprehensive panel inspection should verify all emergency control functions that the fire alarm panel is programmed to trigger on alarm. These typically include elevator recall to the designated floor, fire door hold-open device release, HVAC system shutdown to prevent smoke spread, smoke control or pressurisation system activation, and magnetic lock release on egress doors. Each function should be activated from the panel and physically confirmed at the device. Failures in emergency control functions can compromise evacuation routes and allow smoke migration, so they should be tested at least annually as part of the detailed inspection.

What is the difference between an addressable and a conventional fire alarm panel?

A conventional fire alarm panel divides the building into zones with multiple detectors wired on each zone circuit. When a detector activates, the panel identifies the zone but not the individual device. An addressable panel assigns a unique address to each detector, call point and module, allowing the panel to pinpoint the exact device location and report device-specific information such as sensitivity levels and fault diagnostics. Addressable systems provide faster fault isolation, easier maintenance and more detailed event logging. The inspection process covers similar subsystems for both types, but addressable panels support device-level sensitivity testing and automatic drift compensation reporting directly from the panel interface.

What battery tests are required for fire alarm panels and how often?

Battery testing includes measuring standby voltage on charge, measuring voltage under alarm load, checking charger output voltage and current, performing a mains-to-battery switchover test, and recording battery age. NFPA 72 requires a semi-annual battery load test. AS 1851 includes battery testing as part of the annual detailed inspection. Sealed lead-acid batteries typically require replacement every three to five years, depending on manufacturer guidance and load test results. Batteries that show significant voltage drop under load or have exceeded their recommended service life should be replaced regardless of the next scheduled test date.

Can fire alarm panel inspections be managed digitally instead of on paper?

Yes. Digital inspection platforms such as MapTrack allow you to build this checklist as a mobile form, schedule recurring inspections by panel and building, capture test readings with photos and timestamps, automatically flag overdue inspections, and generate compliance reports for fire authority inspections and insurance renewals. Digital records are searchable, shareable across your facilities management team and provide a complete audit trail. Book a demo to see how MapTrack helps you digitise fire protection compliance.

Free fire alarm panel inspection checklist

Jump to download form ↓

Enter your email below to download this fire alarm panel inspection checklist as a ready-to-use PDF.

Free fire alarm panel inspection checklist (PDF-ready). Panel power, battery load test, zone circuits and notification appliances. Digitise with MapTrack.

Last updated: 2026-04-28

Jarrod Milford

Commercial Director

Updated 28 April 2026

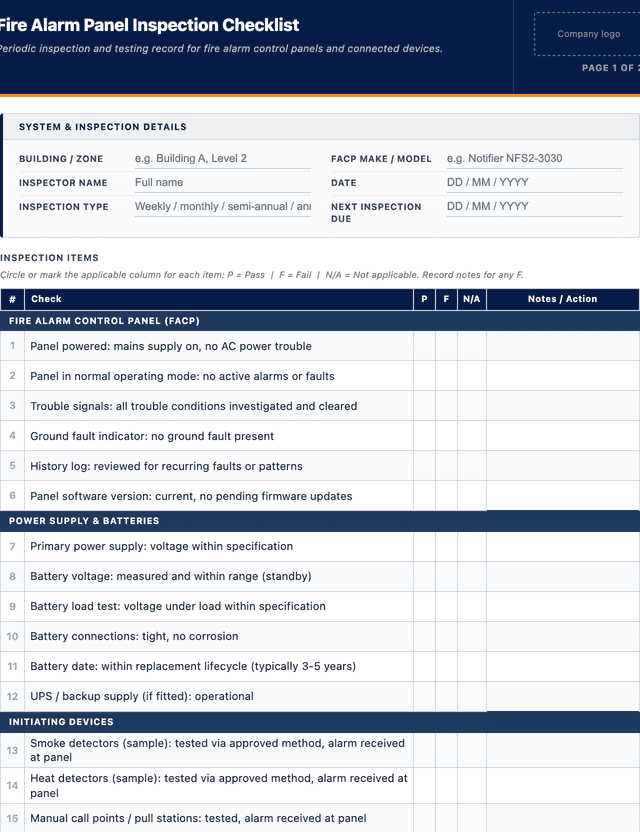

Fire Alarm Panel Inspection Checklist template preview

How to use: download the PDF, print or complete digitally on any device.

✓PDF format, ready to print or fill on screen
✓Use as-is or customise to suit your operation
✓Go digital in MapTrack for photos, alerts and audit trails

See template in action →

Download free PDF template

Trusted by teams across Australia and New Zealand

We respect your privacy. Unsubscribe anytime.

Preview the template

See the first part of the fire alarm panel inspection checklist below. Download the full version above.

Download to get full template →

What is a fire alarm panel inspection checklist?

A fire alarm panel inspection checklist is a structured document used to verify the operational readiness and regulatory compliance of fire alarm control and indicating equipment (FACIE) installed in commercial, industrial and residential buildings. The fire alarm panel serves as the central intelligence of a fire detection and alarm system, receiving signals from initiating devices such as smoke detectors, heat detectors and manual call points, processing alarm, trouble and supervisory conditions, activating notification appliances including horns and strobes, communicating alarm signals to off-site monitoring stations, and triggering emergency control functions such as elevator recall, fire door release and HVAC shutdown. This checklist guides inspectors through each critical subsystem of the panel so that every component is tested, every fault is recorded and every deficiency is addressed within a defined timeframe.

Fire alarm panel inspections are mandated under AS 1851-2012 Section 3 in Australia, NFPA 72 Chapter 14 in the United States, and BS 5839 Part 1 in the United Kingdom. Each standard prescribes specific inspection, testing and maintenance frequencies for the panel and its connected circuits. A fire alarm panel that is not routinely inspected may harbour undetected faults, such as a failed communication link to the monitoring station, a degraded battery that cannot sustain the system during a power outage, or a zone circuit that has been isolated and never restored. Any one of these conditions can render the entire fire detection system ineffective during a real fire event. The completed checklist provides auditable evidence of compliance for fire authority inspections, building occupancy certificates, annual fire safety statements and insurance renewal requirements.

Learn more about compliance and inspections in MapTrack.

Benefits of using this fire alarm panel inspection checklist

Regulatory compliance: demonstrates adherence to AS 1851 Section 3, NFPA 72 Chapter 14 or BS 5839 Part 1 panel inspection requirements with documented, date-stamped records for fire authorities and auditors.
System reliability: routine panel inspections detect display faults, zone circuit failures, communication link breakdowns, ground faults and battery degradation before they compromise the fire alarm system during an actual emergency.
Life safety assurance: a fully functional fire alarm panel ensures that detector signals are processed without delay, notification appliances alert all building occupants, and alarm signals reach emergency services through the monitoring station.
Insurance and certification documentation: completed panel inspection records satisfy insurer requirements for maintained fire alarm systems and support the annual fire safety statement process required in most Australian jurisdictions.
Fault resolution accountability: the defect register within the checklist assigns each identified fault to a responsible person with a target completion date, creating a clear chain of accountability for corrective maintenance.
Trend analysis and lifecycle planning: maintaining a historical log of panel inspections reveals recurring faults, identifies components approaching end of life and informs capital planning decisions for panel upgrades or replacements.

Benefits of digitising forms in MapTrack

When you digitise fire alarm panel checklists in MapTrack, you get:

Field users can easily scan a QR code to complete a form on mobile. Unlimited users.
Automatically get alerts when faults are identified.
Link every form digitally as a PDF to the relevant asset, location or person.
Receive a digital PDF copy with every submission to your email.
Ability to share forms digitally.
Build conditional logic (show or hide questions based on answers).
Take pictures or attach photos. Not possible with a paper-based form.
Electronic signatures.
Edit forms later without reprinting.
Restrict permissions (who can view, complete or approve).
Build forms with AI (describe what you need and MapTrack suggests the form).
Set recurring audit schedules with automatic reminders and escalation.
Produce regulator-ready PDF compliance packs in one click.
Track corrective actions from finding to close-out with full audit trail.

Book a demo to see how MapTrack handles fire alarm panel checklists.

Try MapTrack free for 30 days

Full access to every feature. No credit card required. Per-asset pricing so you scale as your fleet grows.

Start free trial

No credit card required
30 days free trial
Cancel anytime

What to include in a fire alarm panel inspection checklist

This fire alarm panel inspection checklist covers 13 key areas:

Building and panel identification: building name, address, panel manufacturer, model number, serial number, number of zones or loops, firmware or software version, date of last panel software update.
Inspector credentials: inspector name, licence or qualification number, fire protection company, inspection date, inspection type (weekly visual, monthly, quarterly, semi-annual or annual).
Panel power supply: mains power indicator status, circuit breaker labelling and lock-off, voltage measurement at panel terminals, dedicated circuit confirmation.
Battery backup: standby battery voltage on charge, battery voltage under load, charger output voltage and current, mains-to-battery switchover test result, battery age and replacement due date.
Trouble and supervisory signals: ground fault indicator status, trouble signal acknowledgement and reset, supervisory signal verification for sprinkler valve tamper and water flow switches.
Zone and loop circuits: each zone or loop tested for open circuit, short circuit and device communication, zone labels verified accurate and current, isolated points identified and justified.
Initiating devices: sample testing of smoke detectors, heat detectors and manual call points across representative zones, detector sensitivity within listed range.
Notification appliances: horn and strobe circuits activated and verified, audibility confirmed in all occupied areas including high-ambient-noise zones, visual notification coverage in required areas.
Annunciator and remote displays: graphic annunciator accuracy, remote annunciator communication, zone map accuracy.
Communication link to monitoring station: primary and secondary communication paths tested (PSTN, IP, cellular), test signal sent and acknowledged by the monitoring company, response time recorded.
Emergency control functions: elevator recall initiated and confirmed, fire door hold-open release tested, HVAC shutdown on alarm verified, smoke control system interface confirmed.
Defect register: fault description, affected zone or circuit, corrective action required, responsible person, target date, completion confirmation.
Sign-off: inspector certification with signature and date, building owner or facility manager acknowledgement with signature and date.

How to use this fire alarm panel inspection checklist

Record the building details, panel identification, inspector credentials and inspection type before beginning any testing.: Confirm the building name, address, panel manufacturer, model, serial number, zone or loop count and firmware version. Record your name, licence number, fire protection company and the date. Identify whether this is a weekly visual check, monthly service, quarterly or annual comprehensive inspection. Review the previous inspection report and note any outstanding defects that require follow-up verification during this visit.
Inspect the panel power supply, display, indicator LEDs and date/time settings to confirm normal operating condition.: Verify the mains power indicator is illuminated and the dedicated circuit breaker is labelled and accessible. Measure the supply voltage at the panel terminals. Check that the main display is legible and showing the normal operating condition. Perform a lamp test to confirm all LEDs illuminate. Confirm no fault, isolate, trouble or supervisory indicators are active unless previously documented and justified. Verify the panel date and time are correct, as event log timestamps and scheduled test functions depend on accurate time-keeping.
Test the battery backup system including voltage measurements, charger output, load test and mains-to-battery switchover.: Measure the standby battery voltage on charge and compare against the manufacturer specified range. Check the charger output voltage and current to confirm the batteries are charging correctly. Perform a battery load test by disconnecting mains power and measuring battery voltage after the panel has operated on battery for at least 60 seconds under alarm load. Verify the panel switches to battery without interruption to alarm processing or communication. Record battery age and flag any batteries that have exceeded three years of service or show voltage drop beyond the acceptable threshold for replacement scheduling.
Test zone and loop circuits by activating initiating devices on each zone, verifying panel registration and checking for open-circuit, short-circuit and ground fault conditions.: For each zone or addressable loop, trigger a smoke detector, heat detector or manual call point and verify the panel displays the correct zone number, device address, device type and location description. Check for any open-circuit or short-circuit fault indications on each circuit. Verify the ground fault indicator is clear. Confirm that zone labels on the panel faceplate and any graphic annunciator match the current building layout. Identify and document any isolated points, confirm the reason for isolation, and escalate long-standing isolations for restoration.
Test notification appliance circuits by activating horns, strobes and any voice alarm systems across the building.: Activate each notification appliance circuit from the panel and walk the building to confirm all horns and strobes are operating. Check audibility in all occupied areas, paying particular attention to high-ambient-noise environments such as plant rooms, kitchens and workshops. Verify visual notification coverage in areas where audible alarms alone may not be sufficient, such as hearing-impaired accommodation. If the building has a voice alarm system, test for message intelligibility in representative locations. Record any appliances that are missing, damaged, obstructed or inaudible.
Test the communication link to the off-site monitoring station and verify emergency control functions including elevator recall, fire door release and HVAC shutdown.: Initiate a test signal from the panel to the monitoring station via the primary communication path (PSTN, IP or cellular). Contact the monitoring company to confirm the signal was received, correctly identified and acknowledged within the expected timeframe. Test the secondary communication path if one is installed. Then test each emergency control function: activate elevator recall and confirm the elevator returns to the designated floor, release fire door hold-open devices and confirm doors close fully, trigger the HVAC shutdown relay and confirm the air handling system stops, and verify the smoke control system interface if installed.
Review the panel event log for alarm, fault, trouble and isolate events since the last inspection.: Print or scroll through the event log and review all entries since the previous inspection. Identify recurring faults, frequent false alarms from specific detectors or zones, isolations that have not been restored, and trouble conditions that were acknowledged but not resolved. Record findings on the checklist and ensure unresolved items are carried forward to the defect register with assigned owners and target dates.
Complete the defect register, present findings to the building owner or facility manager, and sign off the checklist.: For each defect found during the inspection, record the fault description, the affected zone, circuit or device, the corrective action required, the responsible person and a target completion date. Present all findings to the building owner or facility manager in a closing briefing. The inspector signs to certify the inspection was conducted in accordance with the applicable standard. The building owner or facility manager signs to acknowledge the results and accept responsibility for outstanding defects. File the completed checklist with the building fire safety records and the fire safety statement.

In MapTrack, you can automate compliance tracking and audit trails. Each submission is stored as a timestamped PDF against the asset record.

Get the free template

Enter your email above to download the full fire alarm panel inspection checklist as a PDF.

Back to download form

How often should you complete this checklist?

Fire alarm panel inspection frequencies vary by standard and jurisdiction. Under AS 1851-2012 Section 3, the fire alarm panel requires monthly visual inspection of the display, indicators and fault conditions, and an annual detailed inspection that includes zone testing, battery load testing, communication path testing and notification appliance testing. NFPA 72 Chapter 14 requires weekly visual inspection of the panel for normal condition, semi-annual battery load testing, annual functional testing of all initiating devices and notification appliances, and detector sensitivity testing within one year of installation and then every two years thereafter. BS 5839 Part 1 requires weekly checks of the panel for fault indications, monthly testing of control equipment, quarterly testing of a proportion of detection zones and devices, and annual comprehensive inspection and testing by a competent fire alarm engineer. Local fire authorities and building classifications may impose additional frequencies beyond the base standard requirements.

Frequently asked questions

Which regulatory standards require fire alarm panel inspections?: In Australia, AS 1851-2012 Section 3 defines the routine service requirements for fire detection and alarm systems, including the fire alarm control panel. In the United States, NFPA 72 Chapter 14 specifies inspection, testing and maintenance requirements for fire alarm control units and all connected circuits. In the United Kingdom, BS 5839 Part 1 covers fire detection and fire alarm systems for buildings, including panel maintenance schedules. Each standard prescribes specific frequencies for visual inspection, functional testing, battery testing, communication testing and detector sensitivity testing. The applicable standard depends on your jurisdiction, but all three share the same objective: ensuring the fire alarm panel and its connected systems are operationally ready at all times.
How often should a fire alarm panel be inspected?: The frequency depends on the standard and inspection type. AS 1851 requires monthly visual inspections and annual detailed inspections. NFPA 72 requires weekly visual checks, semi-annual battery load tests, and annual functional tests of all devices. BS 5839 requires weekly panel checks, monthly control equipment tests, quarterly zone and device testing, and an annual comprehensive inspection. For most Australian buildings, the practical minimum is a monthly visual check by the building manager and an annual comprehensive inspection by a licenced fire protection technician. Local fire authority requirements or building classification may increase these frequencies.
What emergency control functions should be tested during a fire alarm panel inspection?: A comprehensive panel inspection should verify all emergency control functions that the fire alarm panel is programmed to trigger on alarm. These typically include elevator recall to the designated floor, fire door hold-open device release, HVAC system shutdown to prevent smoke spread, smoke control or pressurisation system activation, and magnetic lock release on egress doors. Each function should be activated from the panel and physically confirmed at the device. Failures in emergency control functions can compromise evacuation routes and allow smoke migration, so they should be tested at least annually as part of the detailed inspection.
What is the difference between an addressable and a conventional fire alarm panel?: A conventional fire alarm panel divides the building into zones with multiple detectors wired on each zone circuit. When a detector activates, the panel identifies the zone but not the individual device. An addressable panel assigns a unique address to each detector, call point and module, allowing the panel to pinpoint the exact device location and report device-specific information such as sensitivity levels and fault diagnostics. Addressable systems provide faster fault isolation, easier maintenance and more detailed event logging. The inspection process covers similar subsystems for both types, but addressable panels support device-level sensitivity testing and automatic drift compensation reporting directly from the panel interface.
What battery tests are required for fire alarm panels and how often?: Battery testing includes measuring standby voltage on charge, measuring voltage under alarm load, checking charger output voltage and current, performing a mains-to-battery switchover test, and recording battery age. NFPA 72 requires a semi-annual battery load test. AS 1851 includes battery testing as part of the annual detailed inspection. Sealed lead-acid batteries typically require replacement every three to five years, depending on manufacturer guidance and load test results. Batteries that show significant voltage drop under load or have exceeded their recommended service life should be replaced regardless of the next scheduled test date.
Can fire alarm panel inspections be managed digitally instead of on paper?: Yes. Digital inspection platforms such as MapTrack allow you to build this checklist as a mobile form, schedule recurring inspections by panel and building, capture test readings with photos and timestamps, automatically flag overdue inspections, and generate compliance reports for fire authority inspections and insurance renewals. Digital records are searchable, shareable across your facilities management team and provide a complete audit trail. Book a demo to see how MapTrack helps you digitise fire protection compliance.
